98-05047

29

R0

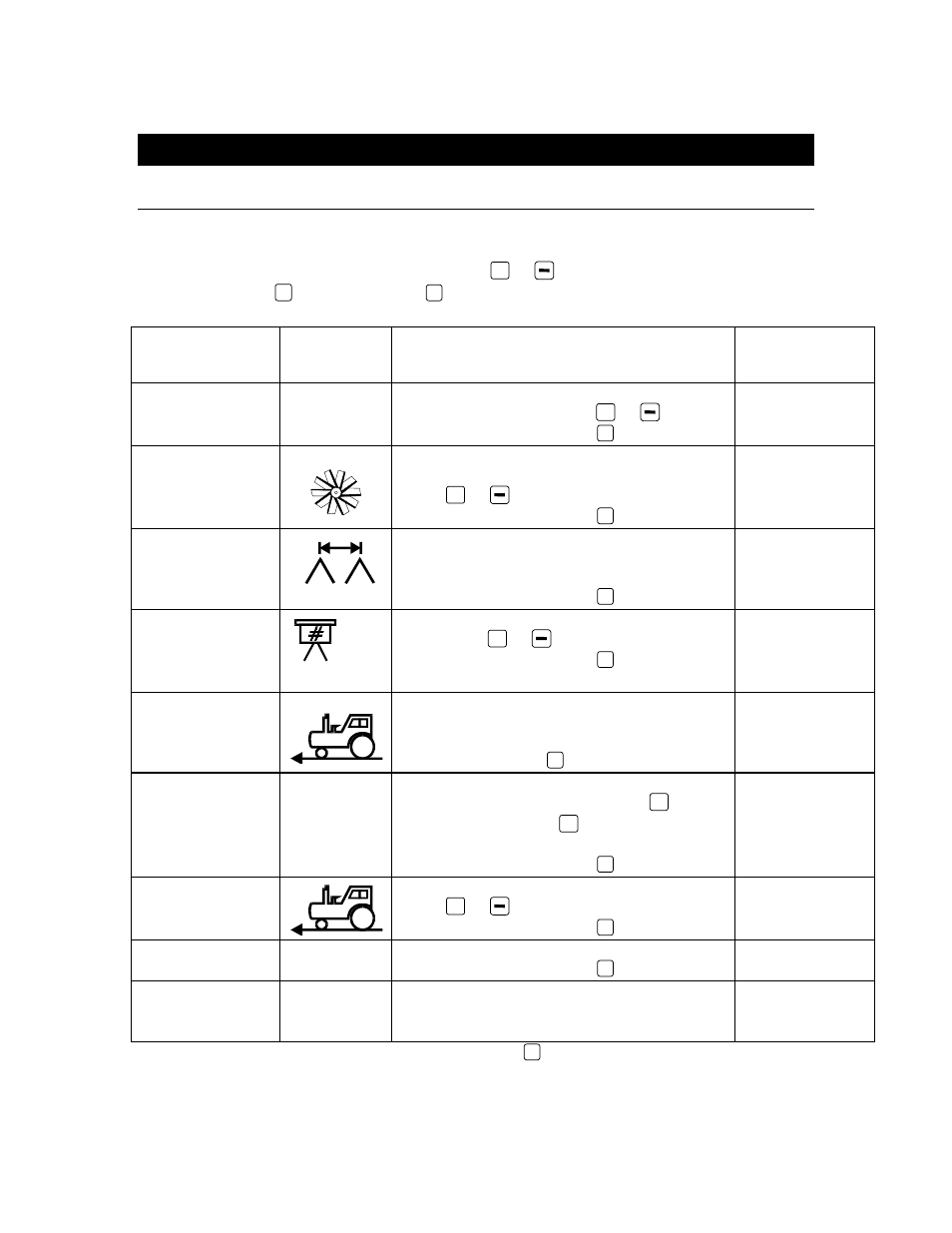

Quick Reference Guide


S

YSTEM

S

ETUP

M

ODE


• The Delivery switch must be off. Press

+

or keys

while simultaneously

pressing the

P

RO

key. Press the

P

RO

key again to enter the System Setup Mode.

Step Display

Description

My

Values

Units

US, INP

Select US or Imperial gallons for your
application units by using

+

or keys.

Proceed to next step with P

RO

key.

Flow Meter

Pulses

Flow Meter Pulses;
Value from flow meter label. Adjust by
using

+

or keys.

Proceed to next step with P

RO

key.

Nozzle Spacing

Nozzle (or row) spacing;
Distance between spray nozzles or micro
tubes in inches.
Proceed to next step with P

RO

key.

Tips per boom

section

SEC

1

# of tips or micro tubes on the machine.
Adjust with

+

or keys.

Proceed to next step with P

RO

key.

Speed

Calibration

Speed Calibration. Change with + and -, or
to auto calibrate press + and -
simultaneously to clear value, then drive
300 feet and press P

RO

.

Distance

Counter

Ft

Not a calibration step, but allows you to
measure distance in feet. Press

+

key to

start counting, press

+

key again to stop

counting.
Proceed to next step with P

RO

key.

Simulated Speed

Enter the desired simulated ground speed
using

+

or keys.

Proceed to next step with P

RO

key.

Communications

No con

Select the communications mode.
Proceed to next step with P

RO

key.

Minimum
Pressure

Min prs

Sets the minimum pressure to which the
controller will regulate. The controller will
not regulate below this pressure.

• To exit the System Setup mode, press and hold

P

RO

for 3 seconds at any point in

programming process.
