Chapter 2. Getting Started

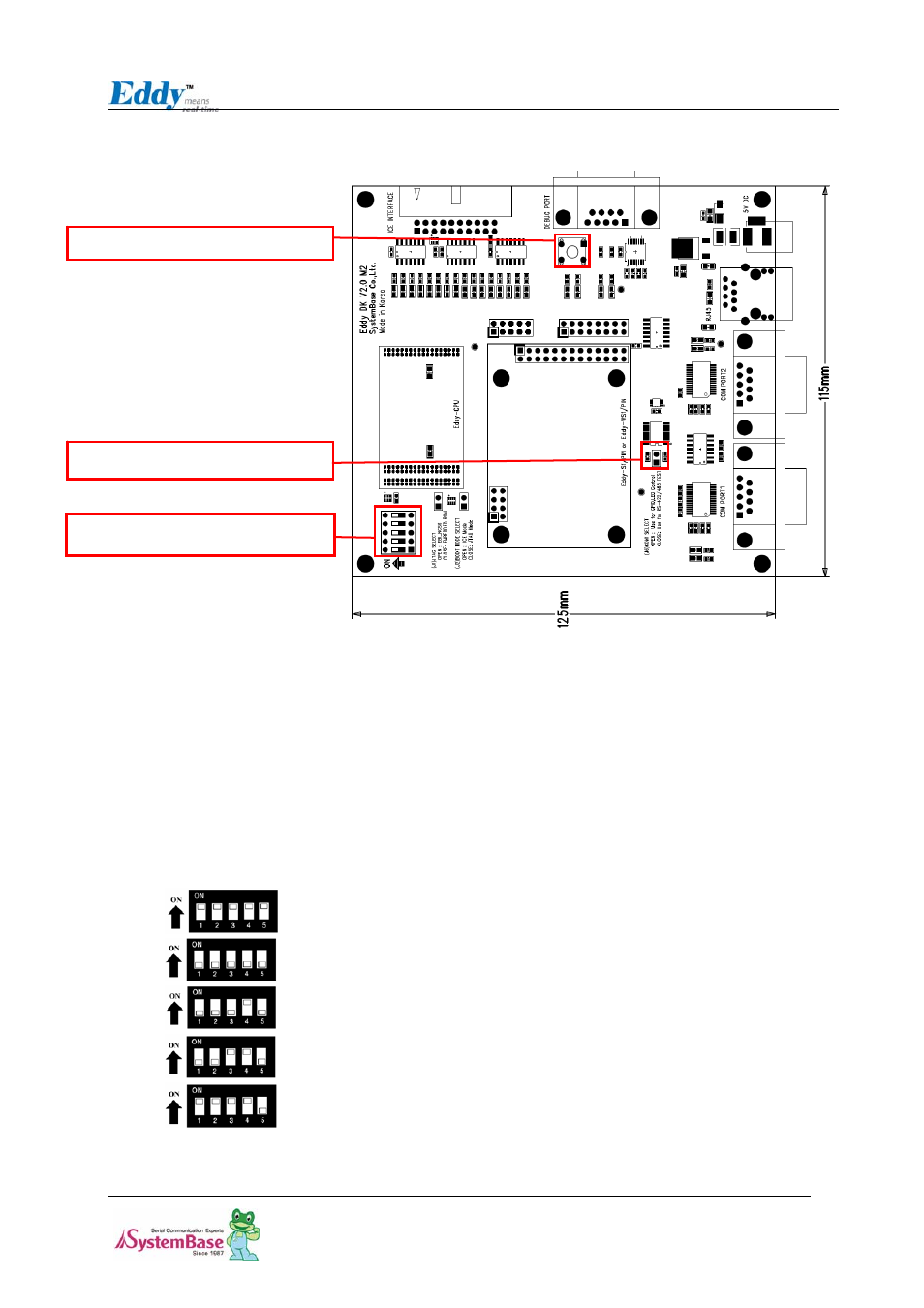

2.3.2 Description on switches
Product Setting Switch
COM1 Select Switch
Reset Switch
2.3.2.1. Reset Switch
Reboots the system.
2.3.2.2. Product Setting Switch
This switch is used when Eddy-CPU is mounted on the development board.to determine its behavior.
Product setting switch can be adjusted to make Eddy-CPU mounted development board operate as Eddy-CPU,
Eddy-S1/PIN,Eddy-S1/DB9.
This feature is to provide usage of Debug port, Status LED and RJ45 port on the development board for easier
testing and debugging.
Set as shown on the left and it will operate as Eddy-CPU.
Set as shown on the left and it will operate as Eddy-S1/PIN.
Set as shown on the left and it will operate as Eddy-S1/DB9.
Set as shown on the left and it will operate as Eddy-S2M/PIN
Set as shown on the left and it will operate as Eddy-DK-C .
