Slant Fin Corp. │ Installation and Operation Instructions CHS Series
10

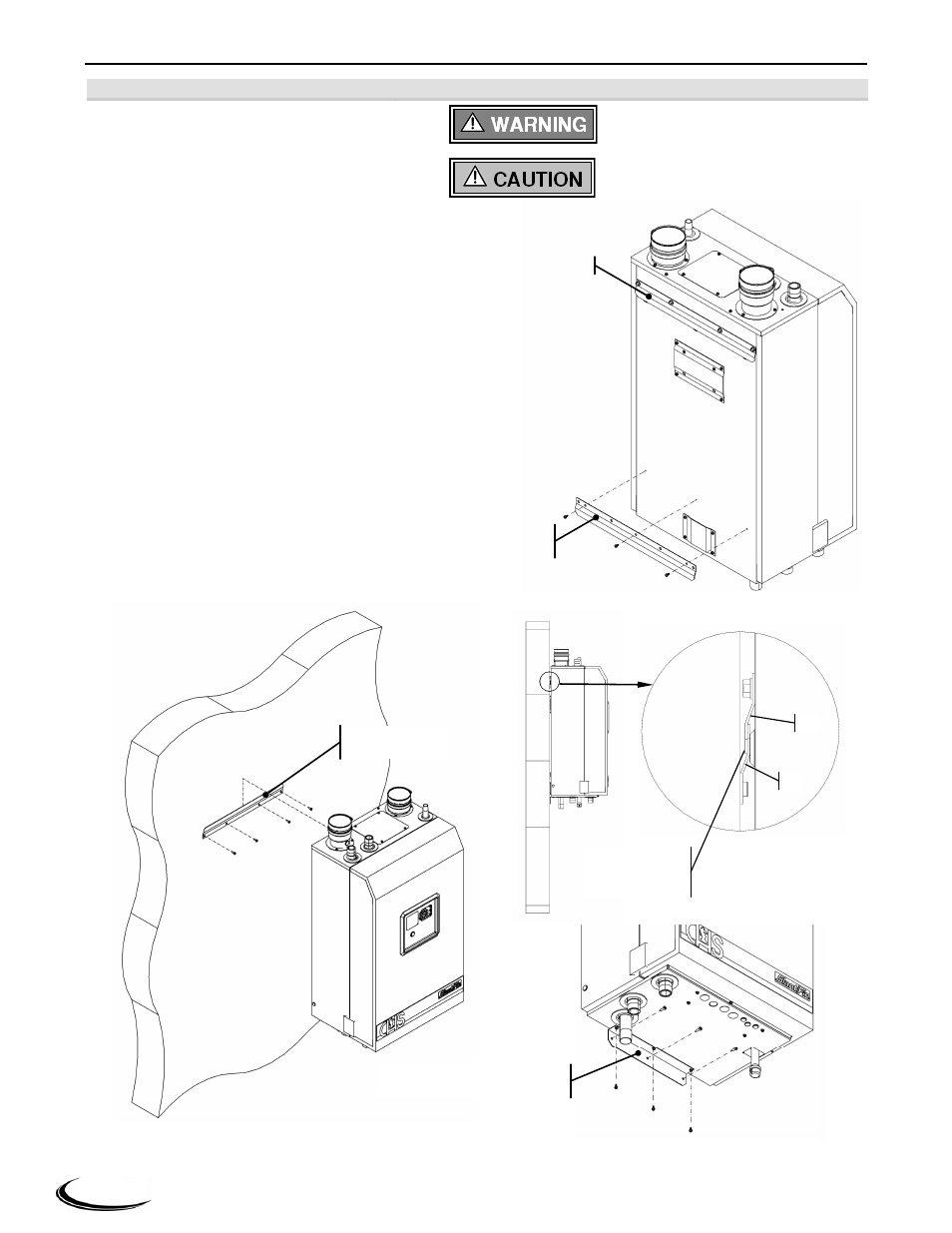

Figure 3-2 Wall Mounting Instructions

While leaving the Upper bracket (A) intact,
remove the Wall-mount bracket (B) attached
to the bottom-back of the appliance. Save the
mounting hardware for Step 4.

Secure the Wall-mount bracket (B), removed
from the bottom of the boiler in Step 1, to a
solid wall using field supplied lag screws
(anchors when mounting to a concrete wall)
that are adequate to support the weight of the
appliance (refer to Table 2-1 Specifications).
Ensure the Wall-mount bracket is mounted
level and flush to the wall with mounting holes
on the bottom, flange pointed upward and
angled away from the wall.

Mount the appliance to the wall by aligning the
Upper bracket (A) with the Wall-mount
bracket (B). Slide the Upper bracket down
over the wall mount bracket until it hooks.

Once the appliance is resting securely on the
Upper bracket, secure the Bottom bracket (C)
to the underside of the appliance using the
mounting hardware removed in Step 1; then,
anchor the bottom bracket to the wall as shown
using field supplied hardware.
Failure to follow instructions may
result in fire, serious injury, or death.
This unit requires two people to lift it
or damage and injury may result.
Upper bracket (A)
Wall-mount
bracket (B)



Wall-mount
bracket (B)

Wall Boiler
Ensure bracket
(A) fully inserts
into bracket (B)
(B)
(A)
Bottom bracket (C) shipped
with boiler package
