Model 5496 Intelligent Power Module Installation and Operation Manual
3-6 151276
3.4.2 Class B Supervised Wiring
Figure 3-6 shows how to wire for Class B output supervision. Use in/out wiring methods for
proper supervision. Refer to Section 4 for notification appliances that must be used with the
5496.
Class B Output Notification Circuits
Figure 3-6 shows four, 1.5 amp devices wired as Class B circuits.
Place a 4.7k ohm EOL resistor (provided) at the end of each circuit to enable supervision
when using all outputs as Class B notification appliance circuits. The 4.7k EOLs must be
wired to the terminals whether or not you are using all output terminals.

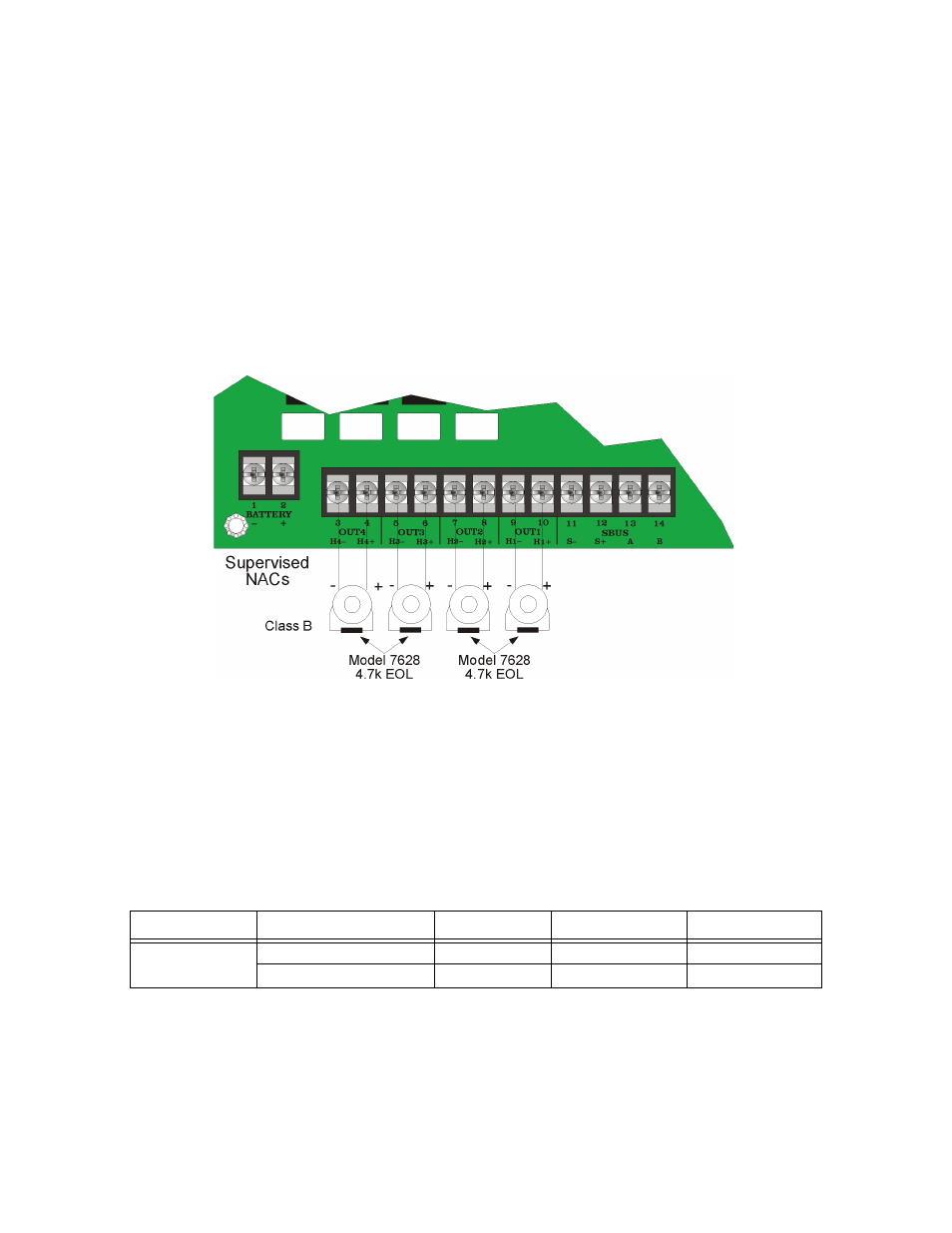

Figure 3-6 Regulated Class B Supervised Input/Output Connections
3.4.3 Releasing Operations
Approved releasing solenoids are list in Table 3-1 . Do not mix cross alarming zones with
smoke verification zones. There must be at least two automatic detection devices in each
protected space. Spacing must be reduced to 0.7 times the linear spacing in accordance with
NFPA 72.
Table 3-1: Approved Releasing Solenoids
Manufacturer Part Number Rating Current Freq
Asco T8210A107 24 VDC 3A max 0 Hz
8210G207 24 VDC 3A max 0 Hz
Power Limited
1.5
max
