3 connecting the 5496 to the facp, Connecting the 5496 to the facp -3, Cp (see section 3.3) – SilentKnight 5496 6A Intelligent Remote Power Supply User Manual
Page 15
Hardware Installation
151276
3-3
3.3
Connecting the 5496 to the FACP
1. Connect the 5496 to the appropriate SBUS. The 5496 is connected directly to a Silent
Knight addressable FACP.
2. Use the on-board dipswitch to assign an ID number to the 5496. (See Section 3.3.1) Figure
2-1 shows the location of the dipswitches on the 5496 board.
3. Configure the 5496 module by adding it to the system (through JumpStart or manually).
You can also assign a name to the module. These procedures are described in Silent
Knight addressable FACP Installation Manuals. Silent Knight Addressable FACP
Installation Manuals can be found on Silent Knight’s web site at www.silentknight.com.

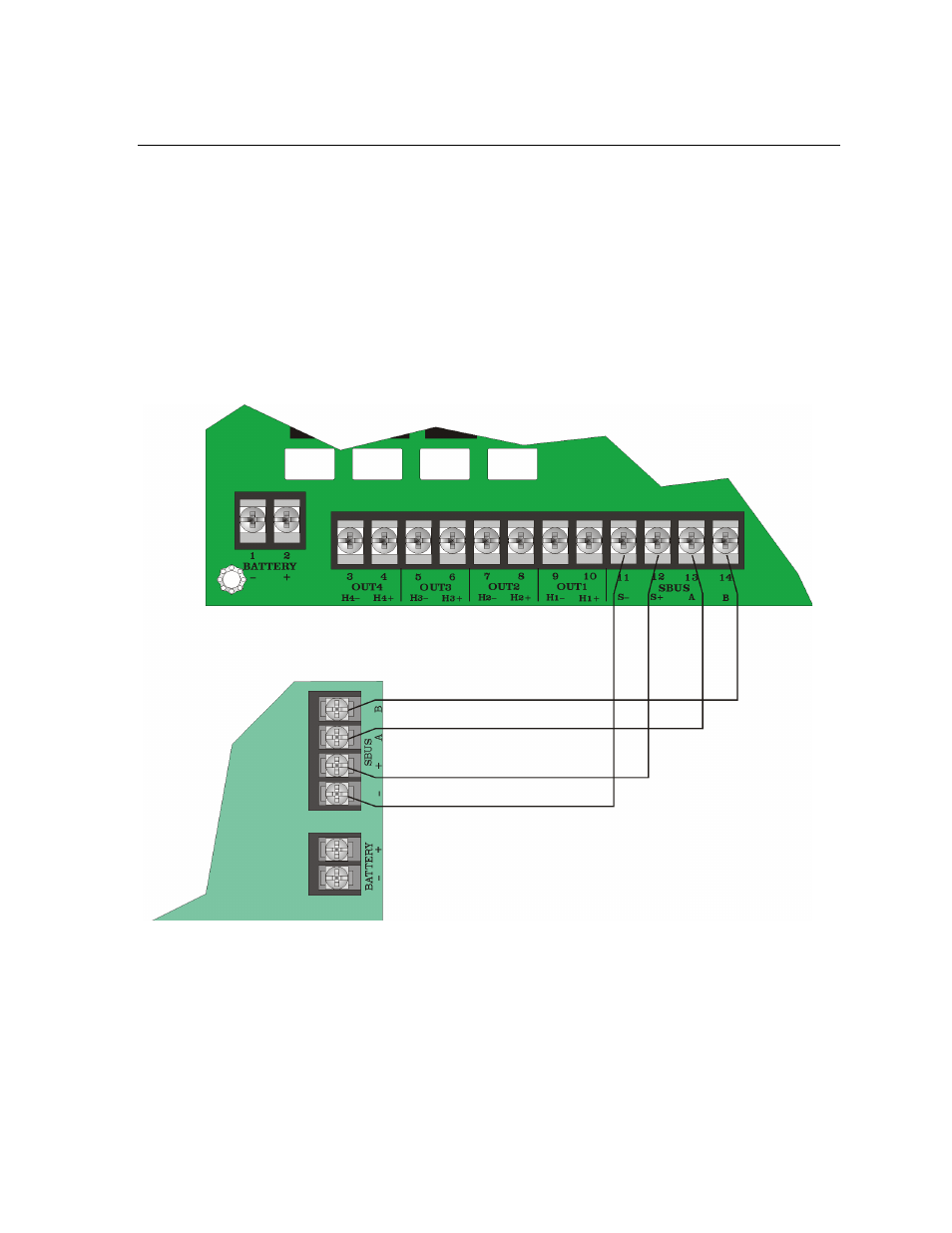

Figure 3-3 Class B 5496 Connection to FACP
5820XL
(Main SBUS)
5496 Board
Supervised
Power Limited
