Model 5496 Intelligent Power Module Installation and Operation Manual
3-4
151276
3.3.1
Setting the Device ID
All SBUS modules in the system must have a unique number (1-31) to identify them to the
FACP. Use the DIP switch on the 5496 board to set the module ID number. Figure 2-1 shows
the location of the dipswitch on the board. Figure 3-4 shows dipswitch setting and the
corresponding module ID numbers.

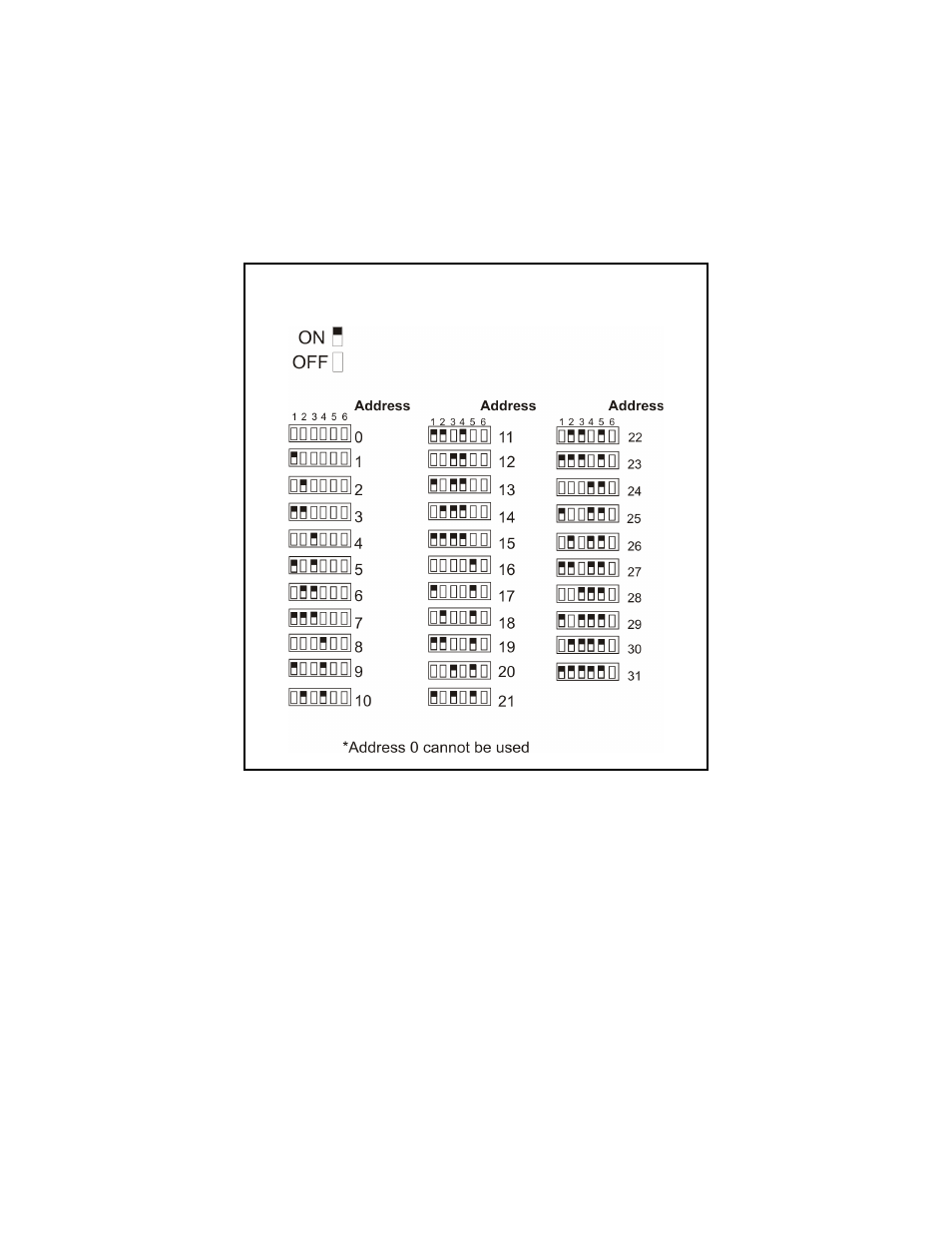

Figure 3-4 Possible Module Addresses
