Hardware Installation
151276 3-5
3.4 Notification Appliance Wiring
Note: Not all devices can use the Sync feature. Be sure to check Table A-1 in Appendix A to ensure the device
you have chosen will work with this feature.
3.4.1 Class A Supervised Wiring
Figure 3-5 shows how to wire for Class A output supervision. Use in/out wiring methods for
proper supervision. Refer to Section 4 for notification appliances compatible with the 5496.
Class A Output Notification Circuits
The configuration shown in Figure 3-5 shows two, 3-amp devices wired as Class A circuits.
When you are using the outputs as Class A circuits, loop the wiring back to the corresponding
circuit pair. For Class A wiring, no external EOL is necessary since it is built into the 5496
board.

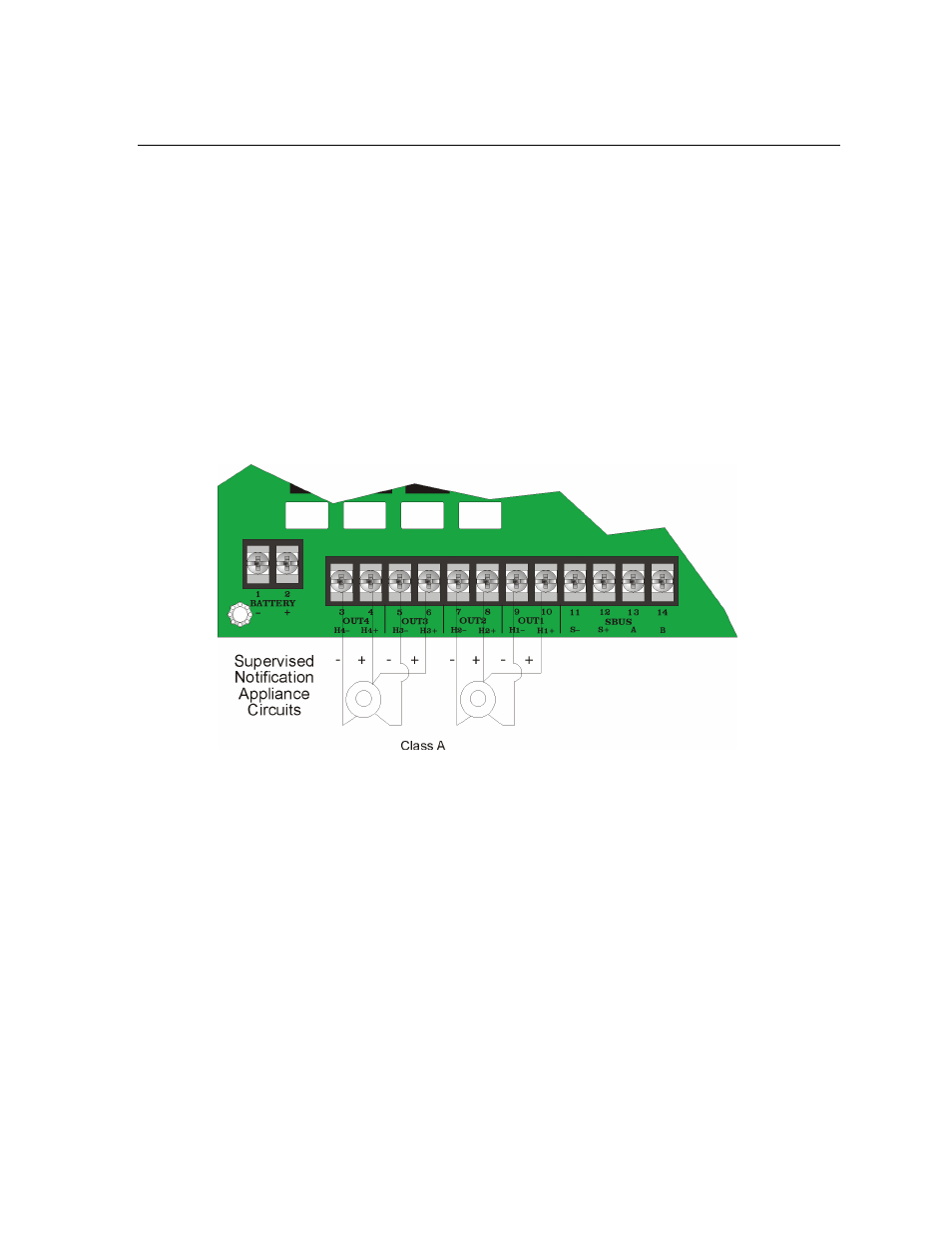

Figure 3-5 Class A Supervised Input/Output Connections
Power Limited
1.5
max
