Page 14
Model 5496 Intelligent Power Module Installation and Operation Manual
3-2
151276
3.2
Battery Connection
The 5496 battery charge capacity is 7.0 AH not to exceed 35.0 AH. Use 12V batteries of the
same AH rating. It is recommended that you replace batteries every five years. Determine the
correct AH rating per your current load calculation (see Table 2-4).
Note: If you require the power of back up batteries that are too large for the 5496, you can use the RBB cabinet.
The RBB Remote Battery Box, holds batteries up to the 35 AH size. (Refer to P/N 151306 for RBB instal-
lation instructions.
Wire batteries in series to produce a 24-volt equivalent. Do not parallel batteries to increase
the AH rating.

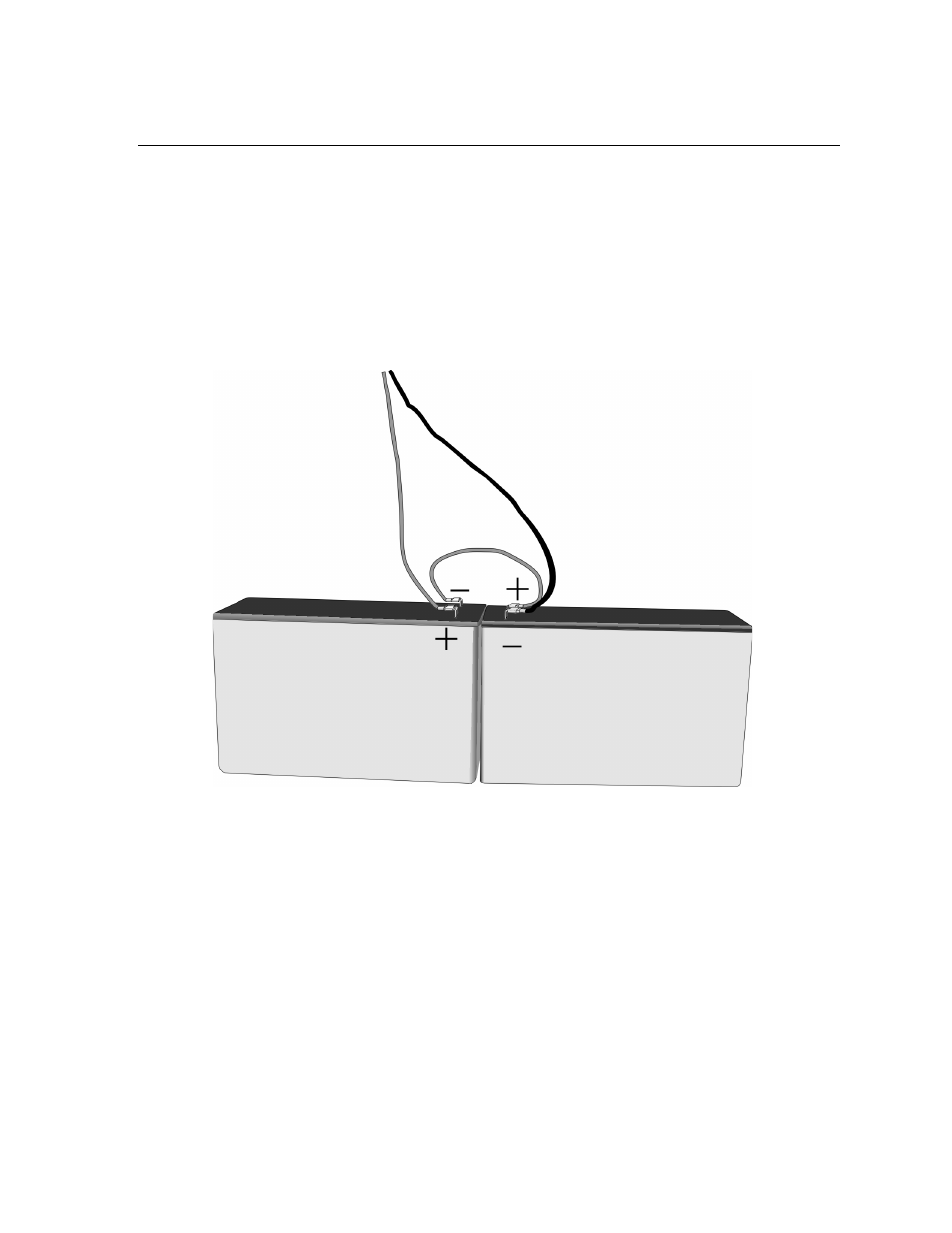

Figure 3-2 Battery Connection
Red
To Panel
Black
UL Listed 12V Battery
UL Listed 12V Battery
Battery Jumper
(P/N 140694)
Shipped With 5496
Supervised
Non-Power Limited
Replace batteries every 5 years.
Gell Cell
Gell Cell
