Form P-UD, P/N 270285R4, Page 7
CODE 25 -
Stepdown
Transformer Kits
(Same as Options
CG1, CG2, CG4)
NOTE: For stepdown
transformer for UDBP
or UDBS with 460V or
575V, see CODE 11,
page 6.
Stepdown
Transformer

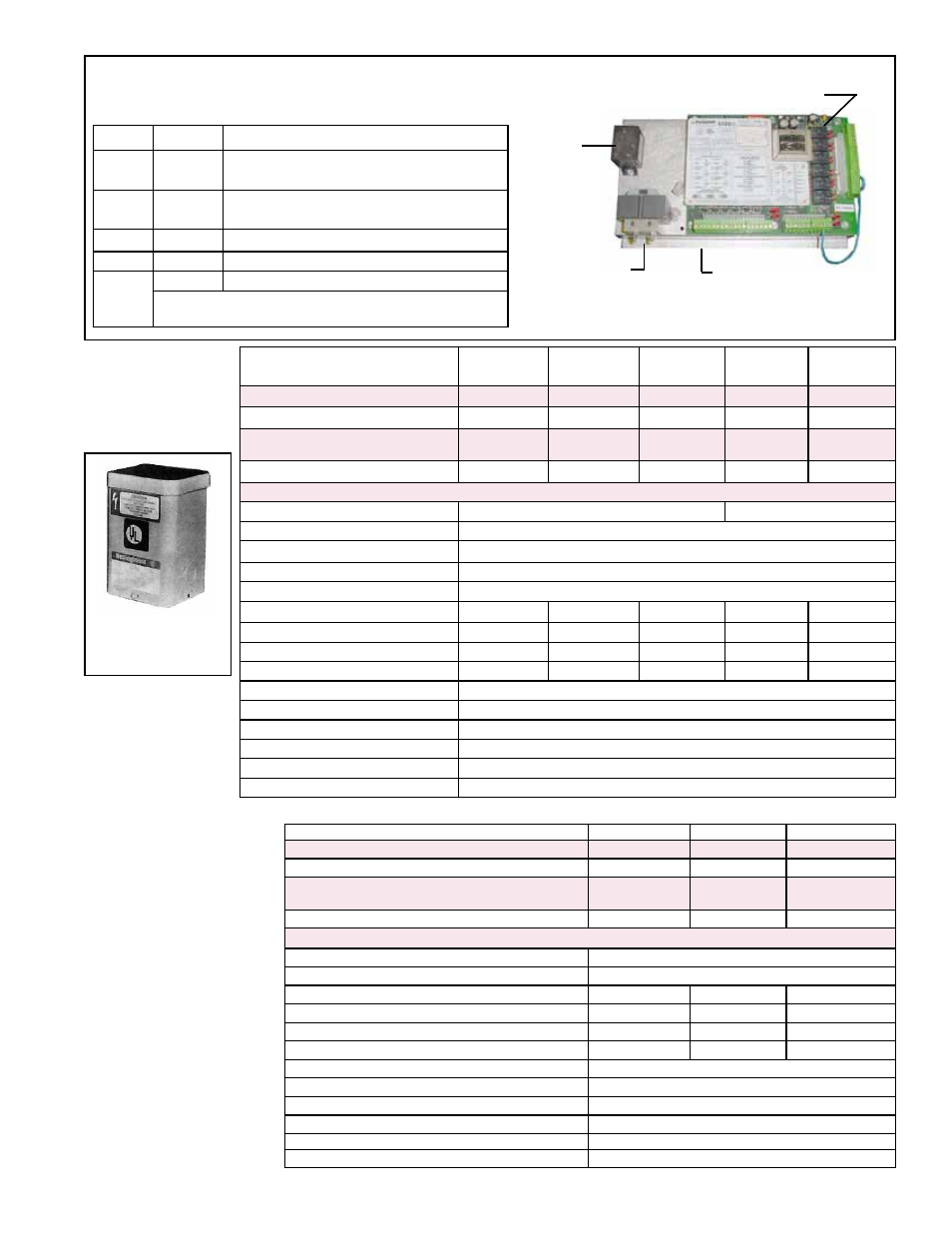

DDC Controller, P/N 207944, and other components
used in Option D10 and Option D14 (D14 requires
field-provided sensor) - applies to Sizes 150-400
Code 21A, Novar Controller (mounts on the
inside wall of the control compartment)
CODE 22 - Bracket
CODE 23 - Gasket
CODE 10B -
Transformer
(See page 5.)
CODE 24
- Relay
CODE P/N Description
21A 207944 Novar Controller, Model Minio
737200000
21B 207945 Novar Discharge Sensor Model
712007000DTS 30 (Option D10 only)
22 208069 Controller Bracket
23 195669 Gasket
24
18549 Relay, Heat (W/R 90-370)
Order Kit P/N 263527 if replacing relay P/N 98118
(WR 134-20102-101)
For Model UDAP or UDAS 30
45, 60, 75,
100
125, 150,
175, 200
225, 250
300, 350,
400
Option CG1 (208 to 120V) 260919 260920 260921 260922 260923
includes Transformer (P/N, kva) 260927, .25 260928, .50 260929, .75 223462, 1.0 260930, 1.5
Option CG2 (230 to 120V) and
Option CG4 (460 to 120V)
197150 197151 197152 197153 197154
includes Transformer (P/N, kva) 11279, .25 11100, .50 11217, .75 16065, 1.0 197085, 1.5
All UDAP/UDAS Option CG1, CG2, and CG4 Kits listed above include the following parts:
Transformer Bracket
197079 197080
Transformer Bracket Gasket 236155
Hex Head Cap Screw 32253, 3/8 x 1” lg
3/8” Lock Washer 5197
3/8” Flat Washer 6593
BX Cable, 3/8” 45097, 38” 174394, 46” 63292, 49” 10460, 56” 201465, 70”
Black wire 14 gauge, 105°C 32520, 54” 7208, 62” 123150, 65” 48862, 72” 201466, 86”
White wire 14 gauge, 105°C 201243, 54” 201242, 62” 123152, 65” 48861, 72” 201467, 86”
Green wire 14 gauge, 105°C 201241, 54” 201240, 62” 201468, 65” 201462, 72” 201469, 86”
Anti-Short Bushing (2) 16358
Straight Connector 16199
90° Connector 1417, T&B #XC-290
Cable Clamp, 1/2” 16227, Heyco #3328
Sheetmetal Screws (3) 11813, #10 x 1/2”
Wire Connector 73B (10) 16354, Ideal #3-0253
For Model UDBP or UDBS 30, 45 60, 75 100, 125
Option CG1 (208 to 120V) 260924 260925 260926
includes Transformer (P/N, kva) 260928, .50 223462, 1.0 260931, 2.0
Option CG2 (230 to 120V) and
Option CG4 (460 to 120V)
202976 202977 202978
includes Transformer (P/N, kva) 11100, .50 16065, 1.0 202979, 2.0
All UDBP/UDBS Option CG1, CG2, and CG4 Kits listed above include the following parts:
Transformer Bracket
197079
Transformer Bracket Gasket 236155
BX Cable, 3/8”, (length in inches) 45097, 38” 174394, 46” 63292, 49”
Black wire 14 gauge, 105°C, (length in inches) 32520, 54” 7208, 62” 123150, 65”
White wire 14 gauge, 105°C, (length in inches) 201243, 54” 201242, 62” 123152, 65”
Green wire 14 gauge, 105°C, (length in inches) 201241, 54” 201240, 62” 201468, 65”
Anti-Short Bushing (2) 16358
Straight Connector, T&B #302 16202
90° Connector, T&B #XC-290 1417
Cable Clamp, 1/2” Heyco #3328 16227
Sheetmetal Screws (3) 11813
Wire Connector 73B (10) 16354
