Reznor UDBP Parts Manuals - Manual (Page 11)

Form P-UD, P/N 270285R4, Page 11

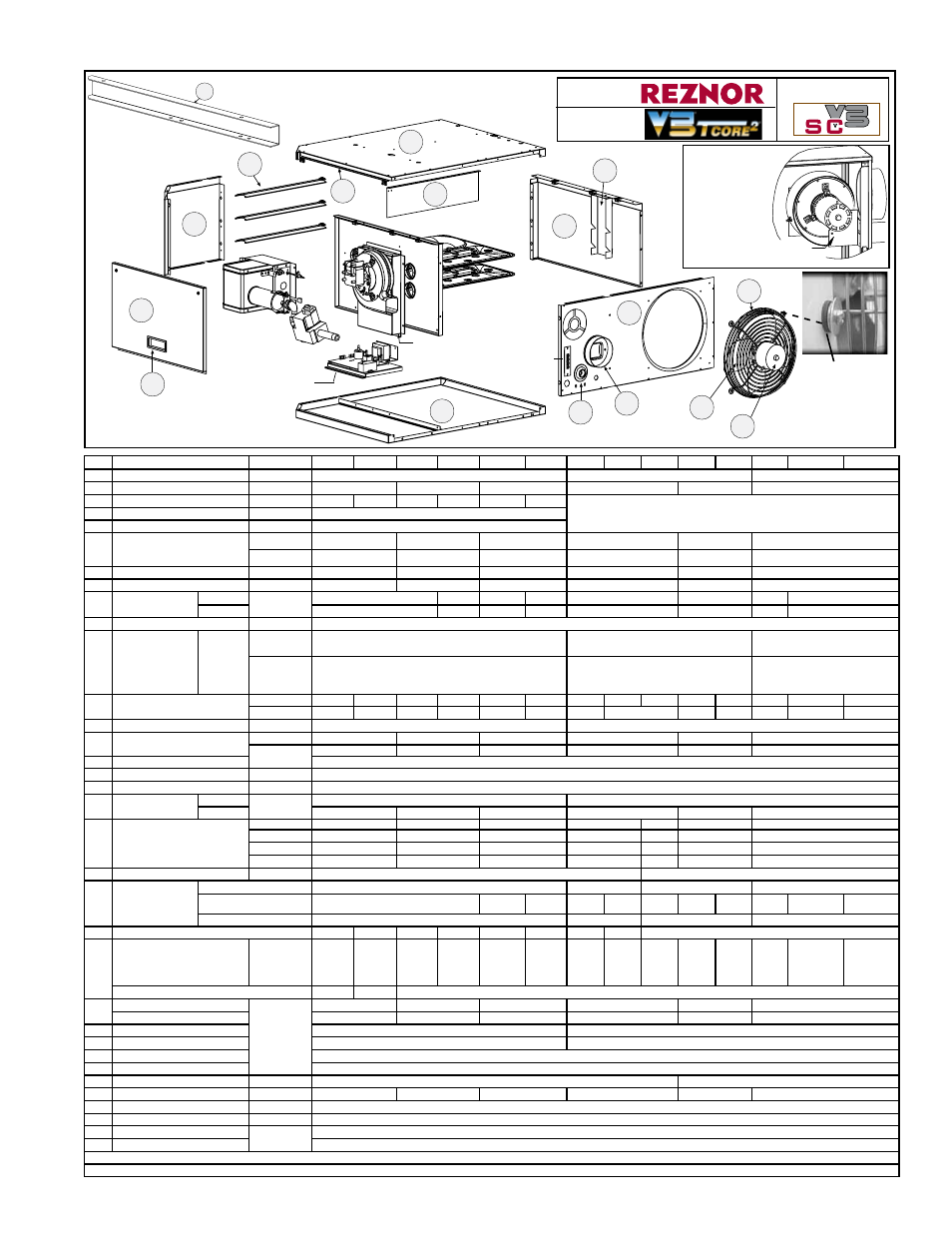

Cabinet Parts
® CODE 64
Heat Exchanger
Assembly
Burner
Shield,
Burner Assy,
and Gas Valve
Venter & Flue
Wrapper Assy
45
48
50 49
42
41 44
51
52
40 63
57
55
59
58
Sizes 30-125
only
Control Assy
24V
Terminal
Strip
12 (page 5)
(See
below.)
CODES 60A,
60B, and 61;
CODE 62 -
clips behind
(not shown)
(Quantities other than one
are listed in parenthesis.)
57B - Flue Collar Support,
Sizes 200-400, P/N 254952
CODE
57B
Code Description Model 30 45 60 75 100 125 150 175 200 225 250 300 350 400
40 Bottom Pan Assembly All 195772 196025 196350
41 Left Side Panel All 195492 ** 195493 ** 195494 ** 195562 195563 195564
42 Heat Exchanger Support All 196317** 196318** 196319** 196320** 196321** 196322**
The heat exchanger support and support gaskets for Sizes 150-400 are part of
the replacement heat exchanger; see page 14.
43A Ht Exchanger Support Gasket All (2) 236155
43B Sheet Metal Screw #8 - 18 x 3/8 All 195638
44
Front Panel (if replacing on unit
mfgd prior to 4/2010, requires
top panel, Code 48.)
UDAP/UDAS 195489* 195490* 195491* 201692 201693 201694
UDBP/UDBS 201755 201756 201757 201692 201693 201694
45A Horizontal Louver All (3) 195314 (4) 195314 (6) 195314 (5) 195578 (7) 195578 (10) 195578
45B Compression Spring for Louvers All (3) 195046 (4) 195046 (6) 195046 (5) 195046 (7) 195046 (10) 195046
46 Hanger Bar
Right
UDBP/UDBS
202744 202746 202748 202750 202752 202754 202756 202758
Left 202743 202745 202747 202749 202751 202753 202755 202757
47 Clip Nut (for hanging) All (2) 196336
48
Top Panel (effective
4/2010, includes
Code 50; replacing
on unit mfgd prior
to 4/2010 requires
new Code 44.)
(Top Panel
Captive
Nuts, P/N
195633)
UDAP/UDAS 195498 * and ** 195556 195557
UDBP/UDBS 201406 ** 202944 195557
49 Top Air Baffle
UDAP/UDAS 195545 195546 195547 195548 195549 195550 -- -- -- -- -- -- -- --
UDBP/UDBS -- -- -- -- -- -- 202945 202946 -- -- -- -- --
50 Top Door Seal All 195999 (beginning 4/2010, part of top panel, Code 48) 196225 (beginning 4/2010, part of top panel, Code 48)
51A Access Door (door only without
handle and gaskets)
UDAP/ UDBP 195483 195484 195485 195565 195566 195567
UDAS/ UDBS
207604 207605 207606 207607 207608 207609
51B Window Plug 207525
52 Door Handle All 196881
53 Door Rubber UDAP/UDBP (4) 155064
54 Door Gaskets
Top/Btm
UDAS/UDBS
(2) 196331 (2) 201673
Side (2) 196332 (2) 196333 (2) 196334 (2) 201674 (2) 201675 (2) 201676
55
Rear Panel - UDAS and UDBS
include inlet collar. (Fan Model
UDAP is illustrated.)
UDAP 195486 195487 195488* 196347 195558 195559 195560
UDAS 197035 197036 197037* 197038 197039 197040 197041
UDBP 201399 201400 196346 201789 201790 201791 201792
UDBS 201383 201384 201385 202319 202320 202321 202322
56 Outlet Collar Gasket All 170048 196822
57A
Outlet Collar
(attaches with
screws)
UDAP w/std vent & UDBP 195077, 4” 195079, 5” 216950, 5” 216951, 6”
UDAP-CV w/Opt AV6 195077, 4”
195079,
5”
-- -- -- -- -- -- -- -- --
UDAS and UDBS 195077, 4” 195079, 5” 216950, 5” 216951, 6”
57B Flue (Outlet) Collar Support -- -- -- -- -- -- -- -- 254952 (See illustration top right corner.)
58
Fan Blade (See motor shaft
spacing on page 6.)
UDAP/UDAS 195644 195645 195646 195647 195648 195649
195678,
Revcor
18,
3-22
195679,
Revcor
18,
3-29
195680,
Revcor
18,
3-32
195681,
Revcor
20,
3-27
195682,
Revcor
20,
3-30
195683,
Revcor
24,
3-20
209122, Lau
61206801
(replaces
195684)
209121, Lau
61204001
(replaces
195685)
UDAP45 Low Noise, Opt AL2B N/A 202960 N/A
59
Fan Guard - std spacing
UDAP/UDAS
175266 175267 195047 170084 170085 170086
Fan Guard (AZ8) - fingerproof 260873 260874 260875 -- -- --
60A Fan Guard Isolator Bushing (4) 196349 (4) 96451
60B Screws for Codes 60A & 61 (4) 196330 (4) 96452
61 Fan Guard Isolator (4) 196348
62 Fan Guard Clips (in back) (4) 54633
63 Grommet for Pipe UDAS/UDBS 102607 15021
64 Reznor ® Label All 196690 196689 196691 196689 196691 196692
65 V3 ® T-CORE 2 Label UDAP/UDBP 196693
66 SCV V3 ® Label UDAS/UDBS 259897
67 Cabinet Touchup Paint
All
201805, 11oz spray can, white
68 Horizontal Louver Paint 207432, 12 oz aerosol can, maroon
* Parts changed effective 3/18/03. Not interchangeable with previously manufactured parts with same P/N.
** Parts changed effective 4/12. Not interchangeable with previously manufactured parts with same P/N.
47
Hanger Bar on
top of Models
UDBP and UDBS
CODE 65
CODE 66
