Reznor UDBP Parts Manuals - Manual (Page 13)

Form P-UD, P/N 270285R4, Page 13
5/16” (8mm) inside 5/16” (8mm) inside
Venter
Wheel
Venter Motor Plate
Fan
Motor Mounting
Bracket
Venter
Motor for
Sizes
150-175
Venter
Wheel
Venter Motor Plate
Motor Mounting
Bracket
Fan
Venter
Motor
for
Sizes
30-125
7/16” (11mm) inside
Venter
Wheel
Motor Mounting Bracket
Venter Motor for
Sizes 200-400A
Venter Motor Plate

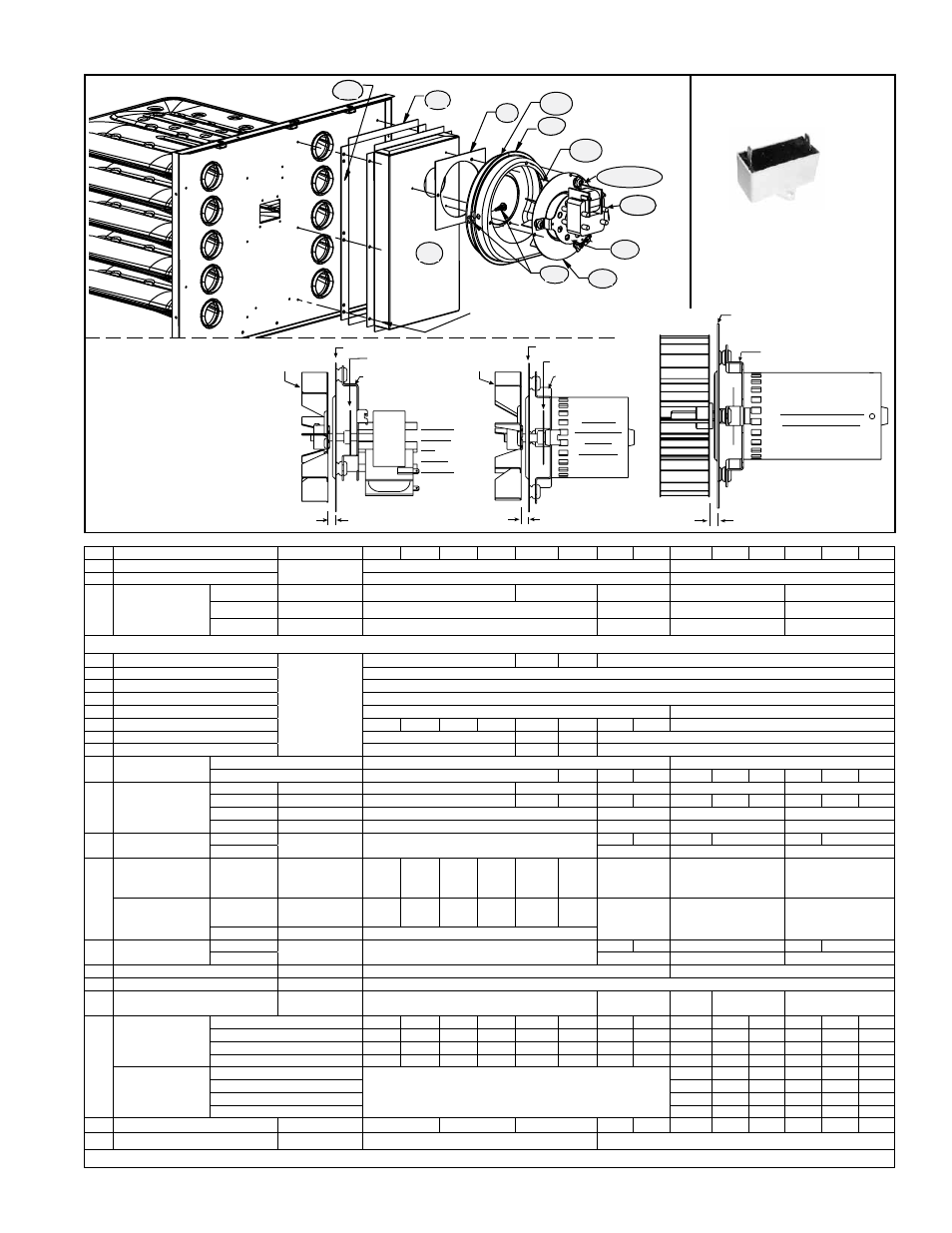

Venter and Flue Wrapper Components
The flue wrapper is attached
with sheetmetal screws.
98
99
113
115
111
107
(Heat Exchanger Assembly, see page 14.)
Flue
Wrapper
101
108
114
102/103
105
104
CODE 100 - Venter
Motor and Wheel
Assemblies
showing
Components and
Spacing
CODE 109 - Venter
Motor Capacitor
See P/N’s below and
location on page 4.
Code Description Model 30 45 60 75 100 125 150 175 200 225 250 300 350 400
98 Venter Housing
All
196248 195634 prior to 7/23/09; 257029 after 7/23/09
99 Venter Housing Gasket 196012 196013 prior to 7/23/09; 254935 after 7/23/09
100
Venter Motor and
Wheel Assy NOTE:
460V & 575V supply
use 115V vntr motor.
115V All (not w/AV6) 220779 220780 220782 220784 220786
208/230V/1ph UDAP/UDAS 220781 220783 220785 220787
208/230V/3ph UDBP/UDBS N/A 220783 220785 220787
NOTE: CODE 100 includes Codes 101, 102, 103A, 103B, 104, 106A, 106B, 107, 108A or B, and 110
101 Venter Motor Bracket
All
195072 -- -- 195072
102 Venter Motor Isolator (3) 194534
103A Venter Motor Isolator Bushing (3) 194803
103B Venter Motor Isolator Bushing Screw (3) 113275
104 Venter Motor Plate 194806 194910
105 Venter Motor Plate Gasket -- -- -- -- -- -- -- -- 201472
106A Venter Motor Clip 194805 (208/230V only) -- -- (3) 194805
106B Venter Motor Clip Screw 92851 (208/230V only) -- -- (3) 92851
107 Venter Wheel
All Models except UDAP-CV 195036 195666
UDAP-CV w/AV6 (common vent) 211819 -- -- -- -- -- -- -- -- --
108A
Venter Motor only
NOTE: 460V and
575V supply use
115V venter motor.
115V All 175273 262444 * 196036 196037 196236
115V w/AV6 UDAP 217032 262444* -- -- -- -- -- -- -- -- --
208/230V/1ph UDAP/UDAS 196827 196828 196829 196830
208/230V/3ph UDBP/UDBS N/A 196828 196829 196830
108B Vntr Mtr w/Opt
D10&14 DDC Cntrl
115V
UDAP/UDAS N/A
207992 196036 208194 196037 196236 207892
208/230V/1ph 196828 196829 196830
109A
Vntr Motor Capacitor
(in control compart-
ment; see page 4)
115V All -- -- -- -- -- --
195641, 4MFD,
400 VAC,
#MB40040EB
195643, 7.5MFD, 400
VAC, #MB40075EB
195642, 5MFD,
400VAC, #MB40050EB
NOTE: 460V and
575V supply use
115V venter motor.
208-230V/1ph UDAP/UDAS -- -- -- -- -- --
195641, 4MFD,
400 VAC,
#MB40040EB
195642, 5MFD, 400VAC,
#MB40050EB
195641, 4MFD, 400
VAC, #MB40040EB
208-230V/3ph UDBP/UDBS N/A
109B Vntr Mtr Capacitor w/
Opt D10&14 DDC
115V
UDAP/UDAS N/A
195642 195641 195643 195642 195643
208/230V/1ph 195641 195642 195641
110 Venter Motor Cooling Fan All 195766 196035
111 Static Pressure Tap All 116043
112 Silicone Rubber Tubing All 148986, 6” long 148251, 12”
205837,
16”
130673, 20” 157904, 22”
113
Flue Wrapper Assy
- Sizes 200-400
manufactured prior
to 7/23/09
UDAP w/ std power vent & UDBP 196000 196001 196002 196003 196004 196005 201473 204461 201475 201476 201477 201478 201481 202721
UDAP-CV with Option AV6 196802 196803 196804 196805 196806 -- -- -- -- -- -- -- -- --
UDAS 196807 196808 196809 196810 196811 196812 201473 204461 201475 201476 201477 201478 201481 202721
UDBS 202715 202716 202717 202718 202719 196812 201473 204461 201475 201476 201477 201478 201481 202721
Flue Wrapper Assy
- Sizes 200-400
manufactured after
7/23/09
UDAP w/ std power vent & UDBP
Same as P/N’s listed above for Sizes 30-175.
254944 254945 254946 254947 254948 254949
UDAP-CV with Option AV6 -- -- -- -- -- --
UDAS 254944 254945 254946 254947 254948 254949
UDBS 254944 254945 254946 254947 254948 254949
114 Side Flue Wrapper Gasket All - qty (2) 170029 170030 170031 170033 170034 170035 170042 170043 170044 170036 170037
115 Top/Btm Flue Wrapper Gasket All Qty (2) 170038 170039
* When replacing a McMillan motor, Reznor ® P/N 256091, order replacement kit P/N 262444 plus Item Codes 102, 103A, 103B, and (4) 106B.
