Reznor MAPS IV Option - Installation - Energy Recovery Module Installation - Manual (Page 2)

I-MAPSIII&IV-ER, PN262634R3, page 2

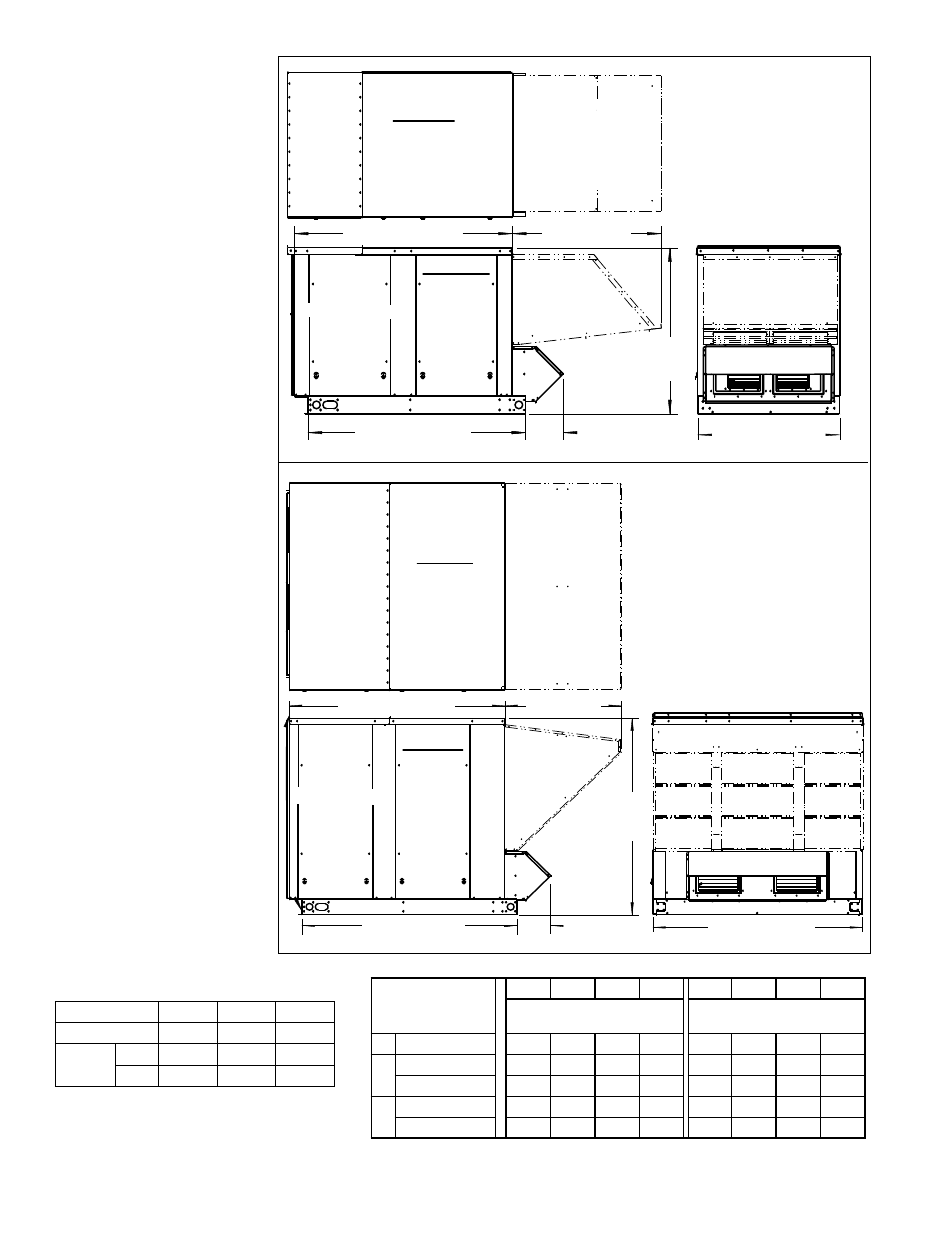

3.0 Dimensions
and Weights
Side View
Top View
(see chart
below for
corner
weights)
Option AS19,
Outside
Air Hood
(field assembled
and installed)
X
W Y
Z
Option AS19,
Outside
Air Hood
Option AS19,
Outside Air Hood
(field installed)
Access
Panel for
Electrical
Connections,
Control,
Supply
Fan, and
Exhaust
Filters
Exhaust
Hood
Exhaust Hood
64-1/16 (1627) 43-3/4 (1111)
49-1/16
(1246)
63-15/16 (1624) 11 (279)
Size A - 42 (1067)
Size B - 57 (1448)
Dimensions of Energy
Recovery Module for
MAPS® III and IV,
Cabinet Sizes A and B
Access
Panel for
Supply
Filters and
Exhaust
Fan
Wheel Access
Side View
Top View
(see chart,
below
for corner
weights)
Option AS19,
Outside
Air Hood
(field assembled
and installed)
Option AS19,
Outside
Air Hood
Dimensions of Energy
Recovery Module
for MAPS® III and IV,
Cabinet Size C
X Z
W
Y
Exhaust Hood
Outside Air Hood
70-1/8 (1781)
69-15/16 (1776) 11 (279) 68-1/2 (1740)
37-7/8 (962)
65-3/8
(1661)
Access
Panel for
Electrical
Connections,
Controls,
Supply
Fan, and
Exhaust
Filters
Access
Panel for
Supply
Filters and
Exhaust
Fan
Wheel Access
Cabinet
Size* and ER
Configuration
W X Y Z W X Y Z
Corner Weights (lbs) Corner Weights (kg)
A 1 supply fan 201 191 192 182 91 87 87 83
B
1 supply fan 271 219 278 225 123 99 126 103
2 supply fans 283 235 267 222 128 107 121 101
C
1 supply fan 370 313 349 296 168 142 158 134
2 supply fans 368 319 347 301 167 145 157 137
IMPORTANT NOTE: Outside air hood is
installed after the module is attached to the
unit. It is not included in the weights.
Weights
* See cross-reference of MAPS ® Models by Cabinet Size on page 11.
Option ER1A ER1B ER1C
Cabinet Size A B C
Weight
lbs 767 1006 1334
kg 348 456 605
Dimensions
