Reznor ADFH Unit Installation Manual - Manual (Page 5)

Form I-ADF, P/N 131805 R5, Page 5
A
G
F
25/32
(20)
E H
D
25/32
(20)
25/32
(20)
25/32
(20)
38-1/8
(963)
B
(Inside of Curb Cap)
Front View
Horizontal Discharge
(Model ADF only)
Disconnect Switch Location
Field Wiring Line Voltage
Field Wiring 24V 3/4 (19)
1 (25)
5 (127)
19-1/2
(495)
14-11/16
(373)
Control Compartment Access
44-3/4 (1137)
45-3/4 ± 1 (1162 ± 25)
C (Inside of Curb Cap)
3/4
(19)
3/4
(19)
6-5/8 (168)
9-7/8
(261)
12
(305)
* 39-3/16
(995)
* Height
from top
of curb cap
Blower Compartment
Left Side View
Horizontal Discharge
(Model ADF Only)
Gas Connection Location
1 (25)
5 (127)
19-1/2
(495)
14-11/16
(373)
Disconnect Switch Location
44-3/4 (1137)
45-3/4 ± 1 (1162 ± 25)
3/4
(19)
3/4
(19)
Control Compartment Access
Blower Compartment
Field Wiring Line Voltage
Field Wiring 24V
* 39-3/16
(995)
12
(305)
9-7/8
(261)
6-5/8 (168)
* Height
from top
of curb cap
P K
C
J
Gas Connection
Location
Motor
Compartment
Model ADFH only
Left Side View
Vertical Discharge
A
38-1/8
(963)
B
(Inside of Curb Cap)
Front View
Vertical Discharge
Bottom
Discharge
Opening
Motor Compartment
Model ADFH only
M
F
N
Top View - Vertical Discharge
Duct Dimensions
(with and without discharge dampers)
Models Horizontal
ADF 300/500 G x E
Models Vertical
ADF/ADFH 300/500 F x K
NOTE: Motor for optional dampers with horizontal
discharge is externally mounted on the control side of
the damper frame. Horizontal damper frame extends
6-5/8" (168mm) beyond the duct connection on the
heater. See FIGURE 19, page 18.

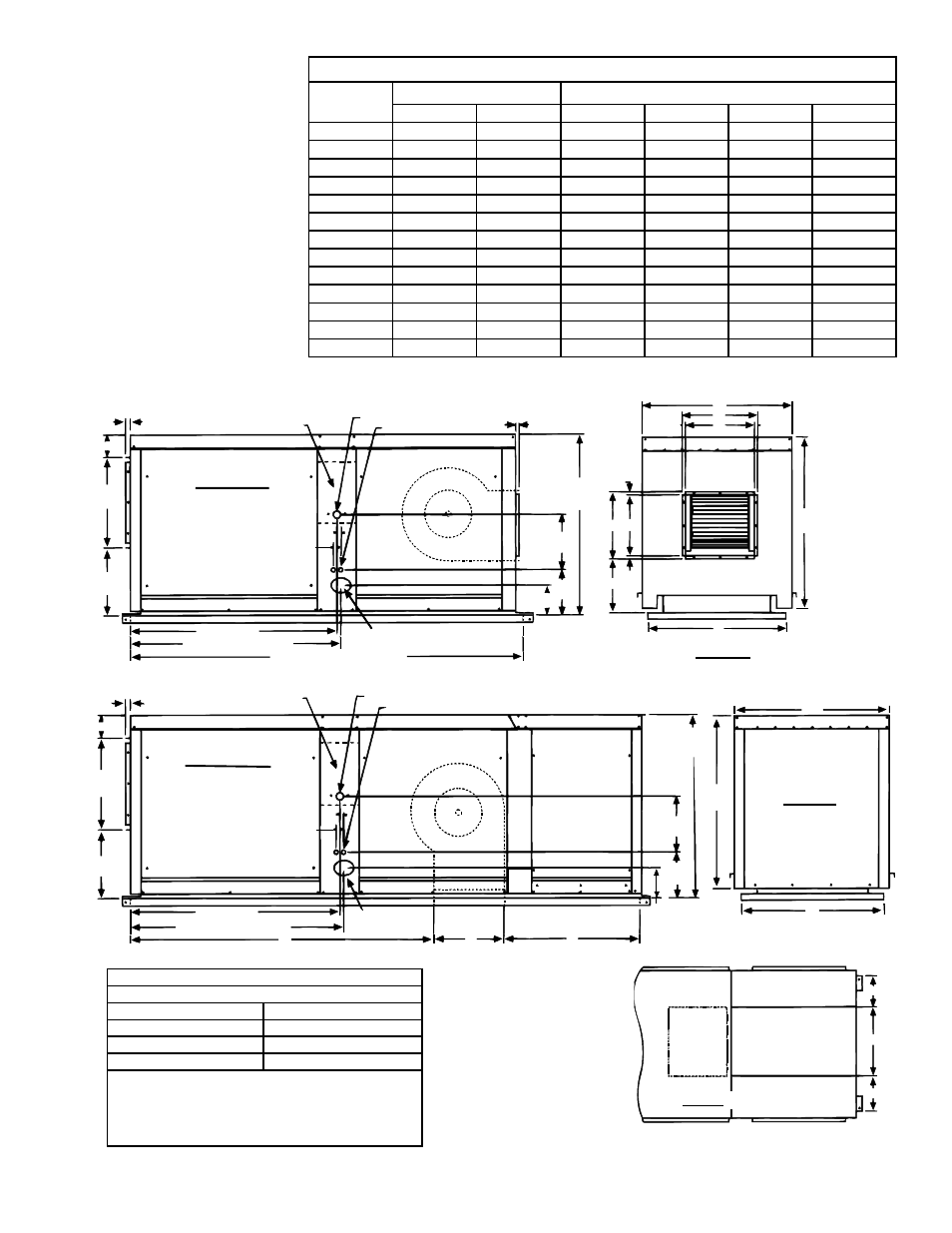

FIGURE 1A - Dimensions of Models ADF/ADFH 300 and 500 - inches (mm)
Dimensions (mm) - Illustration in FIGURE 1A (Sizes 300 & 500)
Models
Horizontal Discharge Vertical** Discharge
ADF300 ADF500 ADF300 ADF500 ADFH300 ADFH500
A 34 1213 864 1213 864 1213
B 789 1138 789 1138 789 1138
C 2180 2180 2180 2180 2781 2781
D 301 322 - - - -
E 389 449 - - - -
F (inside) 405 376 405 376 405 376
G 445 416 - - - -
H (inside) 349 408 - - - -
J - - 1640 1584 1640 1584
K - - 351 408 351 408
M - - 178 206 178 206
N - - 206 552 206 552
P - - 188 188 790 790
** Models ADFH 300/500
have a motor compartment
required for high
temperature discharge.
Models 300/500 with
optional vertical discharge
have same cabinet length
as the standard horizontal
discharge unit.
