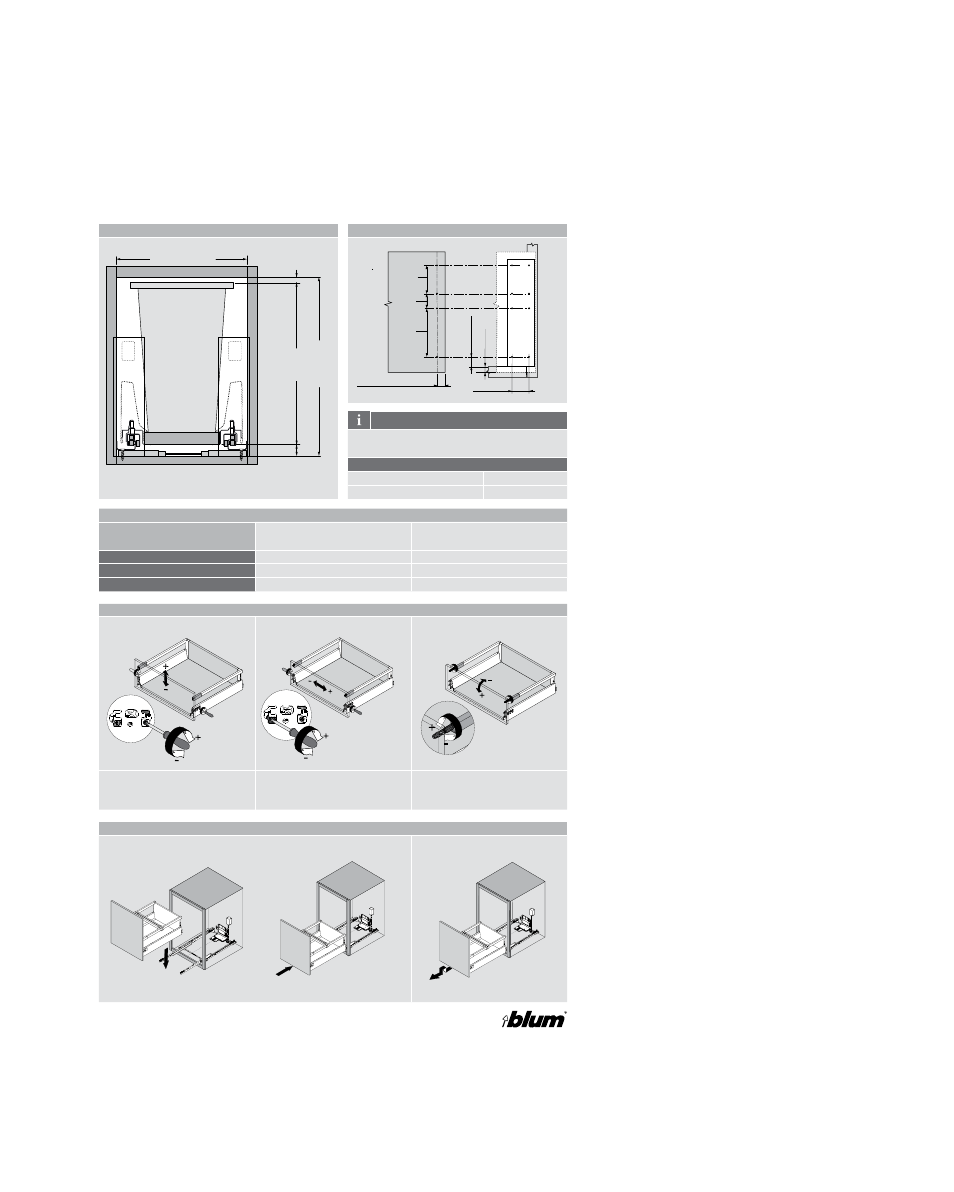

Installation and removal
Installation Removal
For more information about installing Blum products go to blum.com or
call 1-800-438-6788 for customer service.
Technical specifications subject to change without notice.
Drawer adjustments
Height adjustment Side adjustment Tilt adjustment
Drawer front attachment
Bin width and height must be considered when designing your cabinet
(see diagram to the left).
Minimum inside cabinet depth
With SERVO-DRIVE 569 (22-3/8")
Without SERVO-DRIVE 553 (21-3/4")
Specification chart
Waste/recycle set Drawer length
Minimum cabinet
opening width
356M55B7SAB 550 (21-5/8") 305 (12")
356M55B7SAD 550 (21-5/8") 381 (15")
356M55B7SAF 550 (21-5/8") 457 (18")
Front view
NOTE: Minimum opening height = 233 (9-3/16")
Drawer and cabinet specifications
Important
minimum top
clearance
6 (1/4")
9 (3/8") to 16 (5/8")
bottom clearance
depending on bottom recess
cabinet opening width
opening height
maximum height
with bin =
opening height
minus 22 (7/8")
96
(3-3/4")
ov
erla
y
64
(2-1/2")
32
(1-1/4")
overlay minus 2 (1/16")
35 (1-3/8")
15.5
(5/8")
*
*15.5 (5/8") to 22 (7/8") depending on bottom recess
Use a Phillips screwdriver to adjust drawer front
up or down as shown. Repeat on left side if
necessary. Use a Phillips screwdriver to adjust drawer front
left or right. Adjust left or right side equally by
turning both toward or away from drawer front. Slide gallery cover towards drawer back. Rotate
orange adjustment piece as shown and slide
cover back towards drawer front. Repeat on left
side if necessary.
