Rev-A-Shelf 432-BFSC-6C - Manual (Page 2)

Note: Your pullout unit does not need to be removed for installation. If you encounter an issue that requires the unit to be removed, the release levers
for the Blum Tandem slides are located as shown. (See Fig 6a-b).

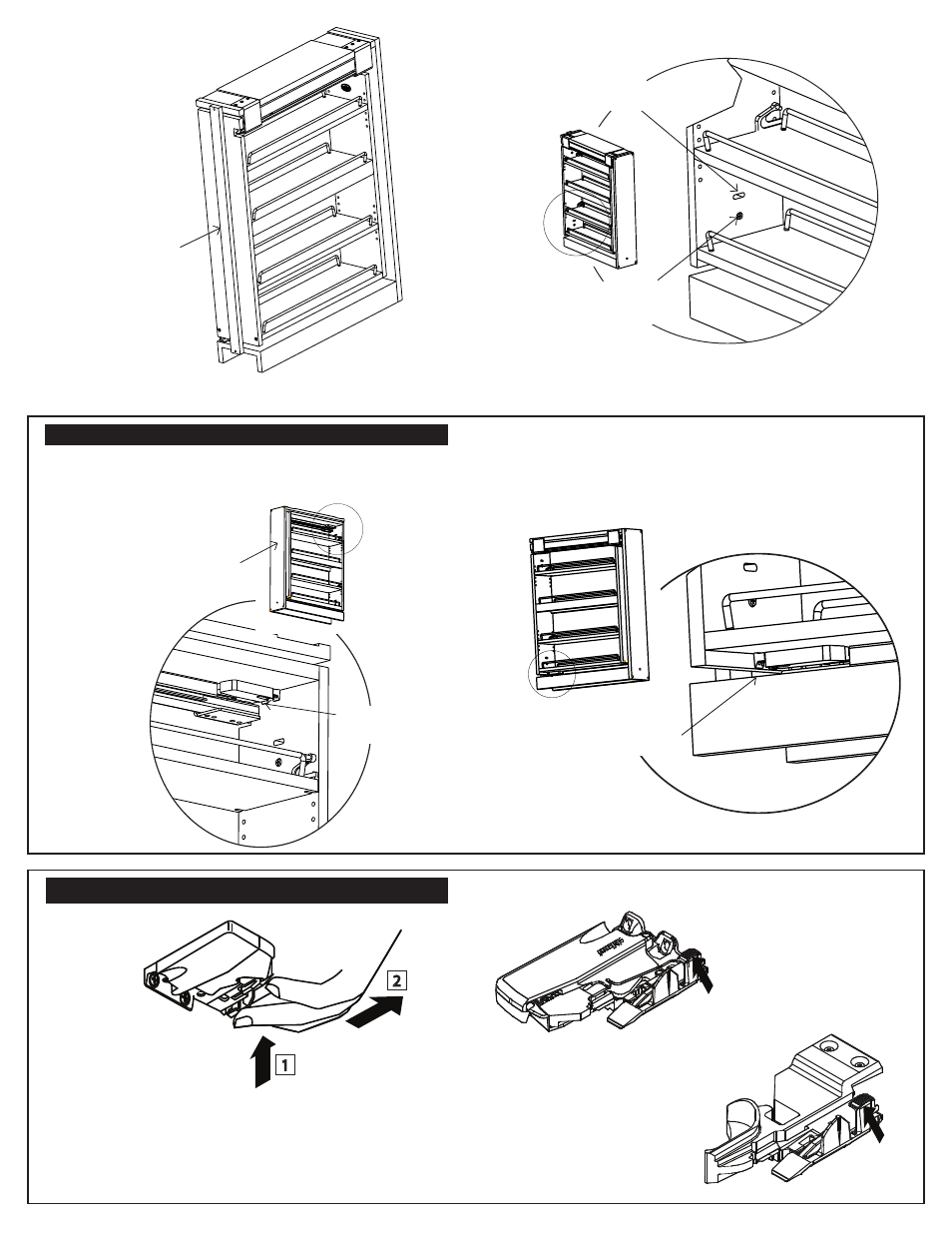

Step 6. Remove front shipping strap. (See Fig 4) Step 7. Attach onlays or door panels. (not provided). (See Fig 5)
Fig 4
Shipping Strap
Fig 5
Back of pullout
Fig 6a
Fig 6b
Top slide
release lever
Install onlay using slots
for side to side adjustment
Use micro adjustment screw
for door tilt adjustment
Bottom slide
release lever
Front slide height adjustment
1
2
Step 1. Press up on adjustment tab.
Step 2. Push toward back of unit. Maximum 1/8” rise of filler.
(See Fig 7a-c)
Fig 7a Fig 7b
Fig 7c
Adjustable Tab
1
2
1
2
Adjustable Tab
Disassembling the pullout from the chassis
