Rev-A-Shelf 4W Series User Manual
4w series installation instructions, Door unit, 25" tall version shown)
4W Series
Installation Instructions
Step 1. Loosen Adjustable Mounting Brackets (AMB's),
adjust until unit is in center of door.
(This is to ensure door swing clearance, away from
non-hinge side of door)
Step 2. Tighten AMB's after desired placement is achieved
Step 3. Make sure bottom of unit clears cabinet opening.
(If swing out unit is installed, door unit should be
mounted at same height)

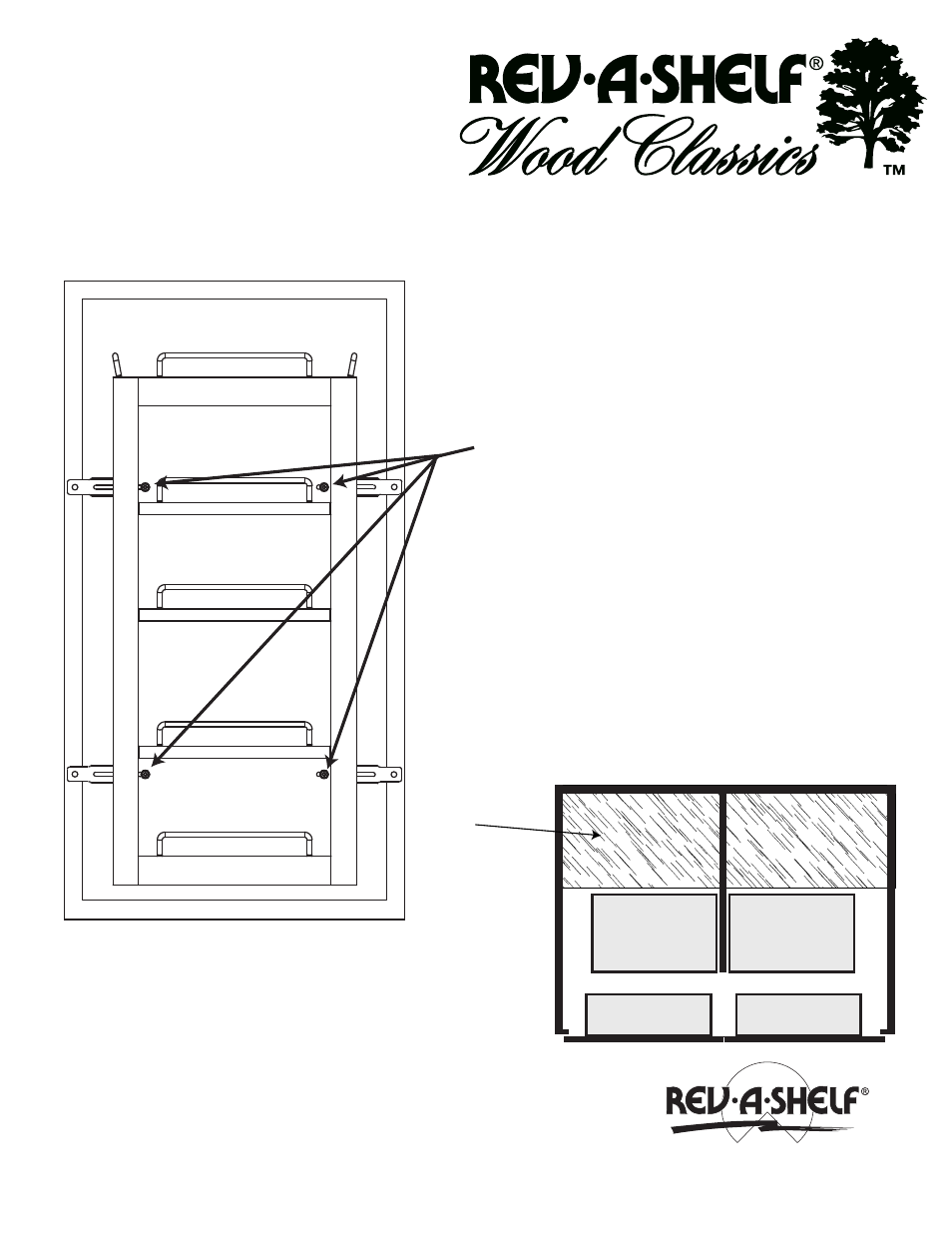

• Door Unit
(25" tall version shown)
Step 4. Screw unit into door frame using 4mm x 16mm
screws provided for AMB's
Questions? Call our Customer Service Specialist at
800-626-1126 or visit us online at www.rev-a-shelf.com
2409 Plantside Drive
Jeffersontown, KY 40299
I-4WP-DOOR
Fixed
Shelves
Swing Out
Unit
Swing Out
Unit
Door Unit
Door Unit
Top View
Completed Installation
