I-FD

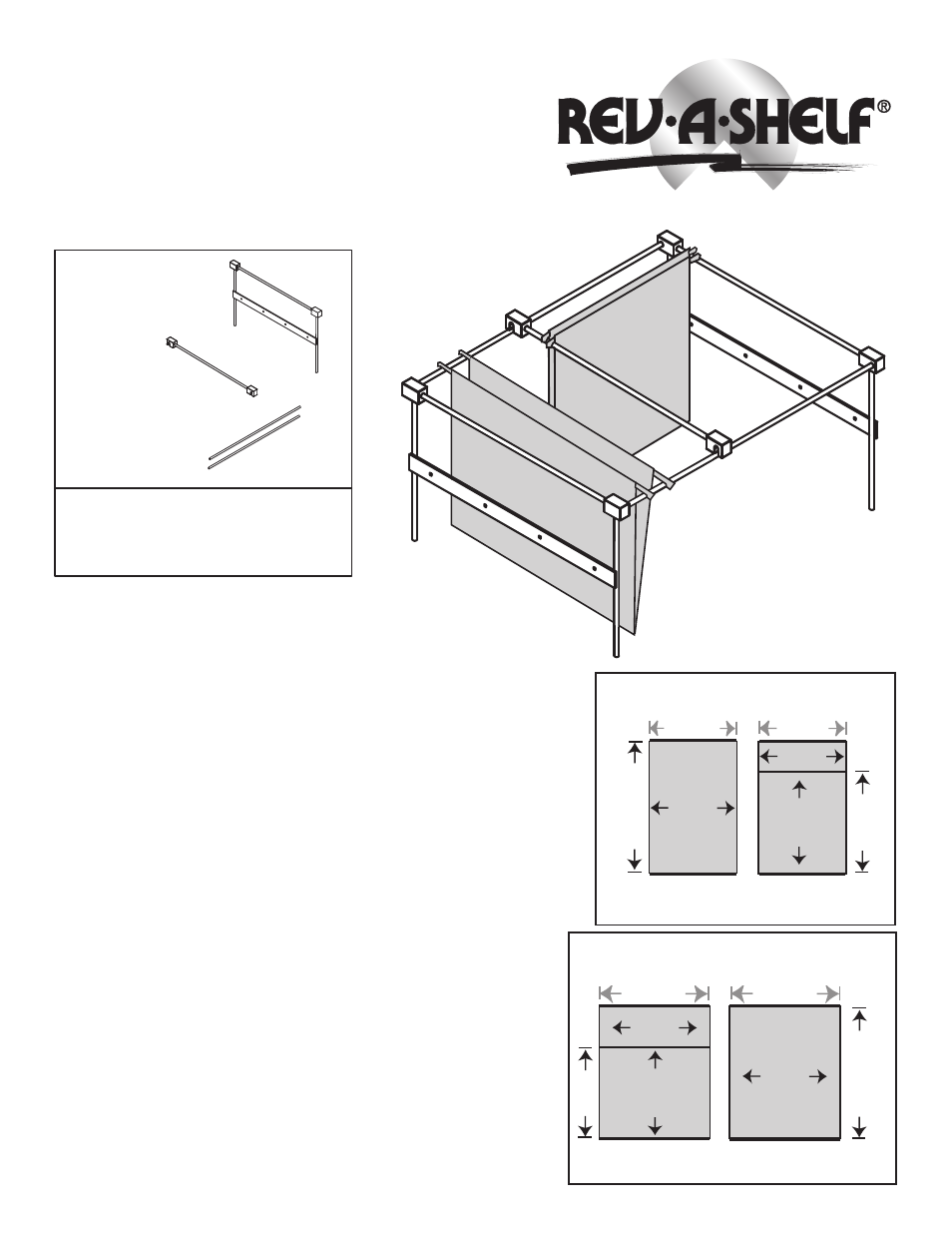

Installation Instructions for the
File Drawer System
Part # RAS-SMFD-52, RAS-LGFD-52
a - End Support (2)
b - T-Rod (1)
c - Metal Runner (2)
Instructions
1. Measure drawer inside dimension, front to back
2. Using this dimension, cut Metal Runners (C) with hacksaw
3. Place End Supports (A) into drawer
4. Press fit Metal Runners (C) into End Supports (A)
5. Using screws provided, attach End Supports (A) to drawer box walls.
6. Attach T-Rod (B) to Metal Runners (C) for legal and letter size storage.
Tools Needed
Hacksaw
Phillips head screwdriver
Questions?
Call our Customer Service Specialist at
800-626-1126
www.rev-a-shelf.com
Part List
Letter
Legal
Le
g
al
Le
tt
er
Shown with LEGAL
and LETTER storage
Shown with LEGAL
and LETTER storage
Letter
Legal
Shown with
LETTER storage
only
Shown with LEGAL
storage only
14
.9
6"
38
0
m
m
RAS-SMFD-52
RAS-LGFD-52
11
.8
1"
30
0 m
m
19
.1
4"
48
6
m
m
M
A
X
19
.1
4"
48
6 m
m
M
A
X
15.19"
386 mm
Not Adjustable
15.19"
386 mm
Not Adjustable
11.81"
300 mm
Not Adjustable
11.81"
300 mm
Not Adjustable
