Engage the jewelry drawer
into the slides.
Push the product completely
closed, and then pull out
completely to check operation.
Place insert
into
the drawer.
1
2
3
1
2
3
3
4

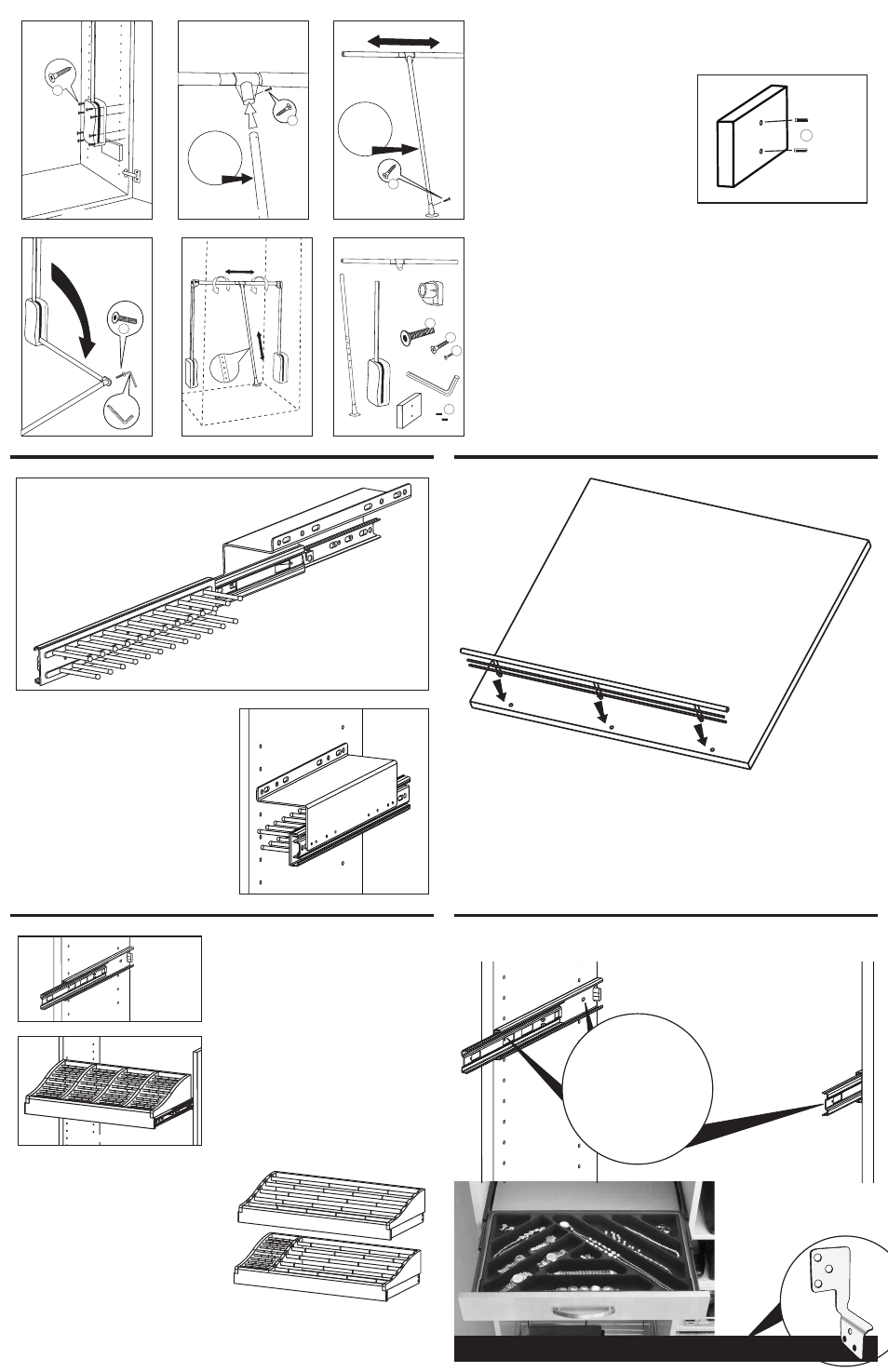

Closet Rod Pulldown System
1. Insert the wooden dowels into the wooden positioner block.
2. Insert the positioner into the system
holes at the desired height, immediately
below where the Pulldown Mechanism
is to be placed. Arm of Mechanism
should be mounted no closer than 11”
to the back of the cabinet.
3. Using the wooden guide for
height, place the right side mechanism
into position and insert a
minimum of 8 screws (2),
for best results use 12 screws (2) See Figure 2.
4. Repeat with Left Side.
5. Assemble hanging pole by using screw (3) as shown in Figure 3.
Be sure that the push button adjustment mechanism is on the backside.
6. Attach handle using provided screw (3), as shown in Figure 4.
7. Pull down the arm of the unit and place the plastic bracket on
the end of both arms. Insert the telescopic hanging rod into one
side and secure with hex head bolt (1), see Figure 5.
Twist as shown in Figure 6 to adjust hanging rod, attach the
other side in the same manner
8. Twist as shown in Figure 6 to adjust the lengh of the handle.
Figure 1
4
Figure 2 Figure 3 Figure 4
Figure 5 Figure 6
Items in this box:
Reverse Mounting Bracket
1. Install tie or belt rack to the
Reverse Mounting Bracket.
Use the included M4 machine screws
as shown in Figure 1.
2. Attach to closet panel. Use the included
Euro screws if installing into system holes,
otherwise use the #8 sheet metal screws.
Figure 1
Figure 2
Small
Diameter
End of Shaft
Large
Diameter
End of Shaft
Chrome Wire Shoe Rail
1. The shelf requires 3 holes to be drilled. Hole diameter is 5mm” x ½” deep.
Use the shoe rail as a template to mark exact hole placement.
2. Insert Wire Shoe Rail into shelf. See Figure 2.
Wood Pants and Tie Rack
The wood pants and tie racks are designed
to mount to the partitions in a closet system.
They are 24” and 30” wide.
1. Determine and mark the mounting
height of the rack. Making sure to arrive
at least 6 1/2” BELOW the next highest
shelf. The slide should be recessed
slightly (~1/16”) from the face of the partition.
2. Remove both slides from the product
by pressing the release lever on the
product member, and pulling away from
the wood rack.
Figure 1
Figure 2
3. Using the marks made in Step 1, attach
the cabinet member of the slide to the
closet partition. If using system holes,
use the Euro Screws provided in the
hardware bag, otherwise use
#8 x 1/2” screws. (See Figure 1)
4. Insert the pants and/or tie rack into
slides, take care to align the slides on
both sides at the same time.
5. Push the product completely closed, and then pull out completely to check
operation. Installation is now complete. (See Figure 2)
Mount the slides
into the cabinet
opening, using the
system holes as a
reference.
Jewelry Drawer with Insert
Drawer front is attached using part JD-DMB-KIT (Sold Seperately)
