OPERATING MODES
Mbox Mini Modes
Mbox Mini has two modes of operation: Mini (Single Output), and Mini Pan Wide (Panoramic Wide). The primary
purpose of the operating modes is to configure the screen arrangement and required Art-Net universes.
Note: Mbox Mini modes are not compatible with Mbox Designer or Mbox Extreme profiles.
The Mbox Setup tab, covered later in this manual, is used to change the operating mode. (Refer to "Setup" on
page 36). The modes function as follows:
Mini Mode (Single Output)
The Mini mode provides one video output from the server. (This is the most common mode of operation.) The output
has one set of Master, Keystone, and Shutter fixtures. It can display up to 4 content layers.

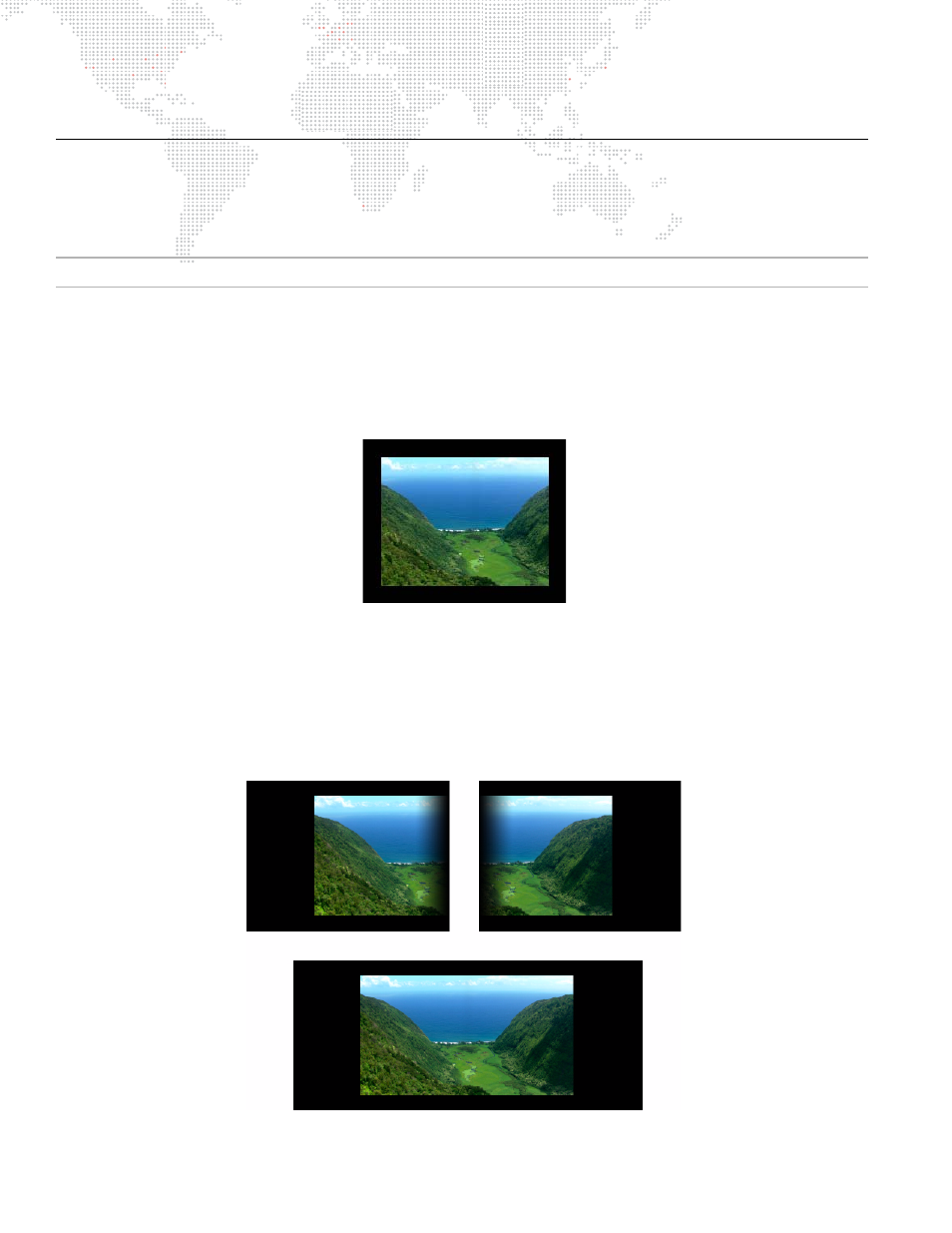

Figure 1-3: Example of Single Output Mode
Mini Pan Wide Mode (Panoramic Wide)
The Mini Pan Wide mode provides two video outputs from the server. The two outputs create a single display surface
and the overlap and blending between the two outputs can be adjusted. Outputs can be arranged either horizontally
or vertically. The two outputs share one set of Master, Keystone, and Shutter fixtures. Any of the server's 4 possible
content layers can be displayed on either screen or across the overlap with a portion on each screen.
Figure 1-4: Example of Panoramic Wide Mode
