MBOX

MINI USER MANUAL

113

Step

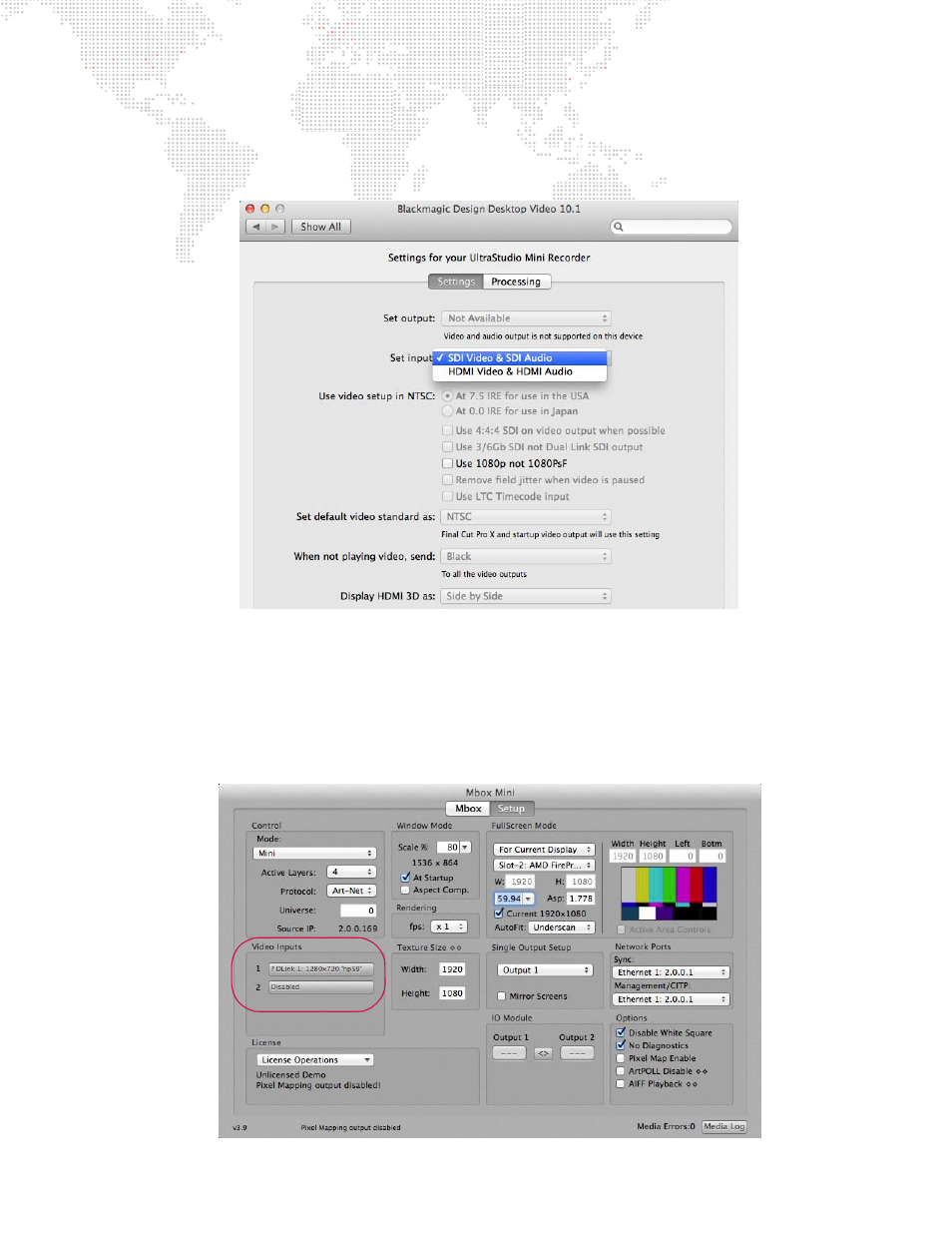

4. At Blackmagic Design Decklink window, click on "Set input" pop-up menu to select an appropriate input

type.

The possible selections may include SDI Video, HDMI Video, Y, R-Y, B-Y Video, and NTSC/PAL (Y in),

and will depend on the UltraStudio device installed. Because Mbox does not use the audio input on the
UltraStudio device, the audio type in each of the inputs can be ignored.

Step

5. Close Blackmagic Design Decklink window.

To configure Mbox video inputs for UltraStudio card:

Step

1. Launch Mbox Mini application and go to Mbox Setup tab.

Step

2. At Video Inputs section, click setup button for the index number (Folder 255, File 254 - 255) that you want to

assign the video input to.
