AUTOPAR ® WASH LUMINAIRE USER MANUAL 33
Installing a Color Gel
Color gels can be installed in the gel frame located at the front of the head assembly.
Tools:
none
To install/replace a color gel:
Step 1. At front of luminaire, press latch to release gel frame as shown (Figure 4-4).
Step 2. Remove gel frame from luminaire.
Step 3. Install color gel in frame.
Step 4. Re-install gel frame in luminaire and close latch.

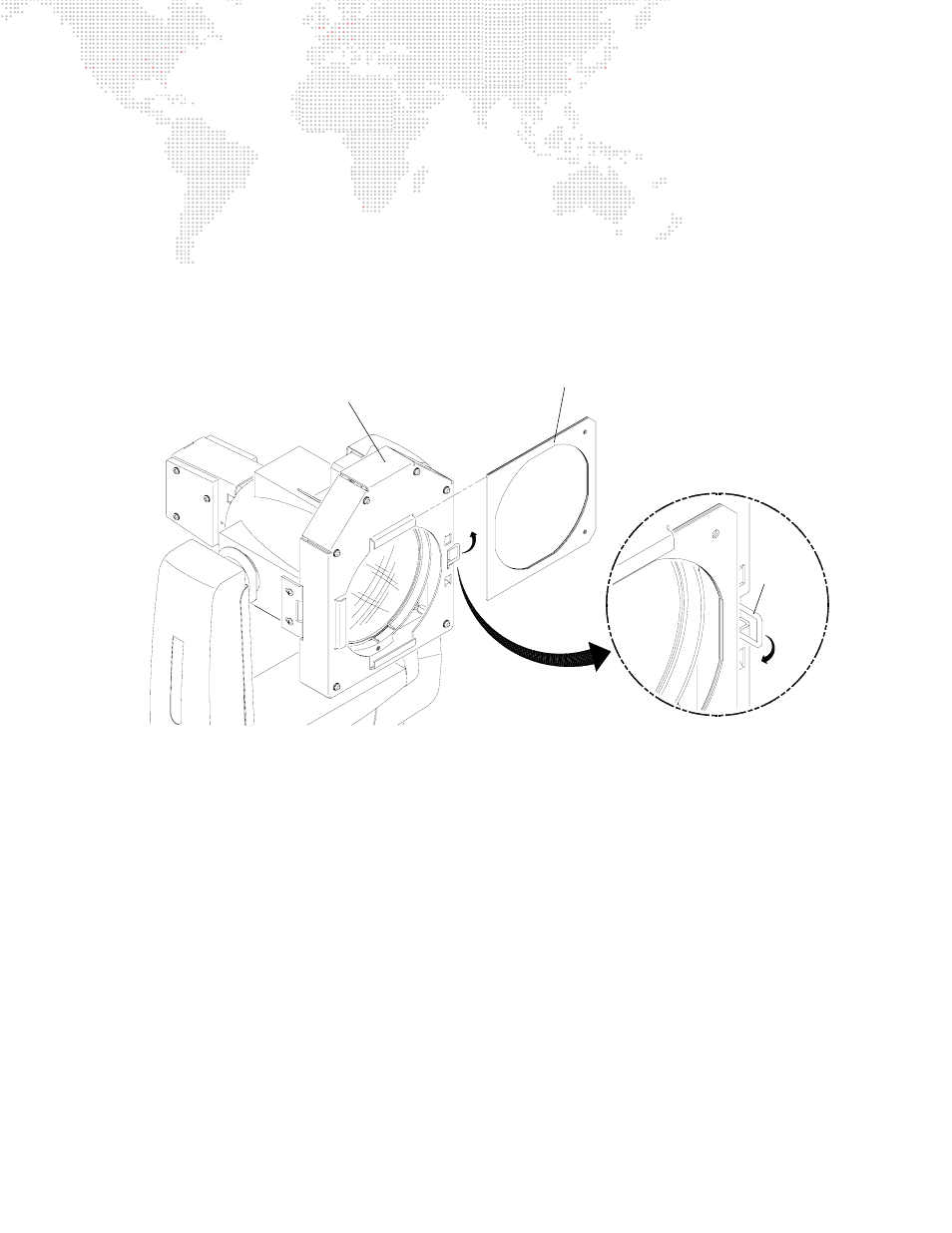

Figure 4-4: Installing/Replacing a Color Gel
Gel Frame
Latch
Head Assembly
