12 AUTOPAR ® WASH LUMINAIRE USER MANUAL
Installing in Truss:
Step 1. Attach hardware and loop safety cable through mounting bracket slot (Figure 2-2).
Step 2. Lift luminaire into mounting position (Figure 2-3).
Step 3. Secure in place with truss hooks. Ensure truss hook hardware (e.g. wing bolt) is properly tightened and that
luminaire is fully supported.
Step 4. Attach safety cable around pipe as shown.
Step 5. Connect power and data cables according to "Connecting Data and Power" on page 13.

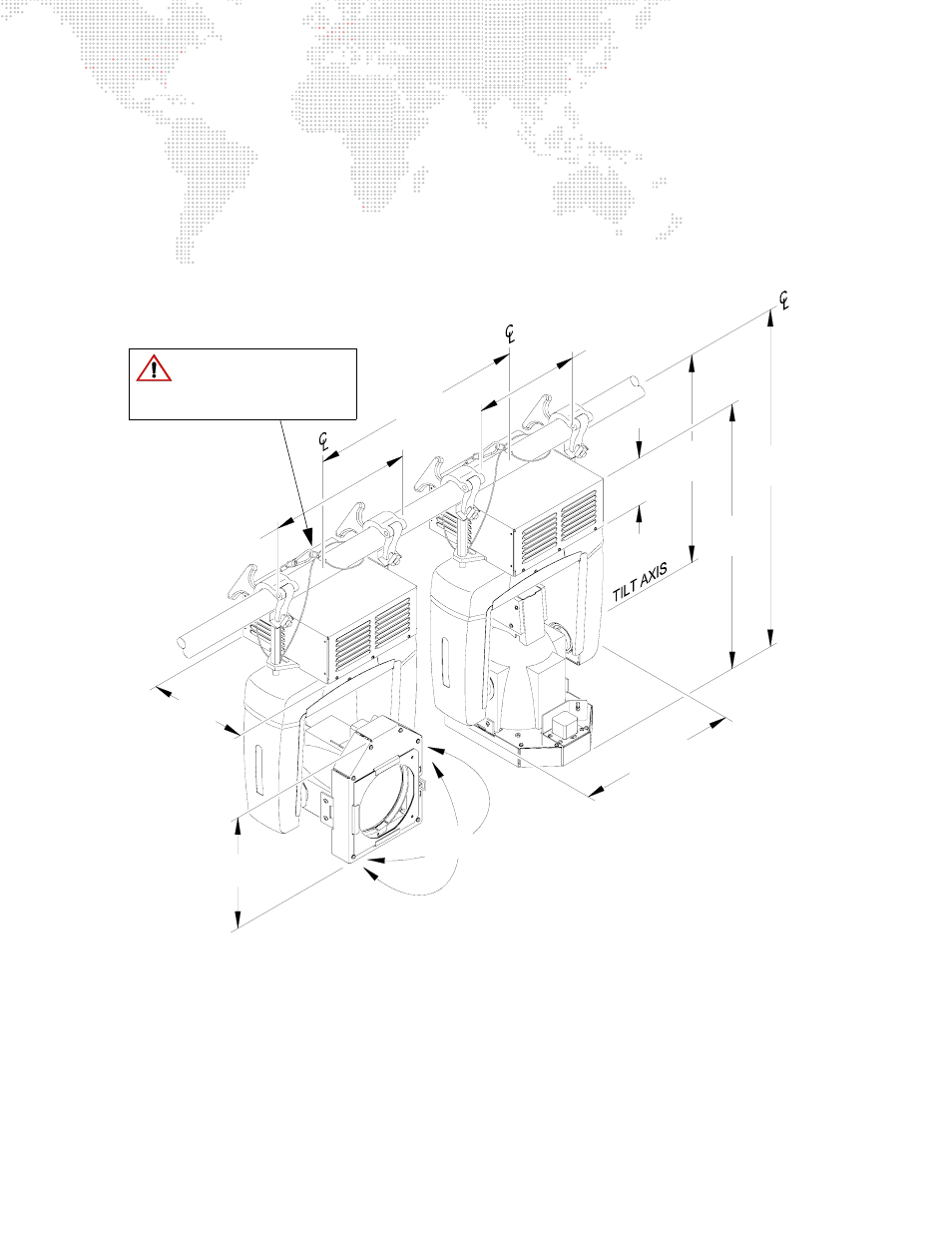

Figure 2-3: Hanging Configuration and Dimensions
11.38"
(289 mm)
(257 mm)
10.12"
(122 mm)
4.80"
16.72"
(425 mm)
25.32"
(643 mm)
27.68"
(703 mm)
20.0"
(508 mm)
10.75"
(273 mm)
21.10"
(536 mm)
20.0"
(508 mm)
14.75"
(375 mm)
Safety Cable:
Recommended for all hanging
installations and may be
required by local codes.
