8 AUTOPAR ® WASH LUMINAIRE USER MANUAL
POWER AND DATA CABLING REQUIREMENTS
Power
The AutoPar Wash Luminaire requires standard AC power distribution from 100-240 VAC, 50/60 Hz, 10 Amps
maximum. The upper enclosure provides a Neutrik® connector for power input. (Power cable not supplied.)

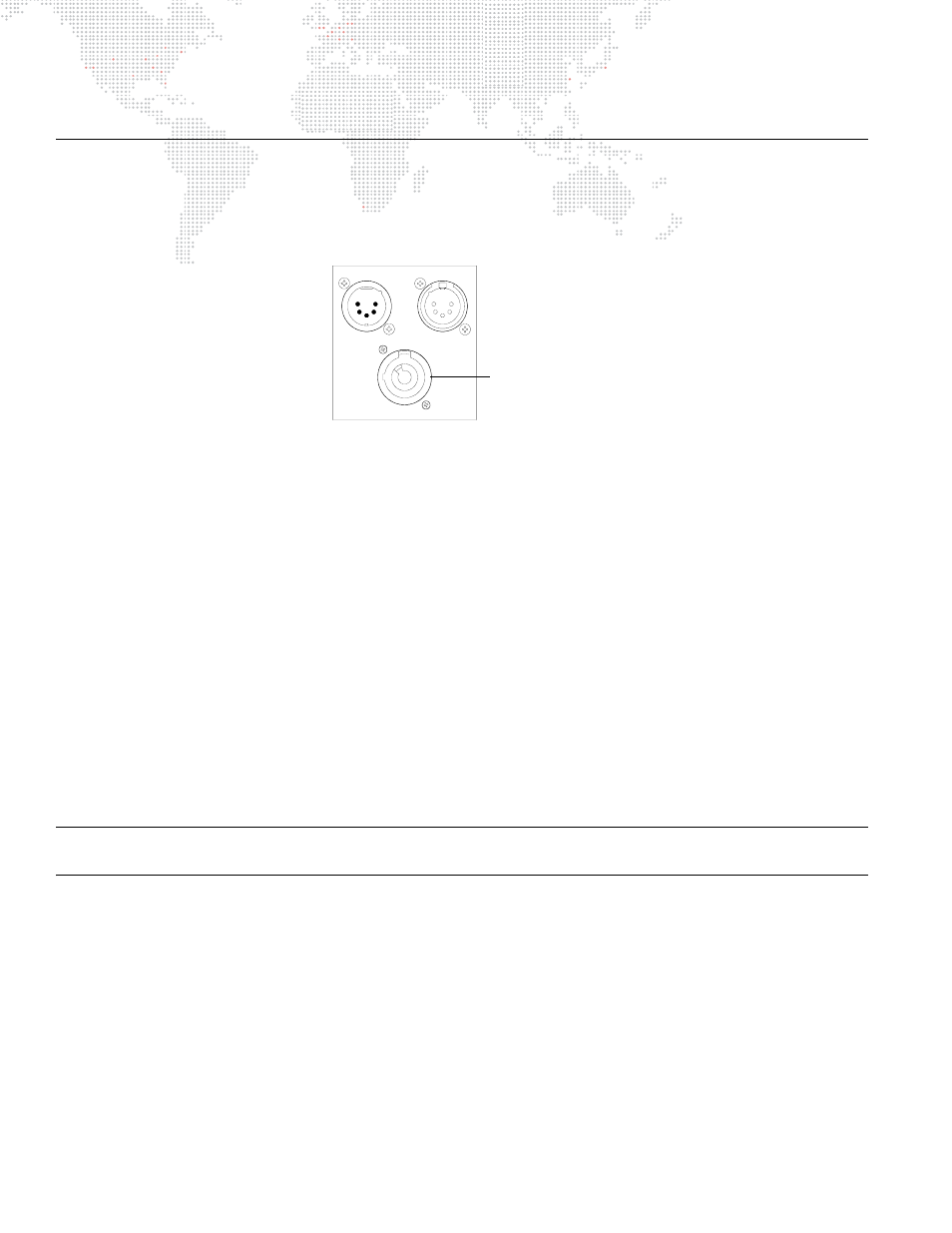

Figure 2-1: Power Input Connector
Data
The AutoPar Luminaire is equipped with two, 5-pin XLR connectors for DATA IN and DATA THRU (out) applications.
DATA IN requires a 5-pin, female XLR connector and DATA THRU requires a 5-pin, male XLR connector. When
purchasing or constructing data cables, it is important that not only the correct cable type be used, but also quality
cable to ensure a reliable DMX512 system. Your cabling should meet the following USITT DMX specification
requirements:
+ Suitable for use with EIA485 (RS485) operation at 250k baud.
+ Characteristic impedance 85-150 ohms, nominally 120 ohms.
+ Low capacitance.
+ Two twisted pairs.
+ Foil and braid shielded.
+ 24 AWG minimum gauge for runs up to 1000 feet (300m).
+ 22 AWG minimum gauge for runs up to 1640 feet (500m).
Note: Microphone type cables and other general purpose, two-core audio or signal cables are not suitable for use
with DMX512.
Neutrik AC
Power Connector
