BEST BOY 4000

SPOT LUMINAIRE USER MANUAL

Cleaning the Intake Filters

The filters should be cleaned or replaced when they become dirty. The frequency will depend on how often and in
what conditions the luminaire is used.

Parts:

10.9816.0788

1 EA

YOKE FAN, AIR FILTER, FOAM

10.9816.0789

1 EA

YOKE FAN, AIR FILTER, ELECTROSTATIC

Tools:

#2 Phillips screwdriver
Compressed air

and/or

water

To clean or replace filters:

WARNING:

Remove power from luminaire before performing any maintenance procedures.

Step

1. Remove power from luminaire.

Step

2. Remove pan-side yoke leg cover by loosening four captive screws (Figure 4-5).

Step

3. Remove foam filter and electrostatic filter as one unit from yoke leg.

Step

4. Clean filters with compressed air and/or by washing with water. Replace as necessary.

Step

5. Re-install components.

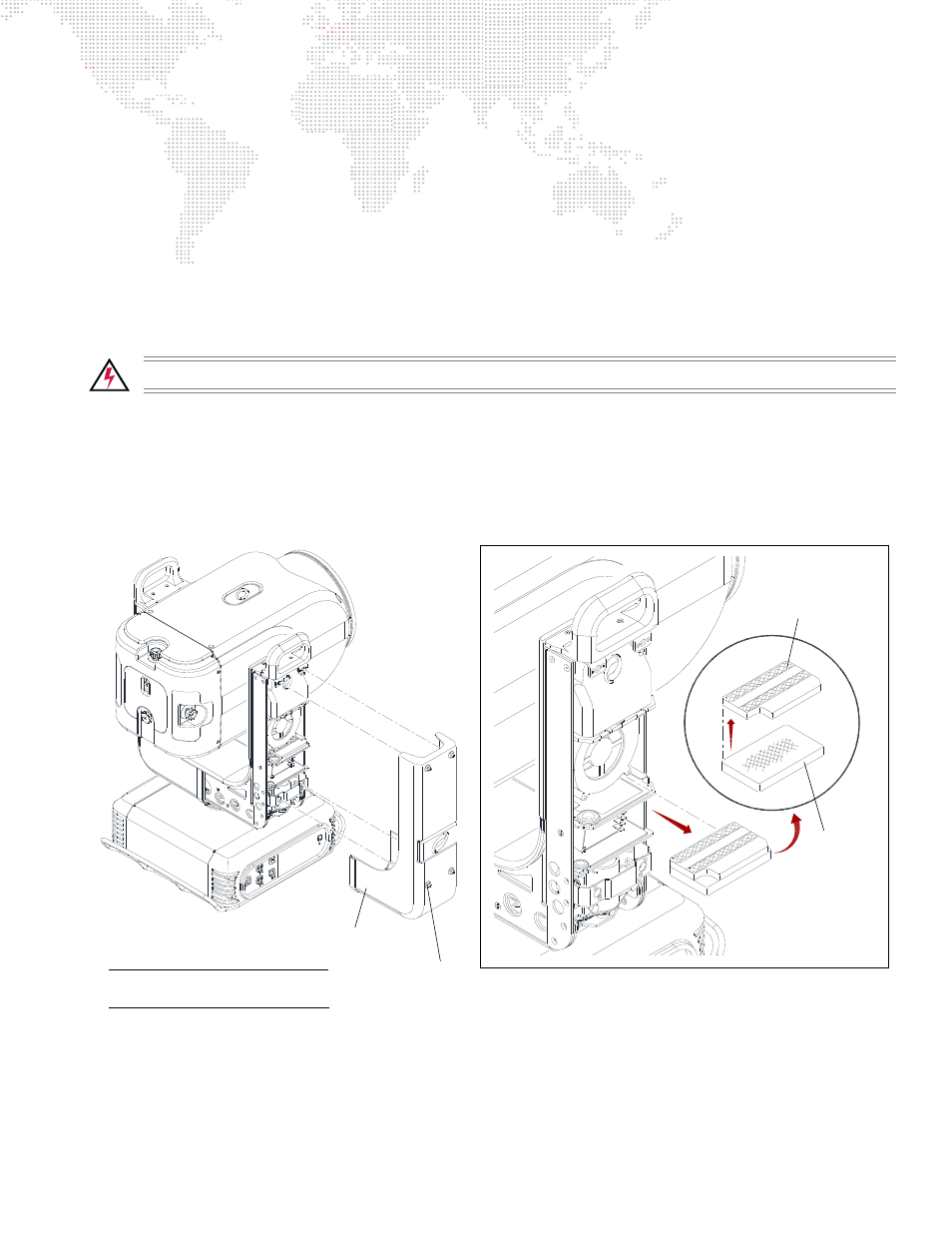

Figure 4-5: Removing Yoke Leg Cover and Air Filters

NOTE:

If the filters do not get clean after multiple
attempts, they should be replaced.

Yoke Leg Cover

Captive
Screw (4)

Foam Filter

Electrostatic
Filter
