15

Installing Unit in a Casement Window

NOTE: Open the window the maximum amount to

allow for clearance of the cabinet. The crank handle

should be removed to allow the platform to be

fastened to the jamb. If the window cannot open far

enough (more than 15 1/2 inches) for the cabinet to

clear the window, remove the window entirely by

drilling out the rivets. Bolts can serve as the rivots

in the future.

To avoid crank handle and window clearance

problems, the unit can be installed in a stationary

sash section. However, the horizontal mullion and

the 2 glass panels must be removed before installation.

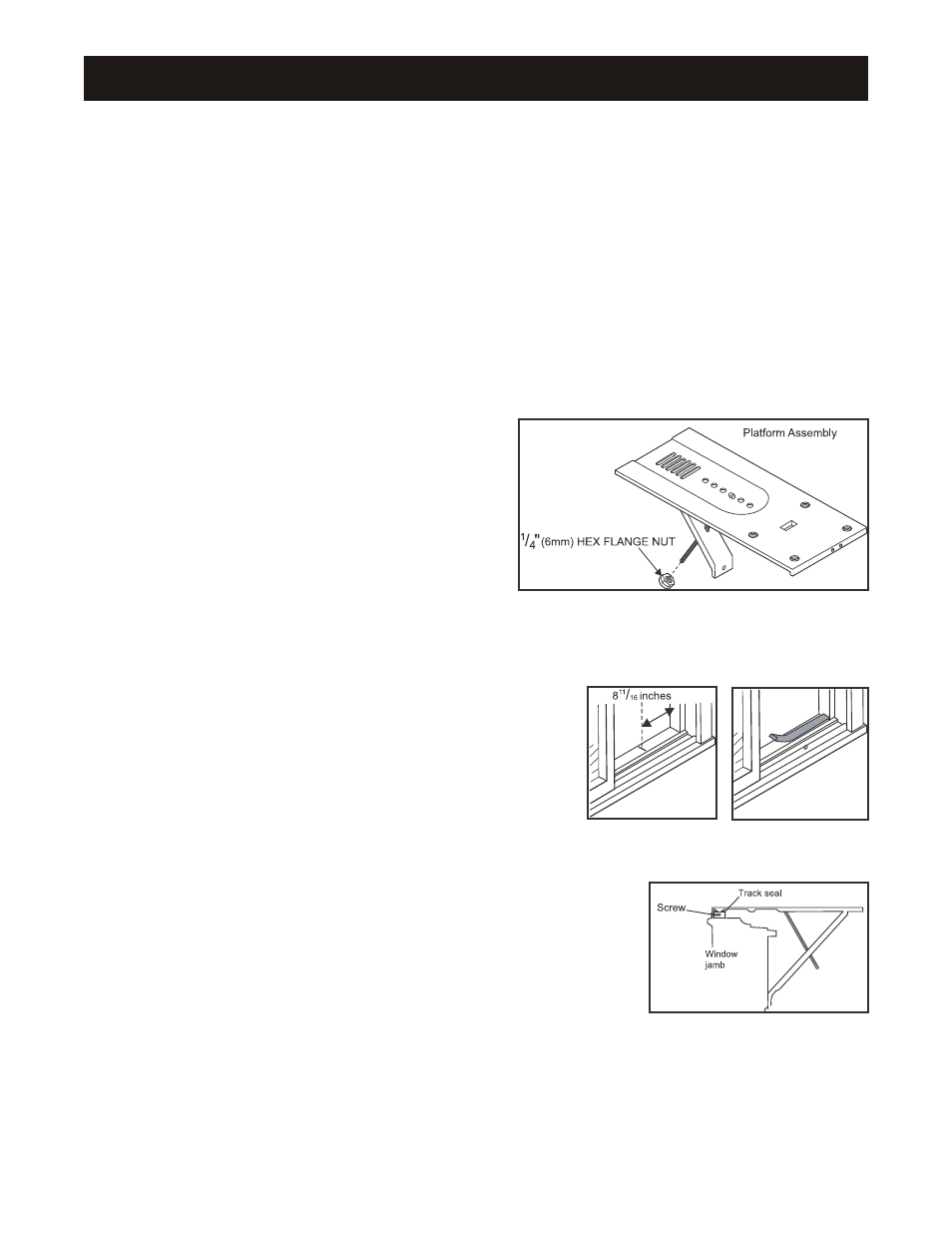

1. Attach support brace to platform. (Fig. 1)

Use the adjustment bolt and hex flange nut to

complete the assembly. Choose the slot and

adjustment bolt hole locations that will create a

45 degree angle between the platform and the

support brace. Try the assembly in the window

to determine if the platform will rest properly,

and allow the proper slope (5/16 inch lower on

outside).

NOTE: If you are planning to use a siding-protection

board (See Step 6) on the outside of your house,

hold the board in place when testing the assembly

in the window.

2. Drill a 9/64 inch diameter pilot hole.

Drill the hole in the window jamb an equal distance

from each side of the jamb (Fig. 2), and 3/16 inch up from

the window sill. If the hole coincides with the window

lever slot in the jamb bottom, an additional hole will

have to be drilled through the platform edge and the

window jamb to miss this slot.

3. Peel off the protective backing. (Fig. 3)

Peel off the backing from the track seal, and stick

the seal to the window sill on the outside of the

bottom jamb.

4. Screw the platform assembly to the window

jamb. (Fig. 4)

Screw the platform assembly using the pilot hole

drilled in Step 2. Use a 3/4 inch self-threading screw.

Fig. 1

Fig. 2

Fig. 3

Fig. 4

INSTALLATION INSTRUCTIONS (CONTINUED)
