Installing Unit in a Sliding Window

1. Attach support brace to platform (Fig. 1).

Use adjustment bolt and hex flange nut to

complete assembly. Choose slot and adjustment

bolt hole locations that will create a 45 degree

angle between platform and support brace. Try

assembly in the window to determine if platform

will rest properly, and allow proper slope.

(5/16” lower on outside).

NOTE: If you are planning to use a sliding-protection

board (See Step 5) on the outside of your house, hold

board in place when testing assembly of window.

2. Measure, and lightly mark a line 8 11/16” from

window jamb. (Fig. 2)
NOTE:
If any sash stop protrudes more than 1”

from the side window jambs, the 8 11/16”

measurement must be increased accordingly.

Screen and storm window frames may also require

adjustments to the measurement.

3. Center platform assembly. (Fig. 3 and Fig. 4)

Center the platform assembly on the line with inside

platform tab pressed against inside edge of window

track. Using the holes in the platform as a guide,

mark and drill two 9/64” diameter holes. Drill holes

in either track or stool.

4. Peel off protective backing from track seal. (Fig. 5)

Next, apply seal to room side of window track.

Center of seal strip should coincide with the line

marked in Step 2. The two screw holes drilled in

Step 3 should be directly above seal strip in the

inner track.

5. Securely attach a siding-protection board to

side of house. (Fig. 6)

NOTE: Siding-protection board should be long enough

to span 2 wall studs.

CAUTION

!

Property Damage Hazard-Failure to adhere to

the following precaution could result in

damage to window or air conditioner.

Be sure wood stool or window track is securely

attached to the building construction. Use longer

screws in sub-framing if necessary.

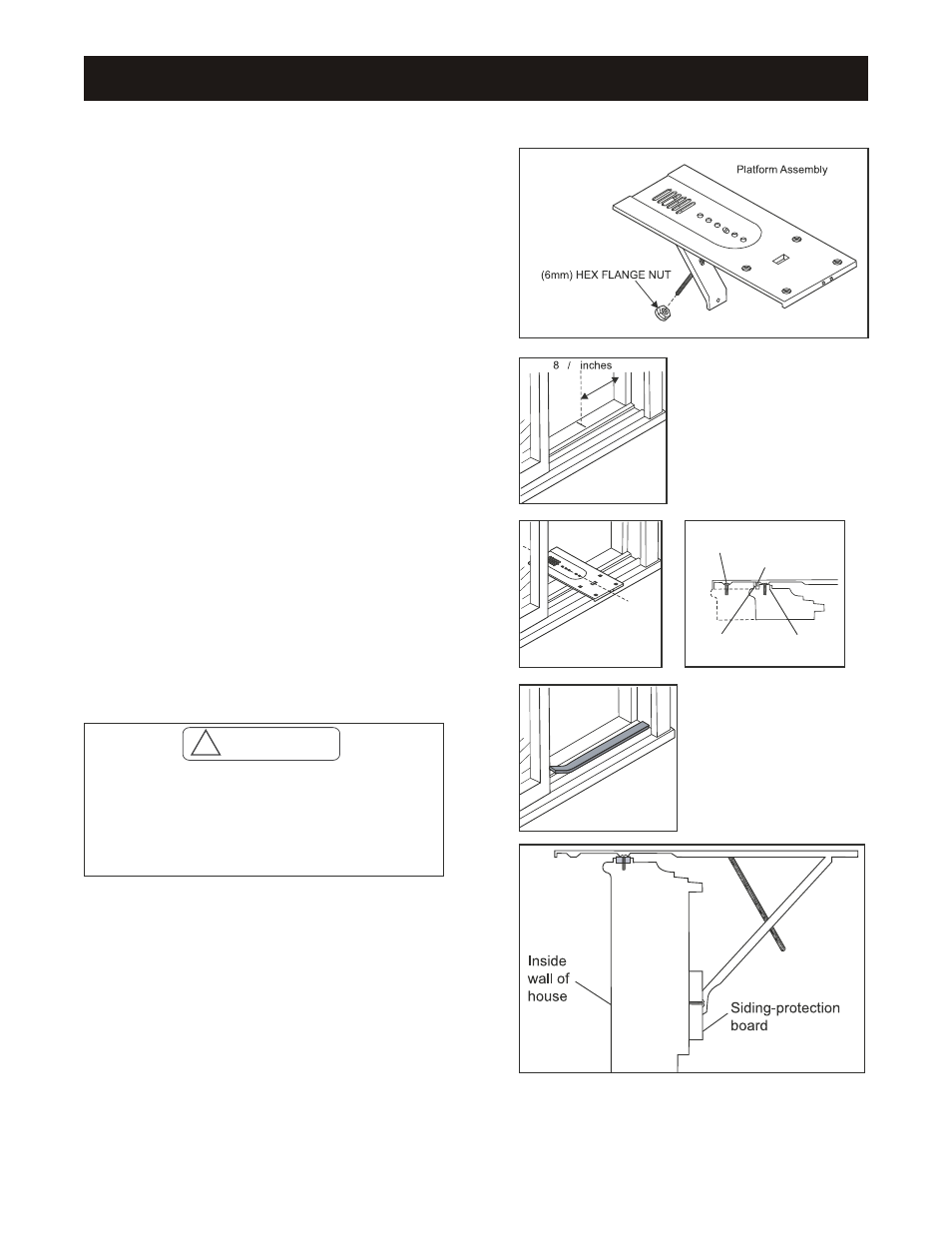

Fig. 1

Fig. 2

Fig. 3

Fig. 5

Fig. 4

Center Platform

assembly on the

line with platform

tab pressed against

window track

Apply track seal to

window side of track

Fig. 6
