14

Installing Unit in a Sliding Window (Continued)

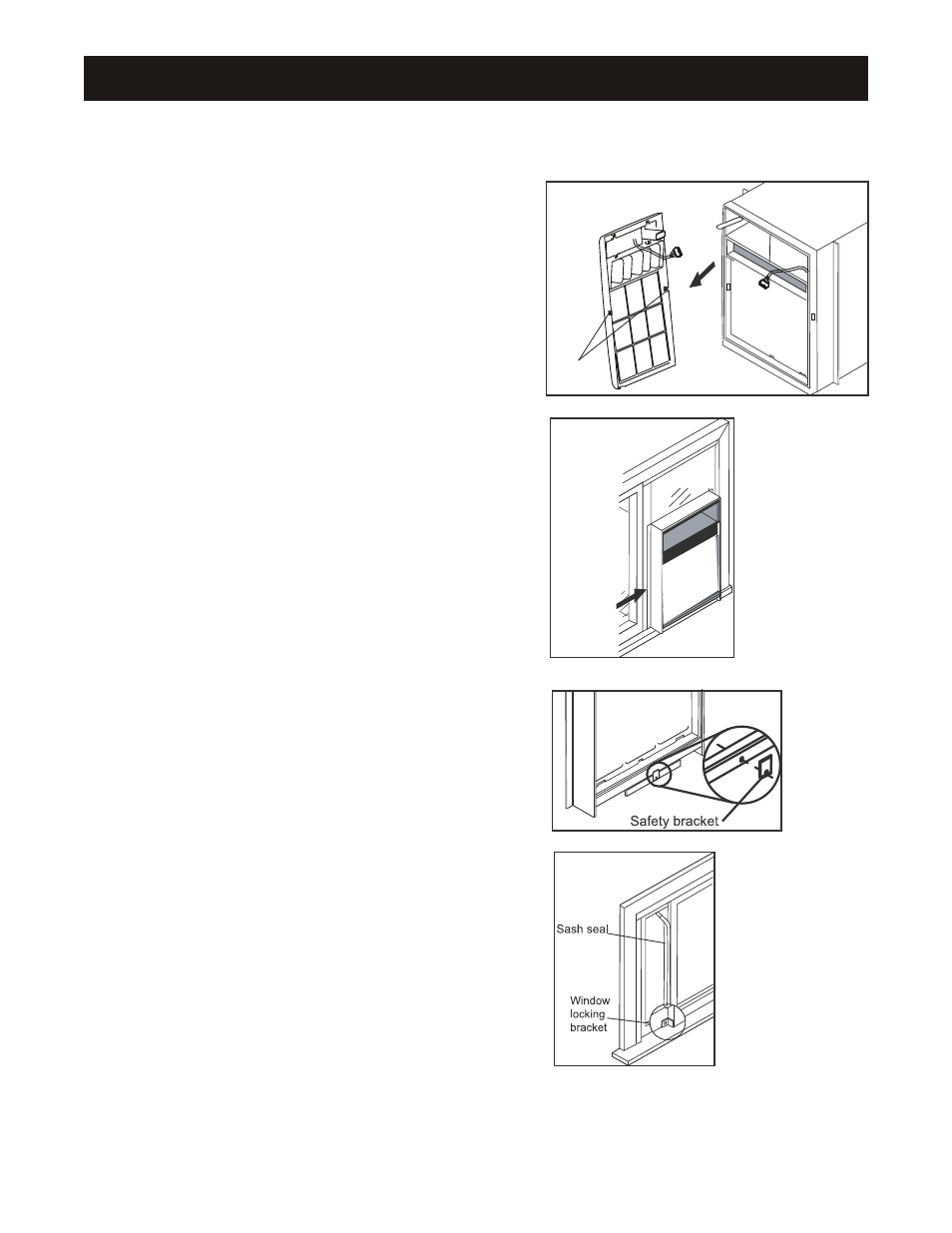

14. To Remove Front (Fig. 12)

1. Remove the two front retaining screws

from the front frame.

2. Gently pull the front out and lift up to

release it from the case.

3. Release the coupler plugs.

NOTE: DO NOT push or pull air direction louvers.

15. Place AC in window opening.

The unit should sit on platform assembly so that

window panel frame, and cabinet side channels

are against top and side window jambs. (Fig. 13)

16. Slide inner window sash firmly against side

of cabinet.

Make sure not to peel the seal strips from the window

track and cabinet side channels. If the panel frame

does not fit snugly to the inner window sash, secure

the panel frame to the sash with 3/4” screws, or 3/4”

self-threading screws. Use the partially plugged holes

in the panel frame. Drill 1/8” pilot holes for the screws.

17. Hook the safety bracket. (Fig. 14)

The safety bracket should be hooked over the base

of the unit and fastened to the front of the platform

assembly. Use a 3/4 inch self-threading screw.

NOTE: The bracket prevents movement of the air

conditioner (either in or out) after completing the

installation.

18. Stuff the foam seal strip/sash seal.

Stuff the foam seal strip between the vertical sash and

the window glass. (Fig. 15)

19. Lock the inner window sash.

Using the window locking bracket, lock the inner

window sash to the base of the outer window sash.

Use one 3/4” screw, or 3/4” self-threading screw.

(Drill 1/8” pilot hole).

20. To Replace the front.

First, reconnect the coupler plugs. Make the exhaust

control positioned through the front in the proper

location. Then, replace the retaining screws that hold

the panel in place.

Do not push or pull the front louvers.

Front

Retaining

Screw

Fig. 12

Fig. 13

Slide inner

window sash

firmly against

cabinet

Fig. 14

Fig. 15

INSTALLATION INSTRUCTIONS (CONTINUED)
