Preparing for Installation
Installation Tips:
For wood-frame casement windows:
It may be necessary to construct a frame,
using at least 1-inch thick wood, with a
15 1/2-inch wide opening.
For brick or cement building construction:
It may be necessary to put a wood stool strip
under the unit, for mounting purposes.
1. Make sure you have
all the necessary parts.

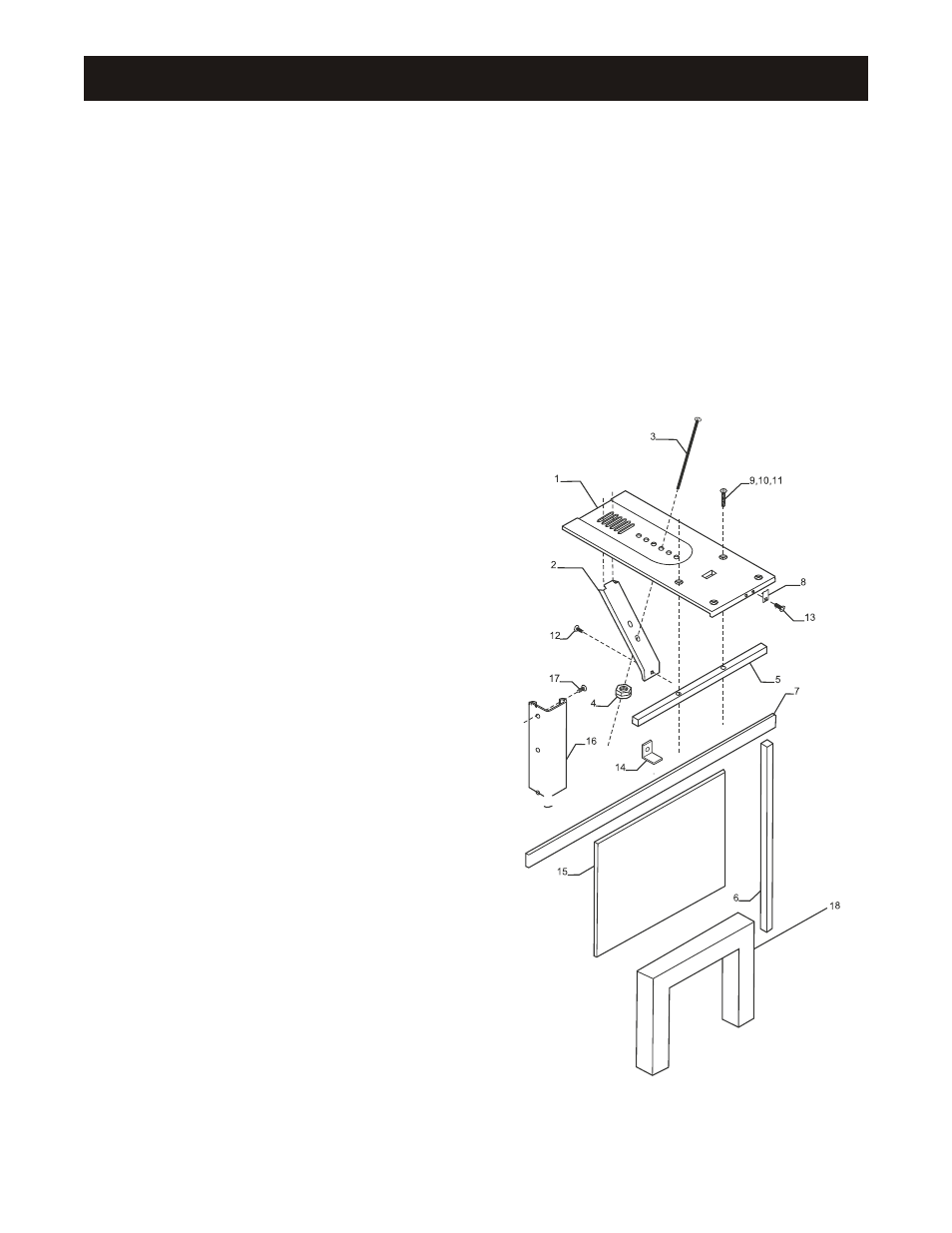

Installation kit contents:
1. Platform (1)
2. Support brace (1)
3. Adjustment bolt (1)
4. Hex flange nut-1/4” (1)
5. Track seal (1)
6. Side channel seal (1)
7. Foam seal strip/sash seal (1)
8. Safety bracket (1)
9-11. Screw- 2 1/2” (2), or
Screw- 1 3/4” (2), or
Screw- 1” (2)
12. Screw- 3/4” (6)
13. Screw- 3/4” self-threading (7)
14. Window locking bracket (1)
15. Plastic window panel (1)
16. Side channel (2)
17. Screw- 3/8” (6)
18. Panel frame/seal assembly (1)
Tools Required (Not included):
Flat-head screwdriver
Phillips-head screwdriver
Carpenter’s level
Tape measure
Fine tooth saw
Electric or hand drill
NOTE: These instructions describe installation in a typical wood framed window with a wood SLIDE-BY sash,
or installation in a metal CASEMENT window. Modification may be necessary when installing in windows made
differently than those shown in these instructions. A high window accessory kit is available for window heights
up to 62” (1575 mm).
INSTALLATION INSTRUCTIONS
