Louver Assembly
17
10 x 10 Flat Top Louvered Pergola

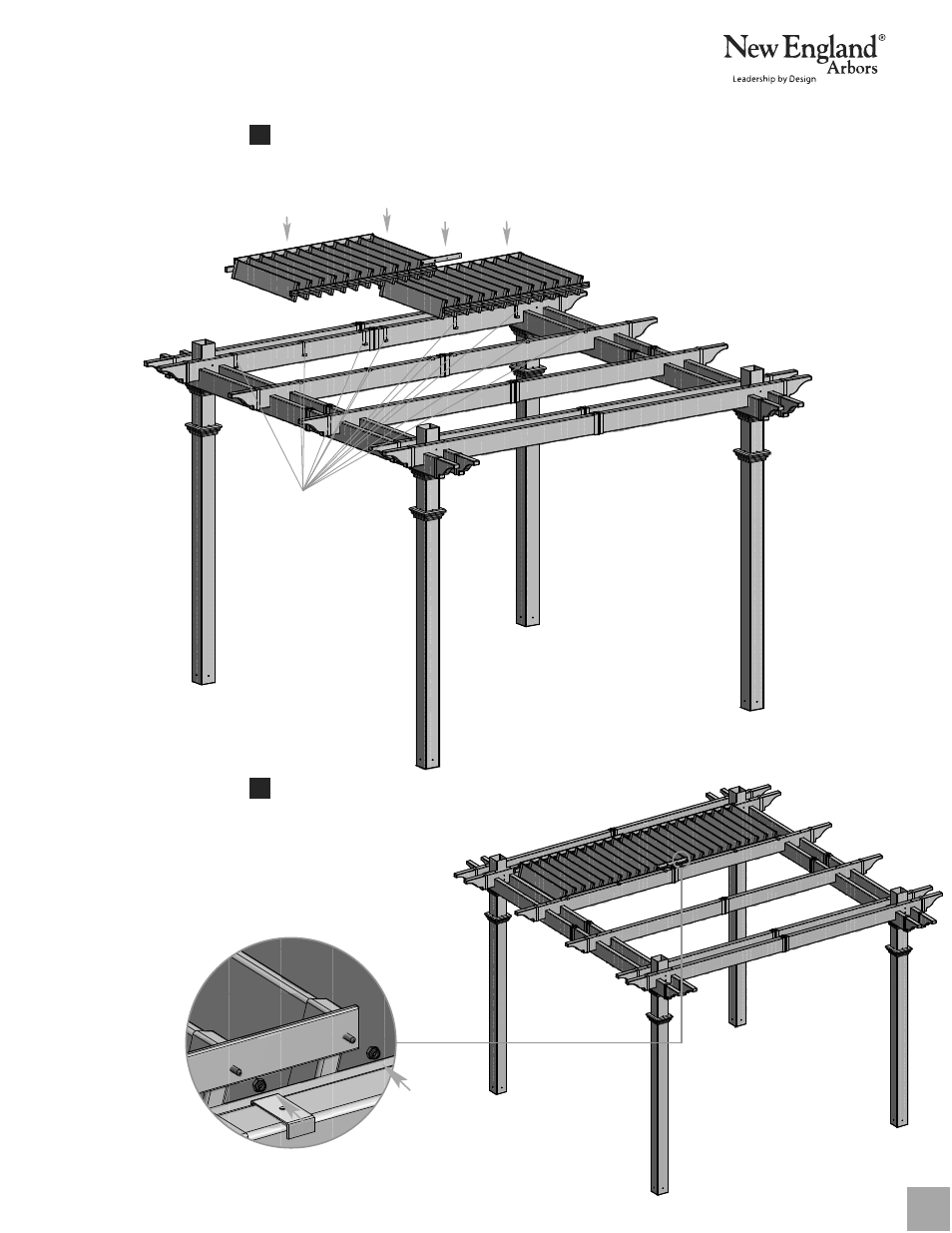

Place twelve Steel Holder Brackets as shown below and care-
fully lower the Louver assembly onto the steel brackets.
Do not screw the Steel Holder Brackets in place at this point.
Fasten the Short Louver Bar using two nuts as shown.
Do not over tighten.
You will need to raise the middle section momentarily
to do this step.
5
www.newenglandarbors.com
Steel Holder Brackets
6
6
Note: check that the holes are closer to
the bottom as shown.
Install in order (one row at a time)
