New England Arbors VA84250 - Manual

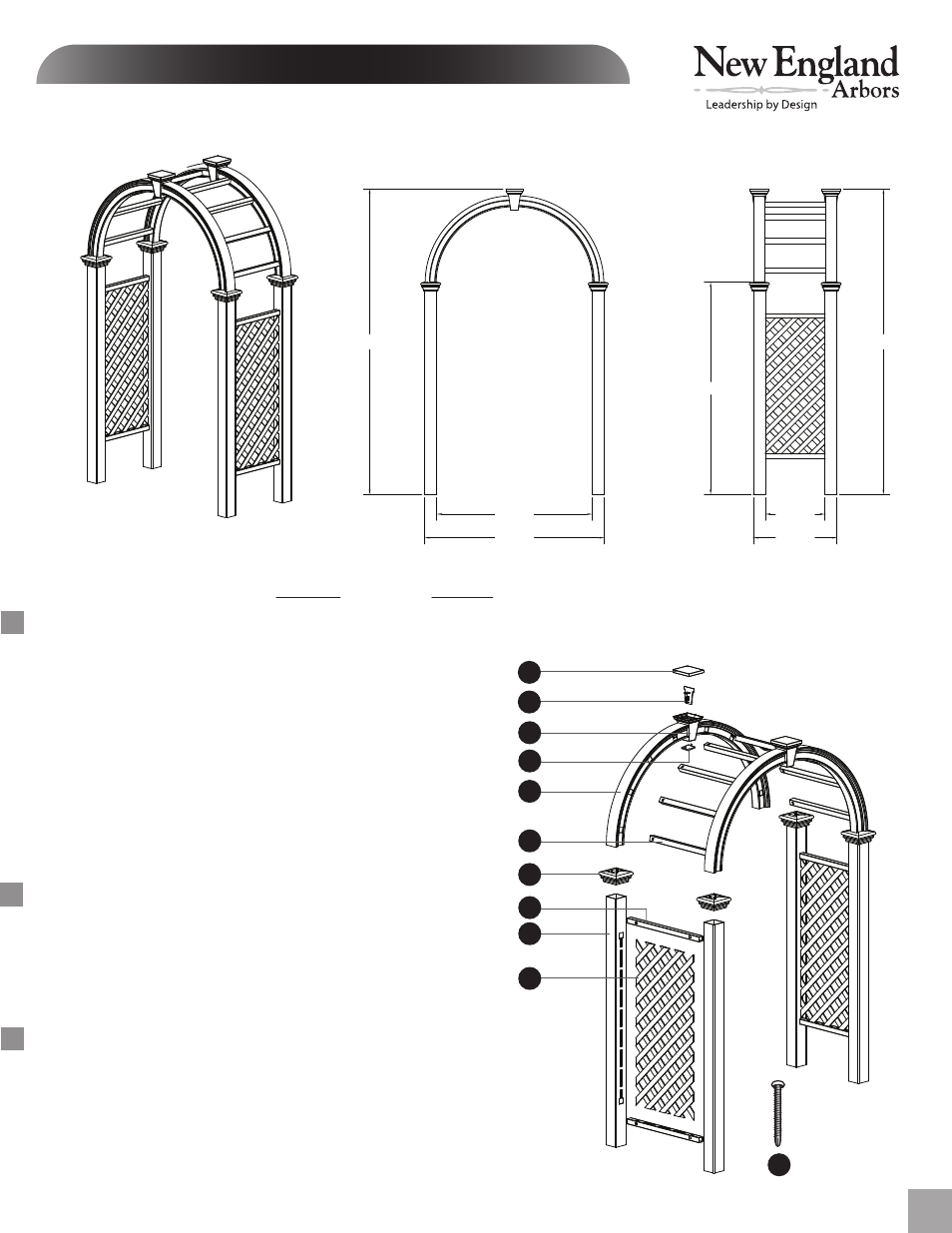

Check Box for These Contents
In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346, ext #20 (Mon. to Fri. 8:00 AM to 4:00 PM EST).
1. Keystone Top Lid (2)
2. Keystone Internal Connectors (2)
3. Arch Keystones (2)
4. Keystone Bottom Plate (2)
5. Arches (4)
6. Arch Rafters (8) 1 1/2” x 1 1/2” x 25.9"
7. Post Caps (4)
8. Side Panel Horizontal Rails (4) 1 1/2” x 1 1/2” x 27.7”
9. Posts (4) 4’x4‘x70.5“
10. Side Panel Diamond Lattice (2)
11. #8 x 1 1/2 in. (3.8 cm.) Stainless Steel Screws
(for Keystone and
Arch to Post Connection) (24)
Tools You Will Need
• Hammer
• Tape Measure
• Level
• Stool or Short Ladder
• Shovel or Auger
• Cordless Drill
General Information
• Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e. shipping box) to avoid scratching.
• We recommend an area approx 10’x 8’ for unobstructed assembling.
• You should not need to use excessive force when assembling components.
The Nantucket Legacy Arbor
Please read through before starting assembly.
A S S E M B LY I N S T R U C T I O N S
11
1
(Not to scale)
IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.
www.newenglandarbors.com
Ver 1/Sept 2009
102 1/4 in.
52 in.
60 in.
102 1/4 in.
20 in.
28 in.
71 in.
6
10
9
8
7
5
3
4
1
2
