New England Arbors VA84231 - Manual

Check Box for These Contents
In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346, ext #20 (Mon. to Fri. 8:00 AM to 4:00 PM EST).
1. Rafters (8) 1 1/2” x 4 1/2” x 38"
2. Pergola End Caps (20)
3. Post Caps (4)
4. Posts (4) 4” x4” x 84"
5. Post Trims (4)
6. Carrying Beams (4) 1 1/2” x 4 1/2” x 46 1/2"
7. Side Panel Top-Rails (2) 1 1/2” x 1 1/2” x 31 5/8“
8. Side Panel Vertical Spindles (10) 7/8” x 1 1/2” x 10 3/8”
9. Side Panel Middle Rails (2) 1 1/2” x 1 1/2” x 31 5/8“
10. Side Panel Square Lattices (2) 1/2” x 26 1/2” x 47 3/4”
11. Steel Stiffener Inserts (2)
12. Carrying Beam Coupler (2) 1/2” x 4 1/2”
13. Side Panel Horizontal Bottom Rails (2) 1 1/2” x 1 1/2” x 31 5/8"
14. 3 in. (7.6 cm.) Stainless Steel Screws (44)
15. Tube of Vinyl Glue (1)
Tools You Will Need
• Hammer
• Tape Measure
• Level
• Stool or Short Ladder
• Shovel or Auger
• Cordless Drill
General Information
• Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e. shipping box) to avoid scratching.
• We recommend an area approx 10’x 8’ for unobstructed assembling.
• You should not need to use excessive force when assembling components.

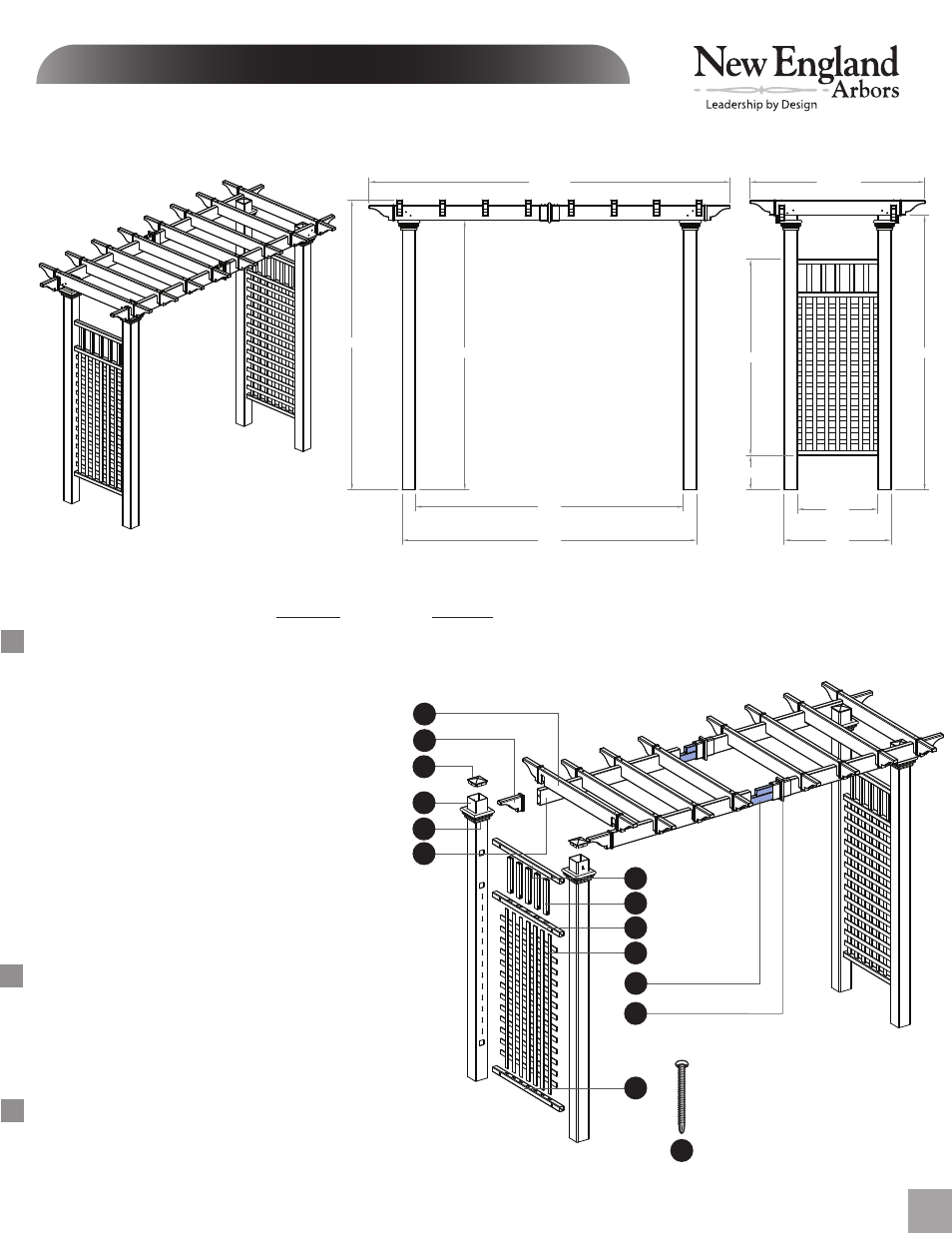

The Fairfield Grande Arbor
Please read through before starting assembly.
A S S E M B LY I N S T R U C T I O N S
1
IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.
www.newenglandarbors.com
(Not to scale)
14
Ver 2/OCT 2010
24 in
32 in
10.3 in
58.5 in
82 in
52.25 in
80.5 in
80 in
88 in
86.5 in
107.75 in
10
9
8
7
2
4
13
1
6
5
3
11
12
