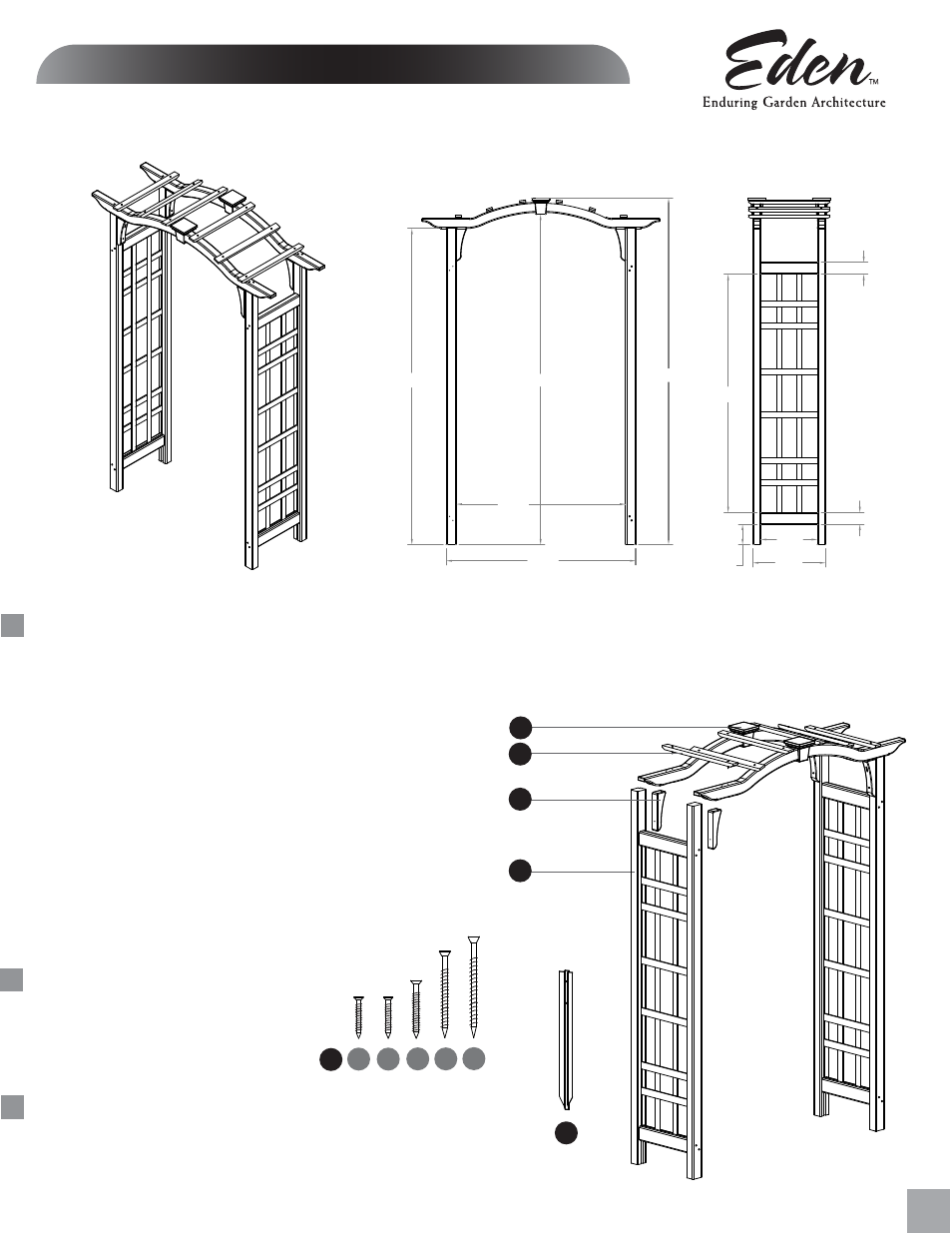

Check Box for These Contents
In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346, ext #20 (Mon. to Fri. 8:00 AM to 4:00 PM EST).
1. Preassembled Arch (2)
2. Arch Rafters (6)
3.
4.
Braces (4)
5.
Preassembled Side Panels (2)
6.
Hardware
a)
c)
1 1/2” Wood Screws (12) To attach rafters to arch
Tools You Will Need
• Cordless Drill
• Tape Measure
• Level
• Short Ladder
• Shovel
General Information
Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e. shipping box) to avoid scratching.
• We recommend an area approx 10’x 8’ for unobstructed assembling.
• You should not need to use excessive force when assembling components.
The Westwood Arbor
Please read through before starting assembly.
Ground Stakes (4)
2” Wood Screws (4) To attach braces to arbor posts
d) 3” Wood Screws (4) To attach braces to swoop top arch
b) 1 1/2” Wood Screws (8) To attach ground stakes to posts
e) 3 1/2” Wood Screws (8) To attach swoop top arches to posts
A S S E M B LY I N S T R U C T I O N S
1
www.edenarbors.com
5 a
Not to Scale
b
Ver 1.1/FEB 2011
4
1
2
3
c
6
14 in
18 in 5 in
3 in
59.0 in
3 in
42 in
81.9 in 78.4 in
47 in
85.9 in
d e
