New England Arbors VA42023 - Manual

Decorative Arch Kit
Assembly & Installation
1
www.edenarbors.com

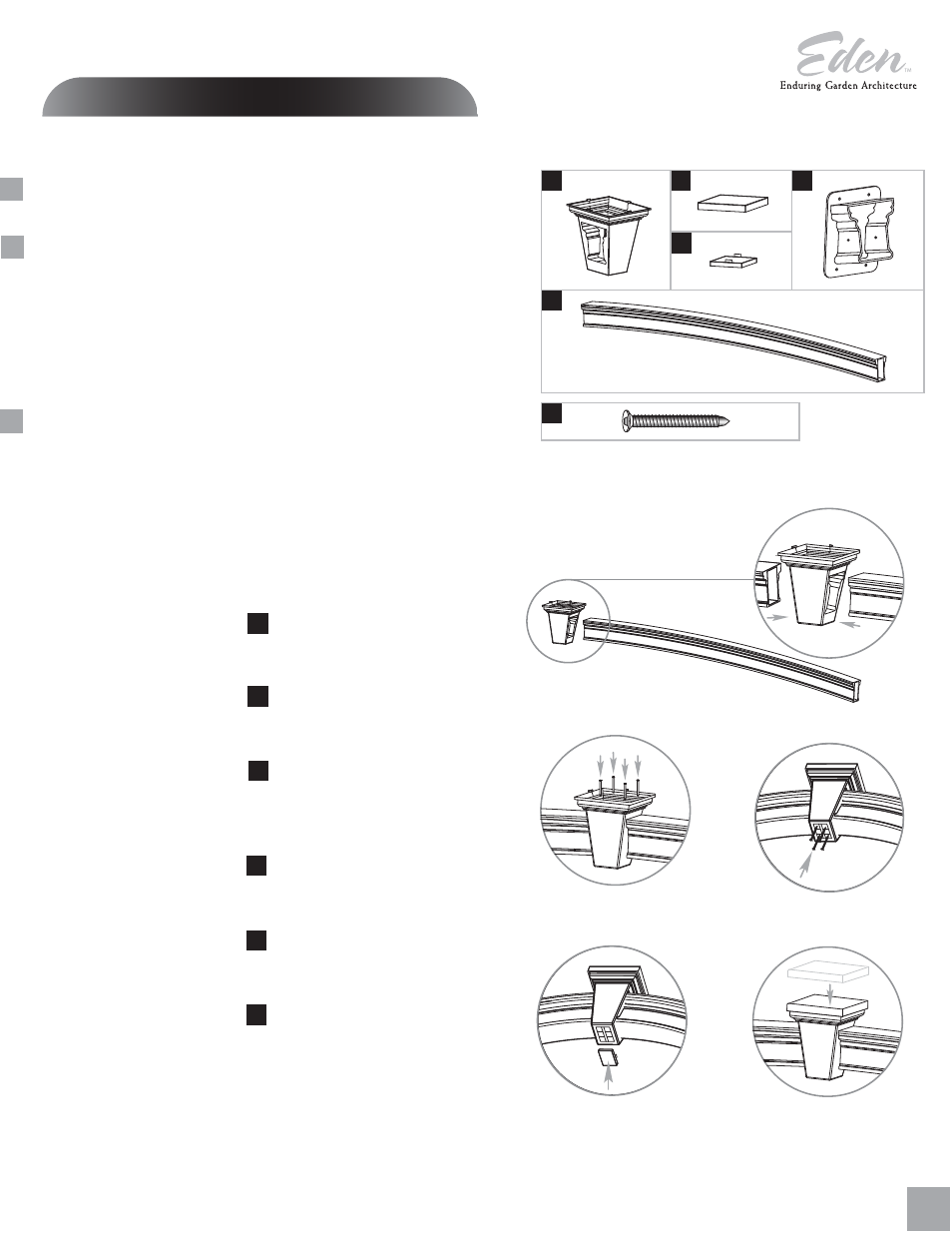

Insert arches into keystone ensuring they terminate flush to
the internal connector.
Fasten the top of the arch to the keystone by installing two screws
into the flanges on either side of the insert (2 on each side).
Invert the arch system and install two screws on either side of the
insert (2 on each side). This will connect the bottom of the arch
to the keystone insert.
Seal the bottom hole on keystone by inserting the bottom plate
as provided.
Install the top cap on keystone. Ensure the cap is pushed down
firmly so the cap locks into position.
Repeat for other arch.
(Contiinued on following page...)
1
2
3
4
5
15
The Decorative Arch
Decorative Arch Kit Materials List
Number of Shipping Boxes
The Decorative Arch Kit is shipped in one box.
Check Box for These Contents
In the event of missing or defective parts please call our customer service
dept. at 1 800 282 9346, ext #20 (Mon. to Fri. 8:00 AM to 4:00 PM EST).
A. Keystones (2)
B. Keystone Lids (2)
C. Keystone Bottom Plates (2)
D. Post Mounting Brackets (4)
E. Arches (4)
Hardware
(in plastic bag)
F. 1 1/2” Self-Augering Stainless Steel Screws (40) (for Brackets and keystone)
A B D
E
Not to Scale
O P T I O N A L
(Sold Separately)
F
6
3 2
C
5 4
