New England Arbors VA20234 - Manual

Check Box for These Contents
In the event of damaged, missing or defective parts please call our customer service dept. at 1 800 282 9346, ext #20 (Mon. to Fri. 8:00 AM to 4:00 PM EST).
1. Corner Post (1) 3” x 3” x 43”
2. Top Rails (2) 1 1/2” x 1 1/2” x 44.73”
3. End Post (2) 3” x 3” x 38”
4. 18” Pickets (6) 7/8” x 3” x 18”
5. 19” Pickets (2) 7/8” x 3” x 19”
6. Bottom Rails (2) 1 1/2” x 1 1/2” x 44.73”
7. 20 1/2” Pickets (2) 7/8” x 3” x 20 1/2”
8. 23” Pickets (2) 7/8” x 3” x 23”
Optional Materials
3 Bags of pre-mix concrete for extra post stability.
Tools You Will Need
• Shovel
• Tape measure
General Information
Read Instructions through carefully before
beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e. shipping box) to avoid scratching.
• We recommend an area approx 10 ft. x 8 ft. for unobstructed assembling.
• You should not need to use excessive force when assembling components.
Country Corner Picket
Please read through before starting assembly.
IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.
ASSEMBLY INSTRUCTIONS
1
www.edenarbors.com

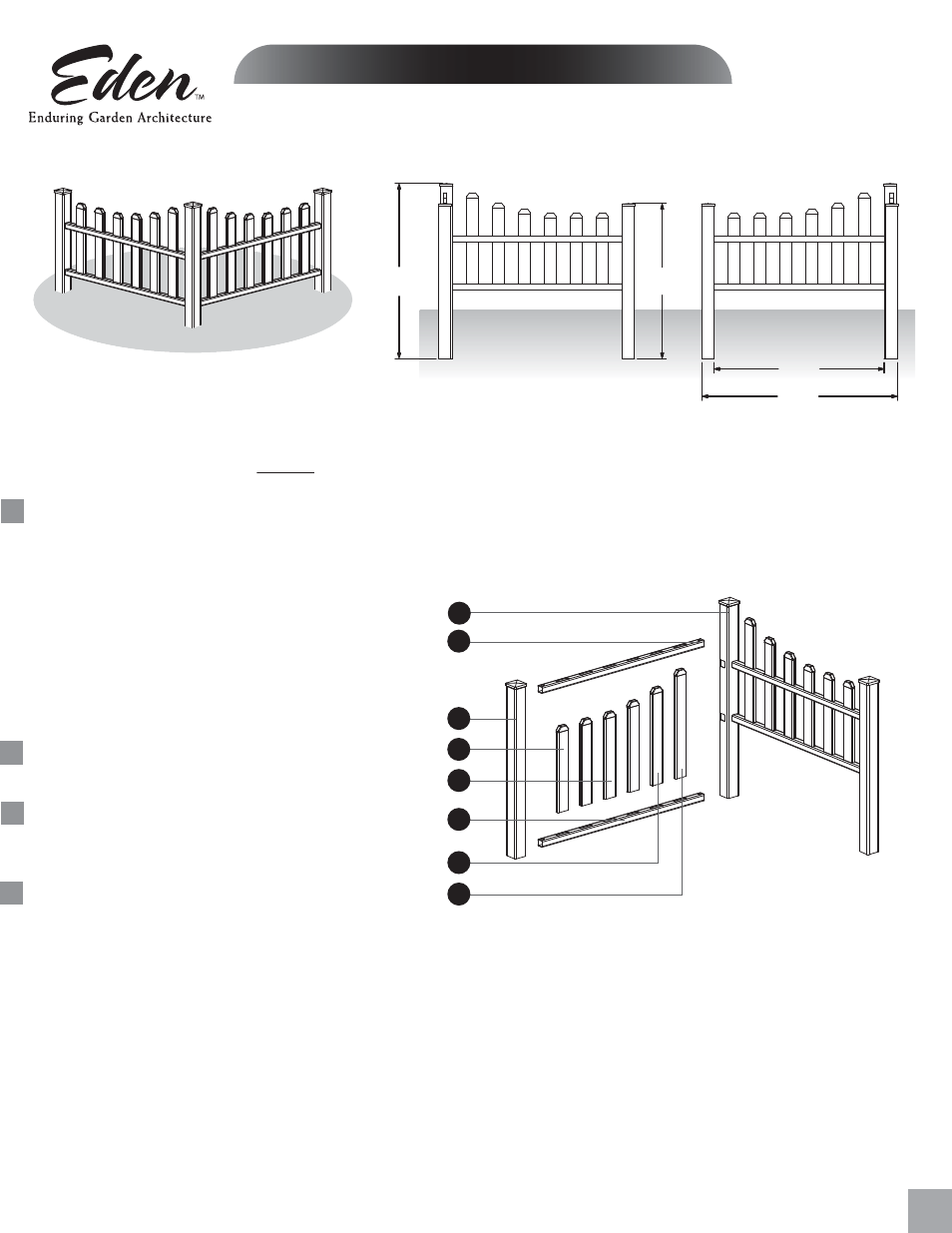

43.7 in
110.9 cm
Ver 2/Oct 2008-10-09
7
5
4
3
1
2
8
6
38.7 in
98.2 cm
42.5 in
108.0 cm
48.9 in
124.1 cm
