Page 38

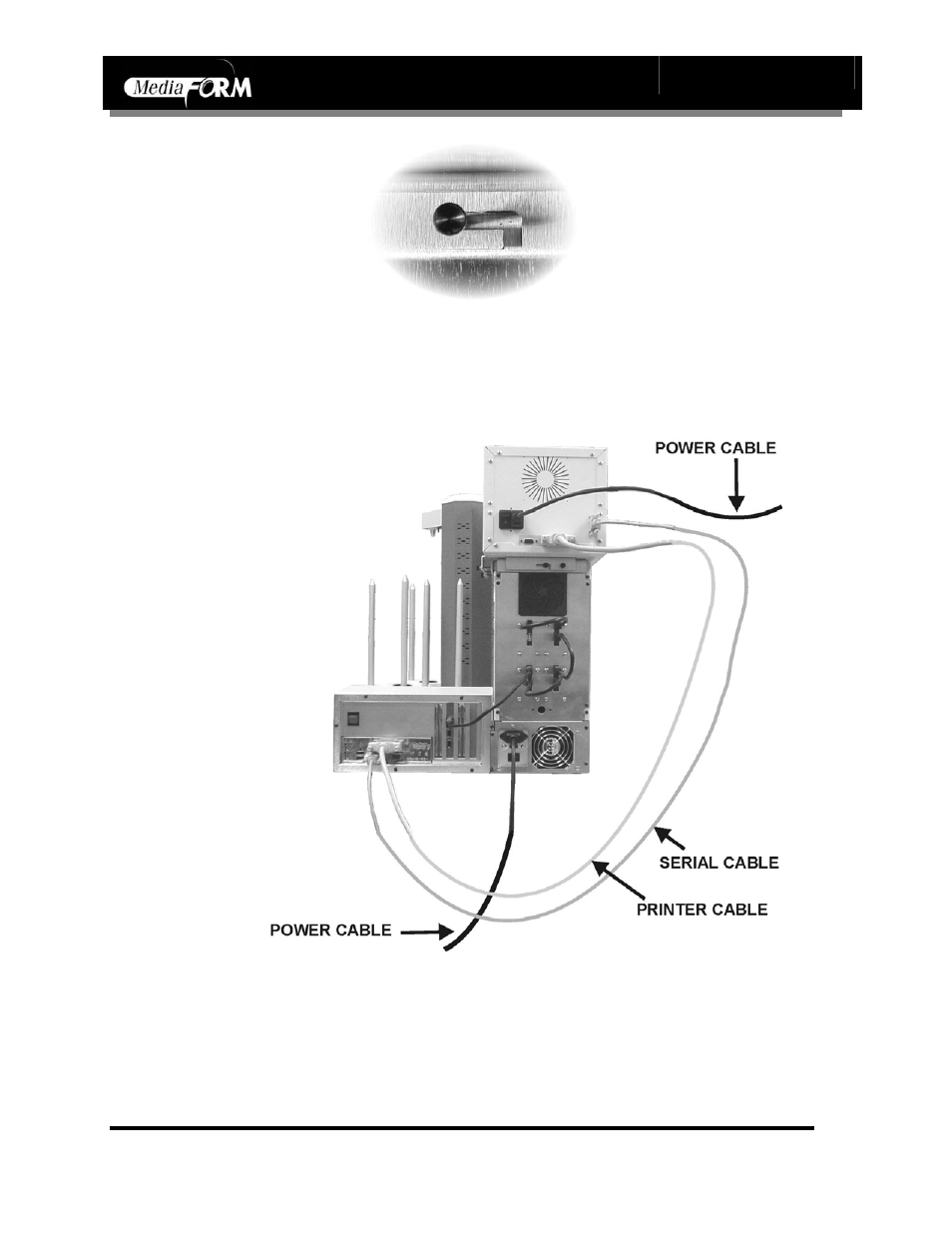

Making the Connection
• Connect the parallel printer cable to the printer port on the back of the
printer, and to the DB-25 female (25 pin) connector on the back of the
QuadraPRO.
• Connect the serial cable from the serial port located on the Spectrum2
printer to the serial port on the back of the QuadraPRO.
• Connect the power cord from the VAC Out on the Spectrum2 Printer to
a wall outlet or power strip.
• Flip the printer’s power switch to the ON position.
