Page 9

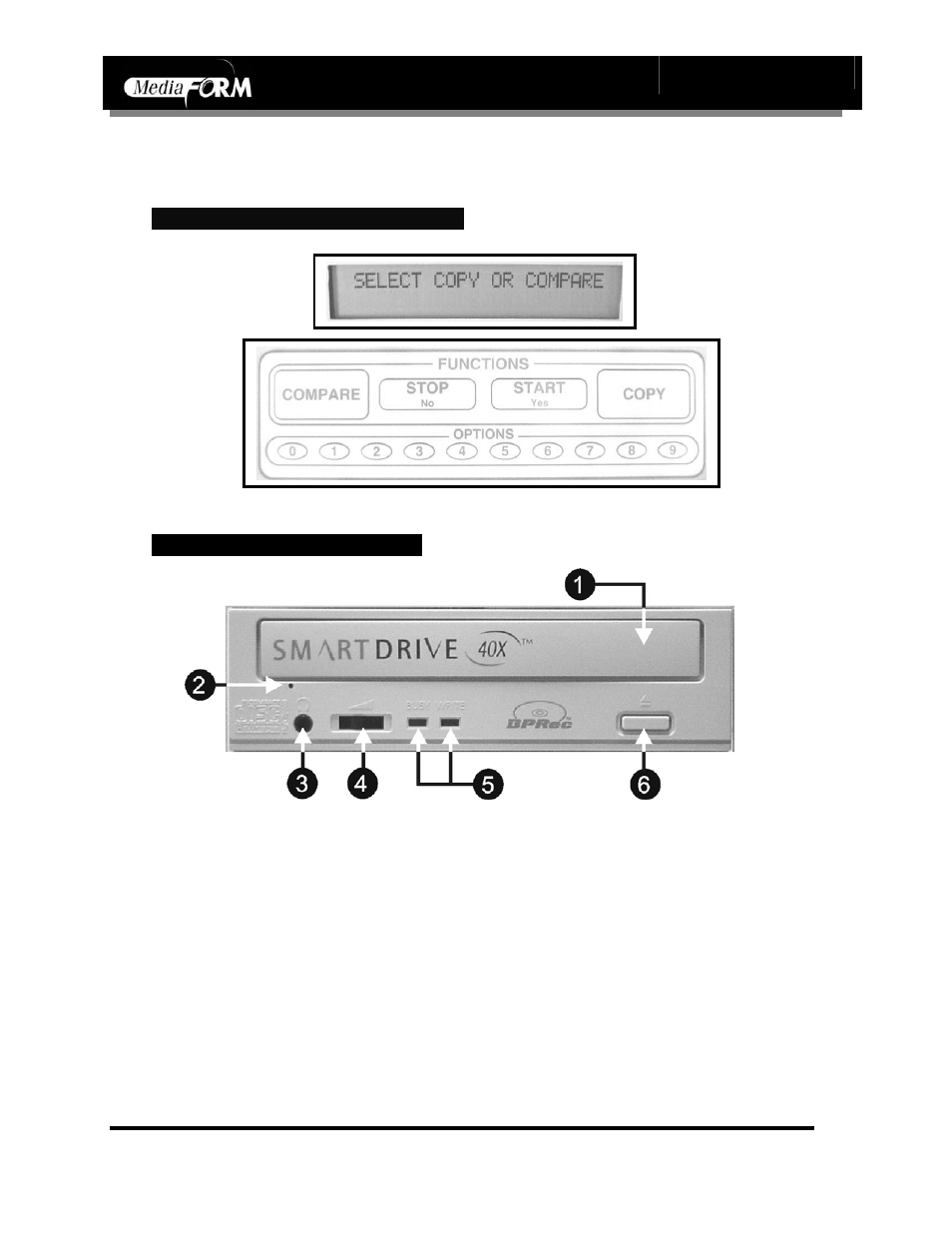

Location Of CD-R/RW Recorder Parts And Controls
LCD Display Screen And Keypad
SmartDRIVE 40X
Legend
1. Disc tray - Discs are loaded and removed from this tray. Pressing the eject
button will open the tray when the power is switched on to the QuadraPRO.
2. Emergency eject pinhole - In the event that the disc tray will not open by
pressing the eject button, insert the tip of a large paper clip into this hole and
push.
3. Earphone jack
4. Volume Control
5. Read and write status LEDs - These indicators light up when the recorder is
reading or writing.
6. Eject button - This button is used to open or close the disc tray.
