4.5.1.3 VISA-1 Loopback Test
Teridian used the RFI Global test lab in the UK (listed on the
testing. This lab used the VISA test suite for their EMV Level I qualification test services.
shows the VISA-1 test flow which is specific to RFI’s test scripts. Source code for this test is also
included in the release.
Initialization
Enter Delay Time
(in Secs)
Power-Up Ok
(Good ATR)?
SELECT FILE
1PAY.SYS.DDF01
EMV Power
Down
M/m
Any other Key
Warm Reset OK?
Yes
No
APDU Exchange
No
Exchange OK?
End of Record?
or No Record?
Enter (M/m) Multi-
or (anykey) Single
Shot?
Delay Time Wait
EMV Power Up
Negotiable Mode?
No
PPS OK?
Yes
SingleShot?
Yes
No
No
Yes
No
Yes
READ RECORD
(00 B2 'P1' 0C 00)
Yes
P1 = 01
Increment RECORD
Index (P1)
Yes
No
Exchange OK?
Yes
No

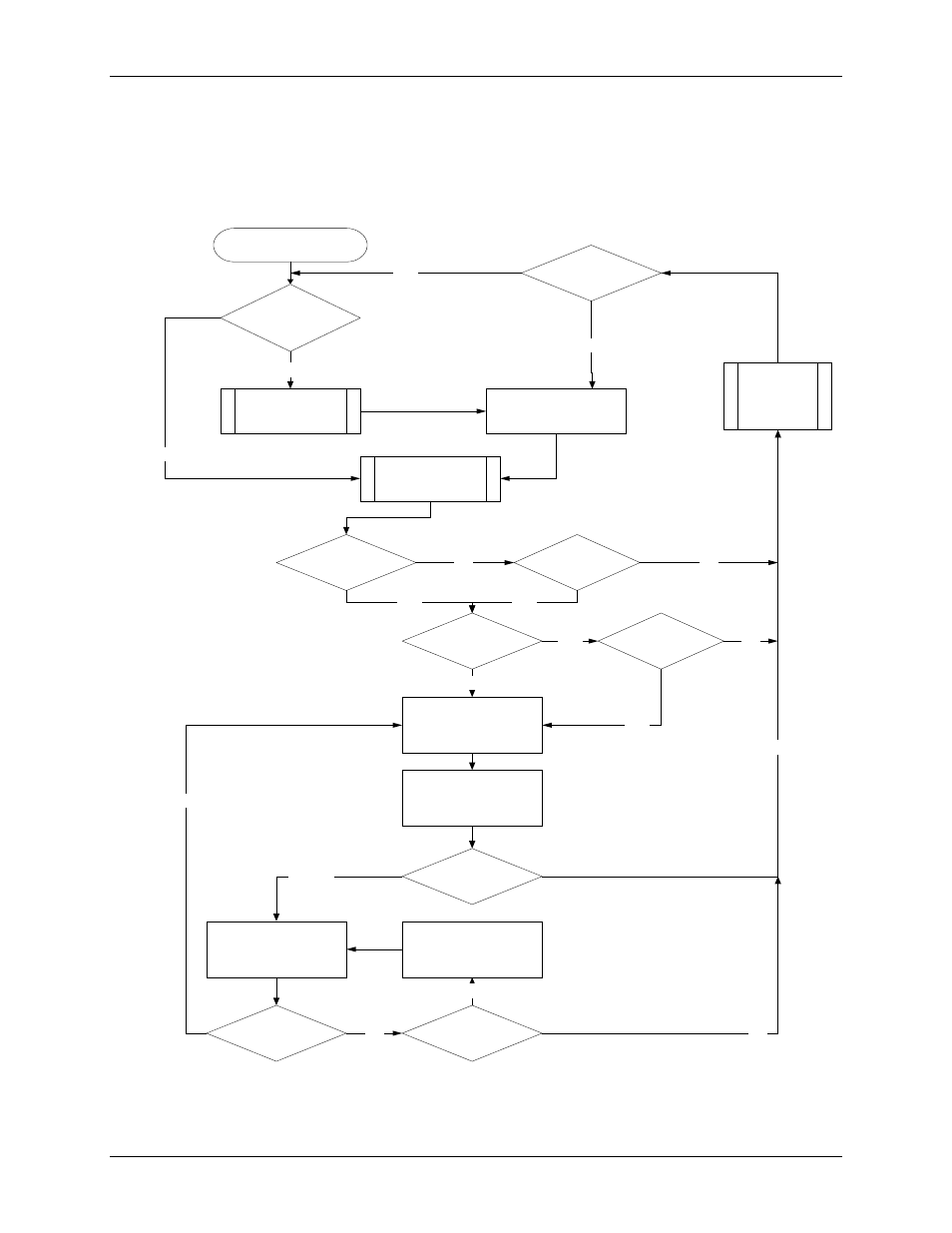

Figure 14: VISA-1 Loopback Test Flow Chart
