Initialization

Get Delay Time

(in Secs)

Power-Up Ok
(Good ATR)?

Start Test by sending a

Block Transfer (0x6F)

with 0 Lenth data

EMV Power

Down

Single Shot

Select Single-Shot or

Loopback test?

Delay Time Wait

EMV Power Up

Yes

SingleShot?

Yes

No

No

No

No

Escape command is sent

with B1 = MCI(10) or

VISA I (20) or VISA II

(40) in EMVmode

Setup EMV Test

Mode

LoopBack

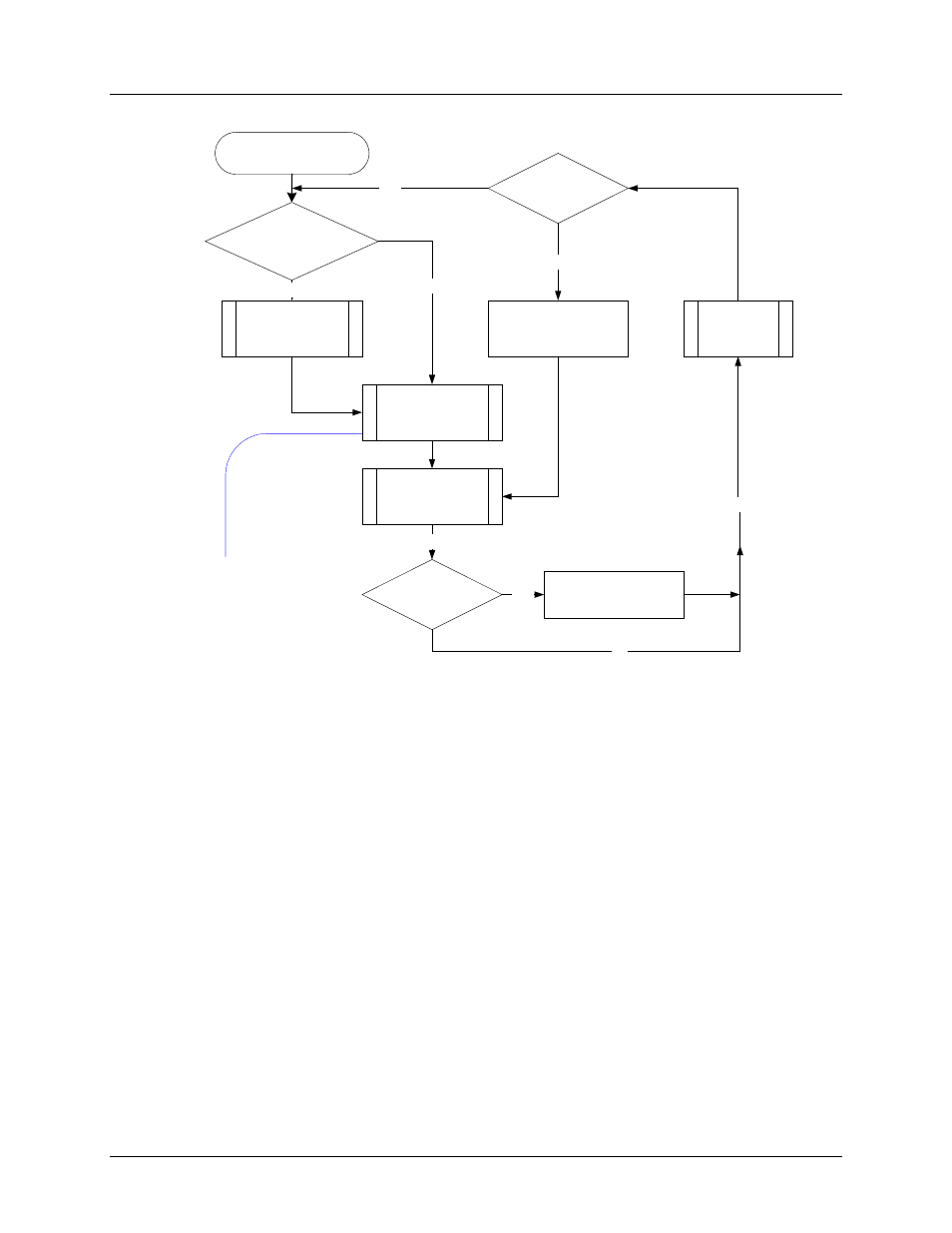

Figure 11: EMV PSE Test Flow Chart


4.5.1.2 MasterCard Loopback Test

Teridian used the CETECOM test lab in Germany and the FIME test lab in France (both listed on the

www.emvco.com

website) for MasterCard Loopback verification. These labs used the MCI test suite for

their EMV Level I qualification test services.

Figure 12

and

Figure 13

show the flow of the entire MCI test suite with the coding to be done on both the

host side (invokes the test) and the device side (manages all aspect of the smart card’s EMV test).
These test flows are specific to both the FIME and the Cetecom’s Level I Protocol test scripts. Source
code is also included in the release.
