Initialization
EMV Power Up
Power-Up Ok
(Good ATR)?
Select File
1PAY.SYS.DDF01
EMV Power
Down
Yes
Warm Reset OK? No
Yes
No
APDU Exchange
R-APDU < 6
bytes?
Yes
Yes
Wait 5 seconds
Exchange OK?
Yes
No
INS='70'? No
No
Extrac Next C-APDU
from R-APDU
No
Negotiable
Mode?
PPS OK? Yes
No
No
Yes

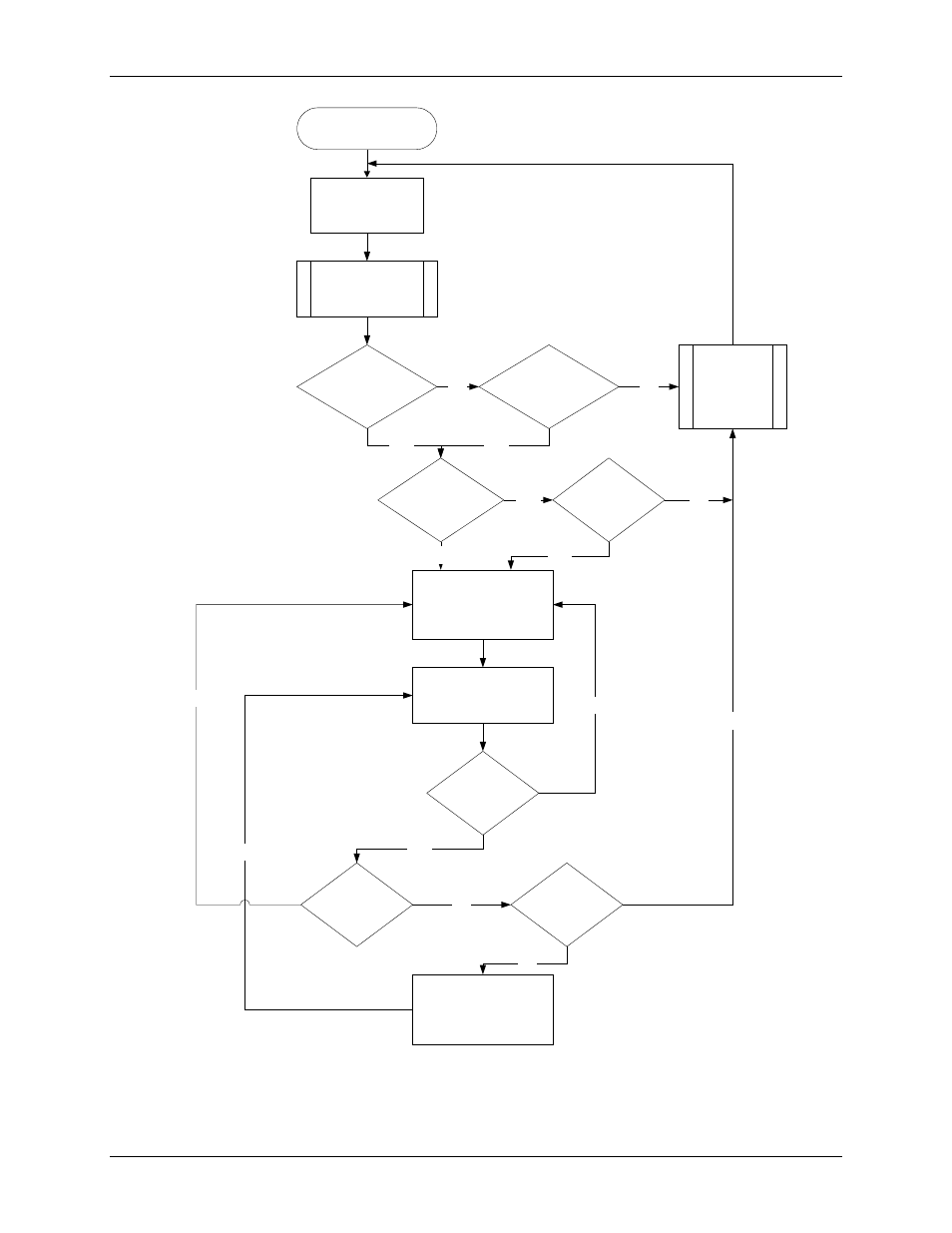

Figure 12: MCI Test Flow Chart with PTS/PPS
