UG_12xxF_016

73S12xxF Software User Guide

Rev. 1.50

15

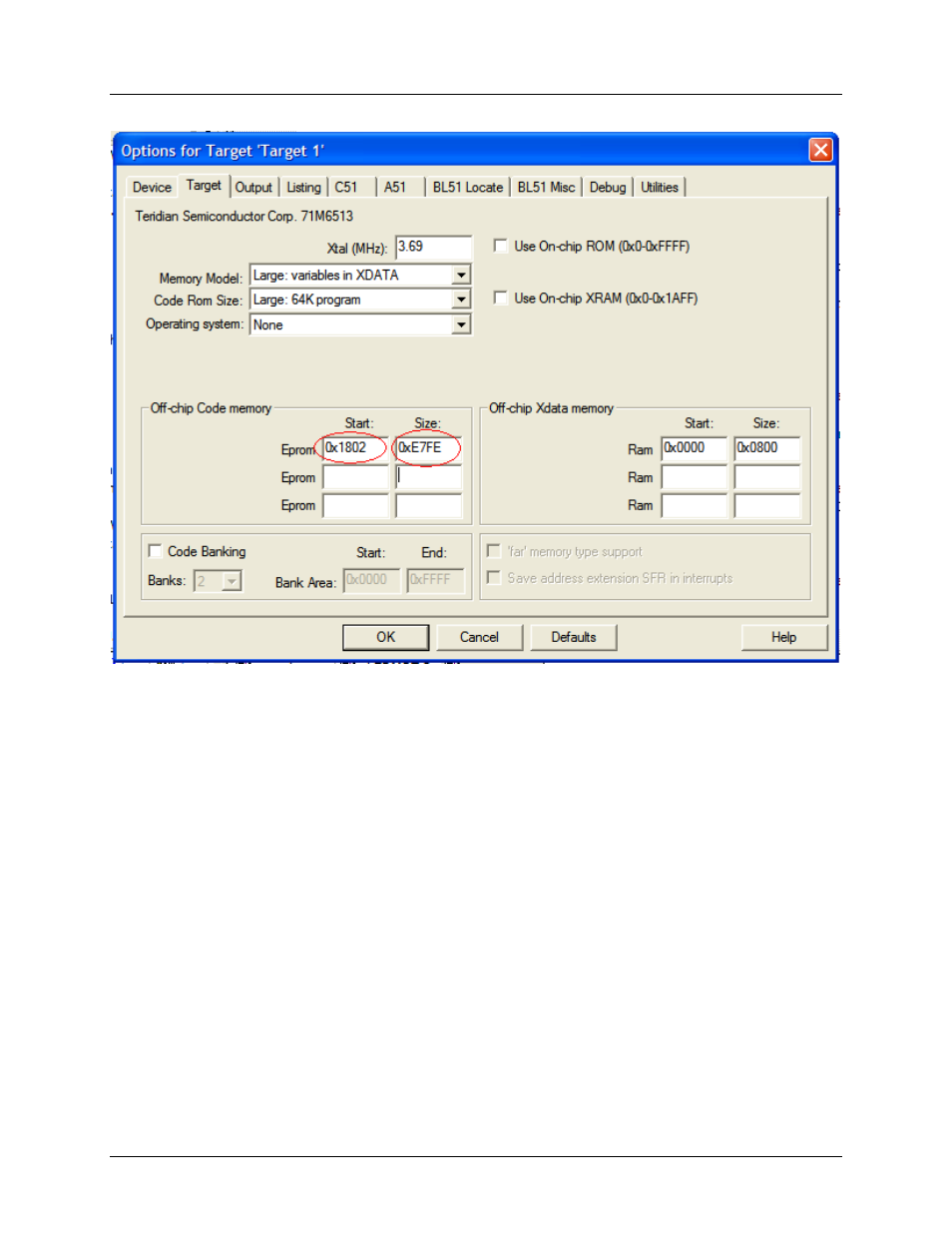

Figure 5: Target Options for Building with the DFU Boot Loader

Figure 5 shows the application’s starting address. It must be set to start at 0x1802. The Flash address
range from 0x0000 through 0x17FF is reserved inclusively for the DFU Boot Loader.
