UG_12xxF_016

73S12xxF Software User Guide

Rev. 1.50

31

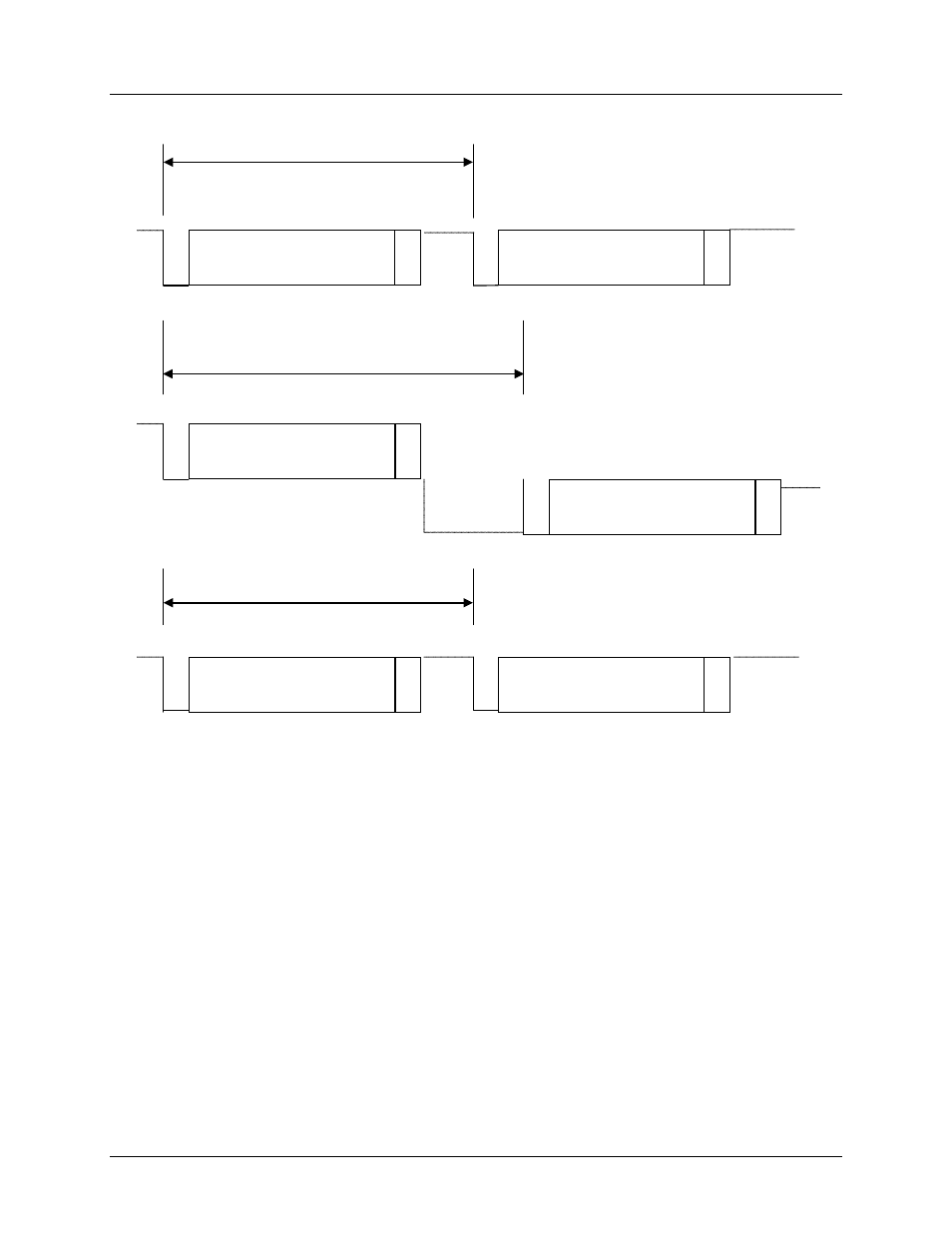

Figure 8: Smart Card Rx/Tx Timing



ICC_InitUART()

Purpose

Initializes the Smart Card UART for the specified ICC.


Synopsis

Void ICC_InitUART ( IN struct ICC_Init_t *pICC_Init );

Struct {

enum ICC_ID IccId,

Boolean IccDetect,

enum ICC_HZ IccHz,

unsigned char FiDi,

Boolean IccProtocol,

Boolean IccEDCEnabled,

Boolean IccEDCTypeCRC,

Boolean IccParityCheck,

Boolean IccBreakGeneration,

unsigned char IccBreakStartPosition,

unsigned char IccBreakDuration,

unsigned char IccRxRetry,

Boolean IccBreakDetect,

unsigned char IccTxRetry,

TX

EGT < t

TX/RX

BGT < t < BWT (T=1) or WWT (T=0)

RX/TX

t < CWT (T=1) or WWT (T=0)

RX
