UG_12xxF_016

73S12xxF Software User Guide

Rev. 1.50

13

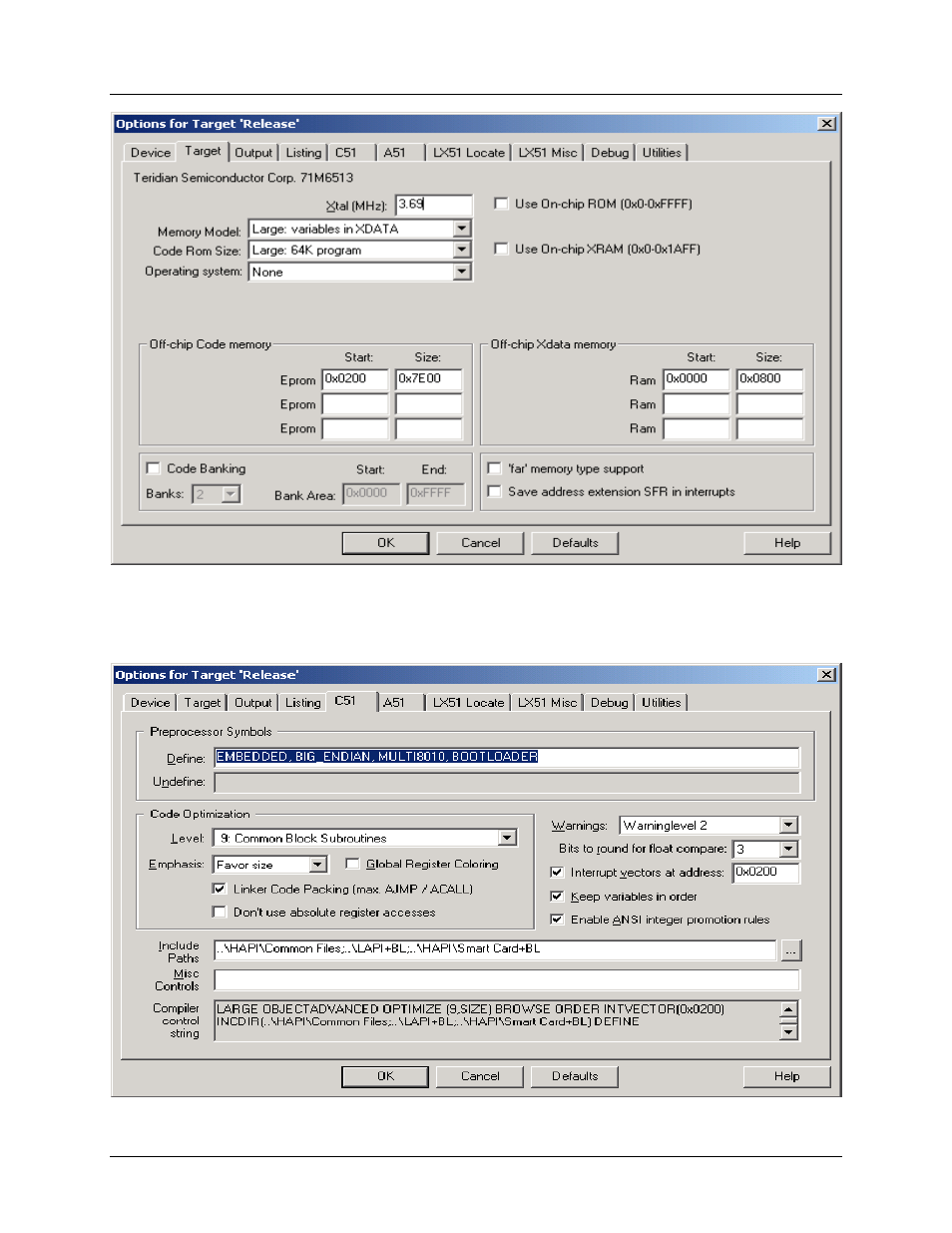

Figure 3: Target Options for Building with the Boot Loader


Off-chip code memory should be set to start at 0x0200 since the first page (512 bytes) of Flash is
reserved for boot code (see Figure 3).

Figure 4: C51 Options for Building with the Boot Loader
