3-13
Compaq Integrated Remote Console User Guide
Writer: Caroline Juszczak Project: Compaq Integrated Remote Console User Guide Comments: 281862-00x
File Name: D-CH03.DOC Last Saved On: 11/20/98 12:55 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
5. After verifying the phone number, click Dial. You should be prompted
with a status dialog box and hear the modem establishing connection
with the managed server.

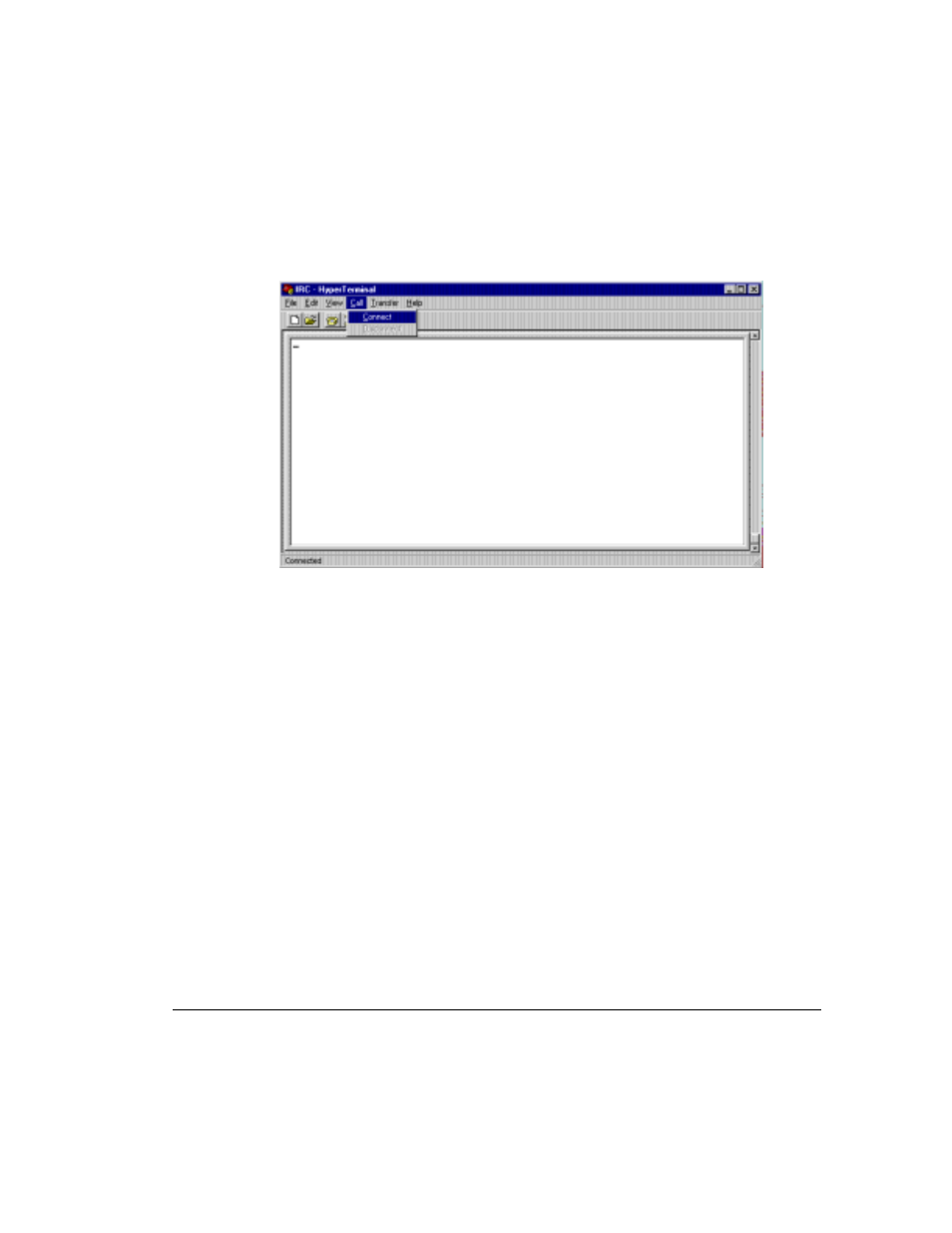

Figure 3-7. Establish a connection using HyperTerminal
The HyperTerminal application should indicate that a call is in progress. If
configured correctly, IRC answers the call. If the server does not answer answer
(possibly indicating that the OS currently owns the modem), wait 60 seconds
and try again. For more troubleshooting information, see Appendix C.
Upon connection, the status dialog box closes and returns you to the terminal
window. Notice that the status bar of the terminal window indicates
“Connected.”
