10. Set the COM and IRQ IRQ resources to match the jumper settings on
the modem. Note these settings as they are needed when configuring
Integrated Remote Console.

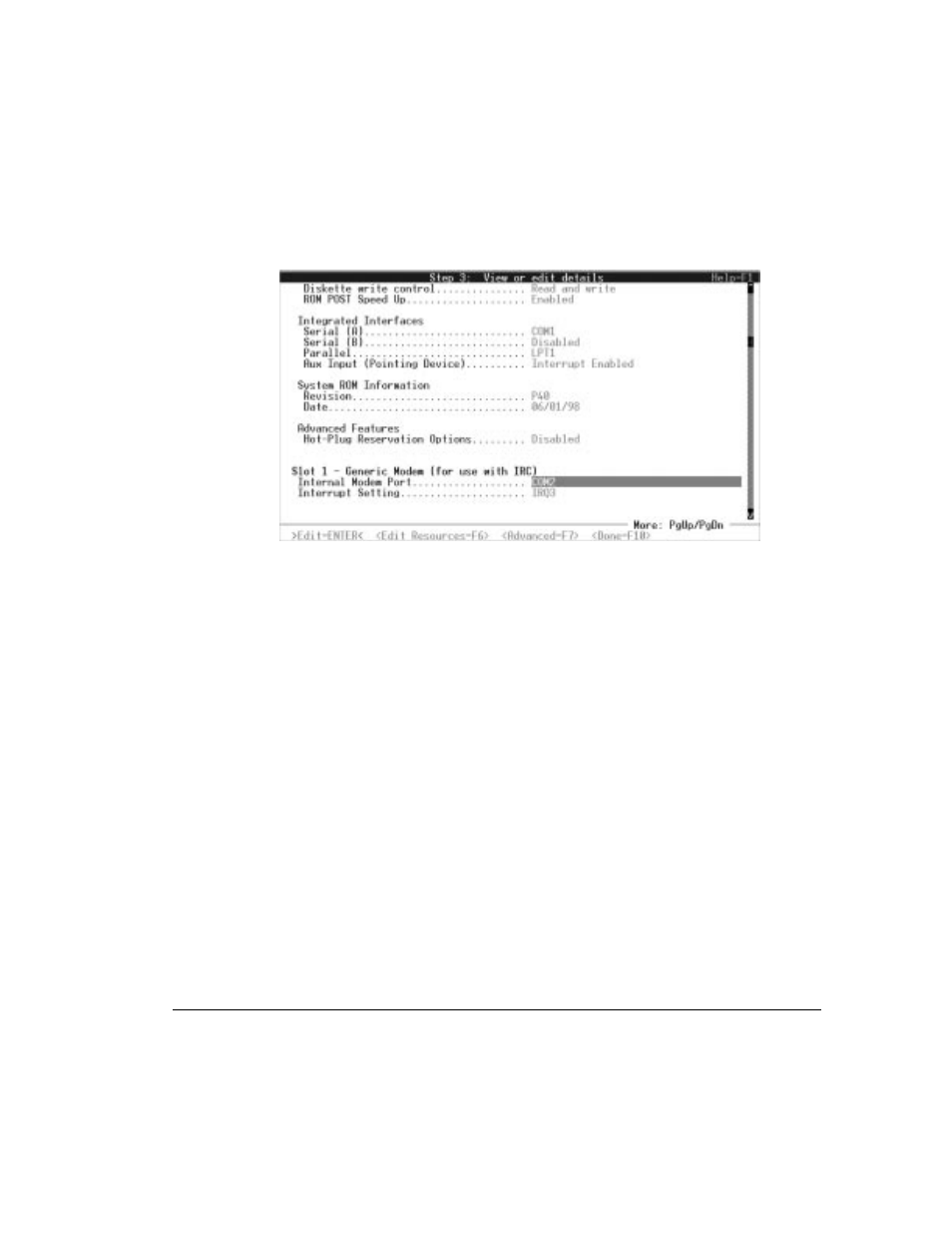

Figure 2-2. Example: Setting the COM and IRQ resources
Configuring an external modem or direct connection
If you are using an external modem or want to connect IRC directly to another
computer, terminal, or terminal server, you must first configure one of the
integrated serial ports on the managed server.
1. In the System Configuration Utility, move the selector to Integrated
Interfaces in Step 3: View or Edit details. Highlight the serial port that
will be connected to the external device. Either serial port can be used
with Integrated Remote Console.
2. Select the desired COM port resource setting. The recommended
settings are COM1 for Serial (A) or COM2 for Serial (B).
3. Check the interrupt setting for the desired integrated serial port by
selecting Edit Resources (F6) when the COM port selection is
highlighted. Make sure that the configured interrupt setting is “edge”
triggered.
