TN_EE-BA-e-1410 5

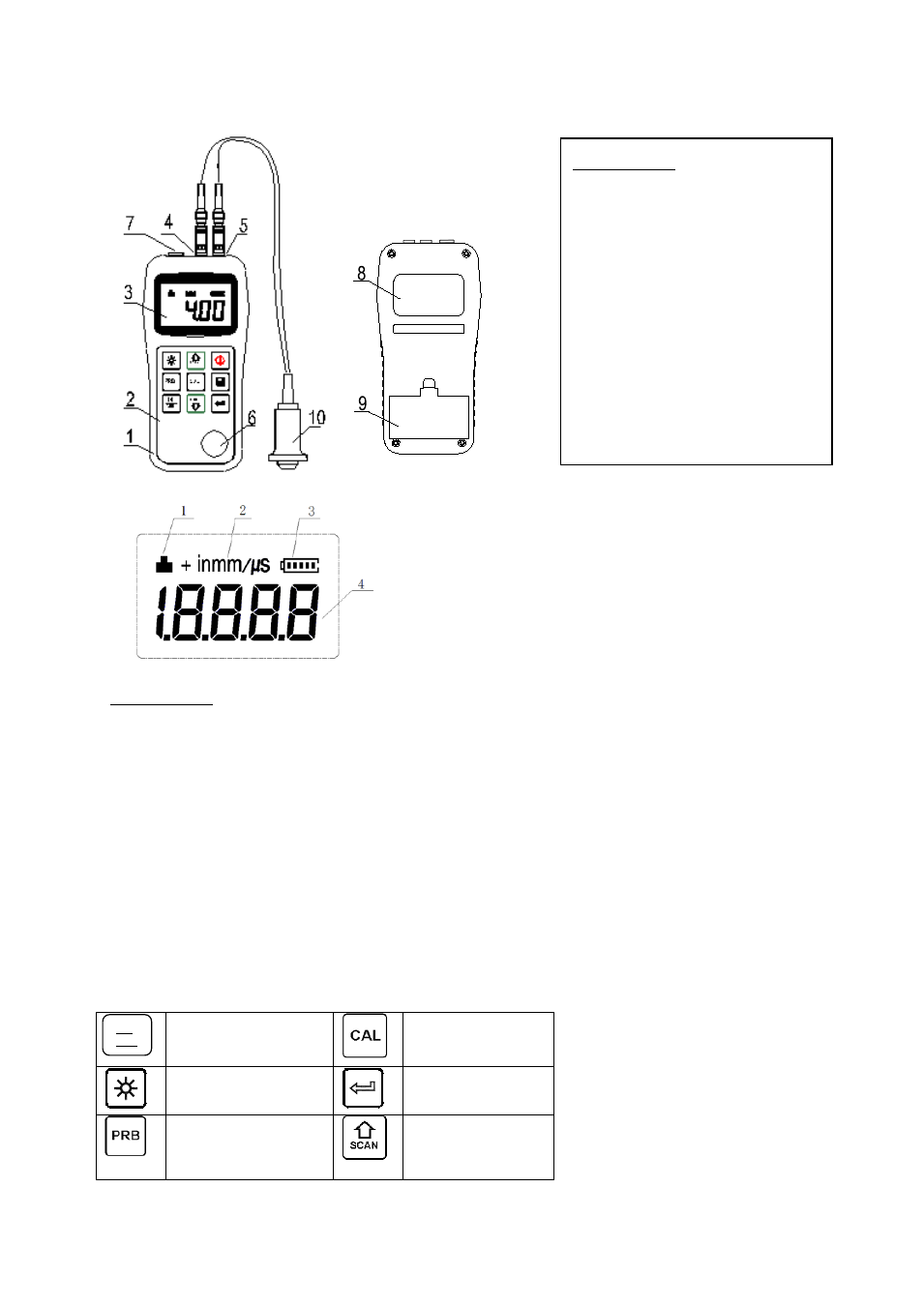

2 Keypad & Screen
1. 2.1 Main Screen
Explanation:
1. Coupling Status: Indicates the coupling status. While the gauge is taking a
measurement, the coupling status should be on. If it is not on or not stable, the
gauge is having difficulties in achieving a stable measurement, and the thick-
ness value displayed will most likely be erroneous.
2. Unit: Current unit system. “mm” or “in” for thickness value. “m/s” or “in/
μs” for
sound velocity.
3. Battery Information: Displays the rest capacity of the battery.
4. Information Display: Displays the measured thickness value, the sound
velocity and shows hints of current operation.
2.1 Keypad Definitions
ON
OFF Turn the instru-
ment on/off Sound velocity
calibration
Turn on/off the EL
backlight Enter
Probe-Zero
operation Plus;
Turn on/off
Scan mode
POWER: 2 X 1.5V
SN:
ULTRASONIC
THICKNESS GAUGE
Explanation:
1 The main body
2 Keypad
3 LCD display
4 Pulse socket
5 Receiver socket
6 Sensor zero disc
7 Communication port
8 Label
9 Battery cover
10 Measurement head
ON
OFF
