UNIT
ELECTRICAL
CHARACTERISTICS
V-Ph-Hz
UNIT WEIGHT CENTER OF GRAVITY mm (in.)
Lb Kg X Y Z
50ZH060
208/230-1-60, 208/230-3-60,
460-3-60
368 167 356 (14.00) 508 (20.00) 406 (16.00)
REQUIRED CLEARANCES TO COMBUSTIBLE MAT’L
Millimeters (in.)
Top of Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
Bottom of Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
Side of Unit with Duct Openings . . . . . . . . . . . . . . . . . . . . . . 0
Side of Unit Opposite Duct Openings . . . . . . . . . . . . . . . . . . . 0
NEC REQUIRED CLEARANCES
Millimeters (in.)
Between Units, Power Entry Side . . . . . . . . . . . . . . . . . 1066.8 (42.00)
Unit and Ungrounded Surfaces, Power Entry Side . . . . . . . 914.0 (36.00)
Unit and Block or Concrete Walls and Other Grounded
Surfaces, Power Entry Side . . . . . . . . . . . . . . . . . . . . 1066.8 (42.00)
REQUIRED CLEARANCES FOR SERVICING
Millimeters (in.)
Top of unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 914.0 (36.00)
Side of Unit Opposite Duct Openings . . . . . . . . . . . . . . . . 762.0 (30.00)
Side of Unit with Power Entry
. . . . . . . . . . . . . . . . . . . . 762.0 (30.00)
(Except for NEC Requirements)
LEGEND
NEC — National Electrical Code
NOTES:
1. Clearances must be maintained to prevent recirculation of air from outdoor-
fan discharge. A removable fence or barricade requires no clearance.
2. Dimensions are in millimeters. Dimensions in [ ] are in inches.
3. is the center of gravity.

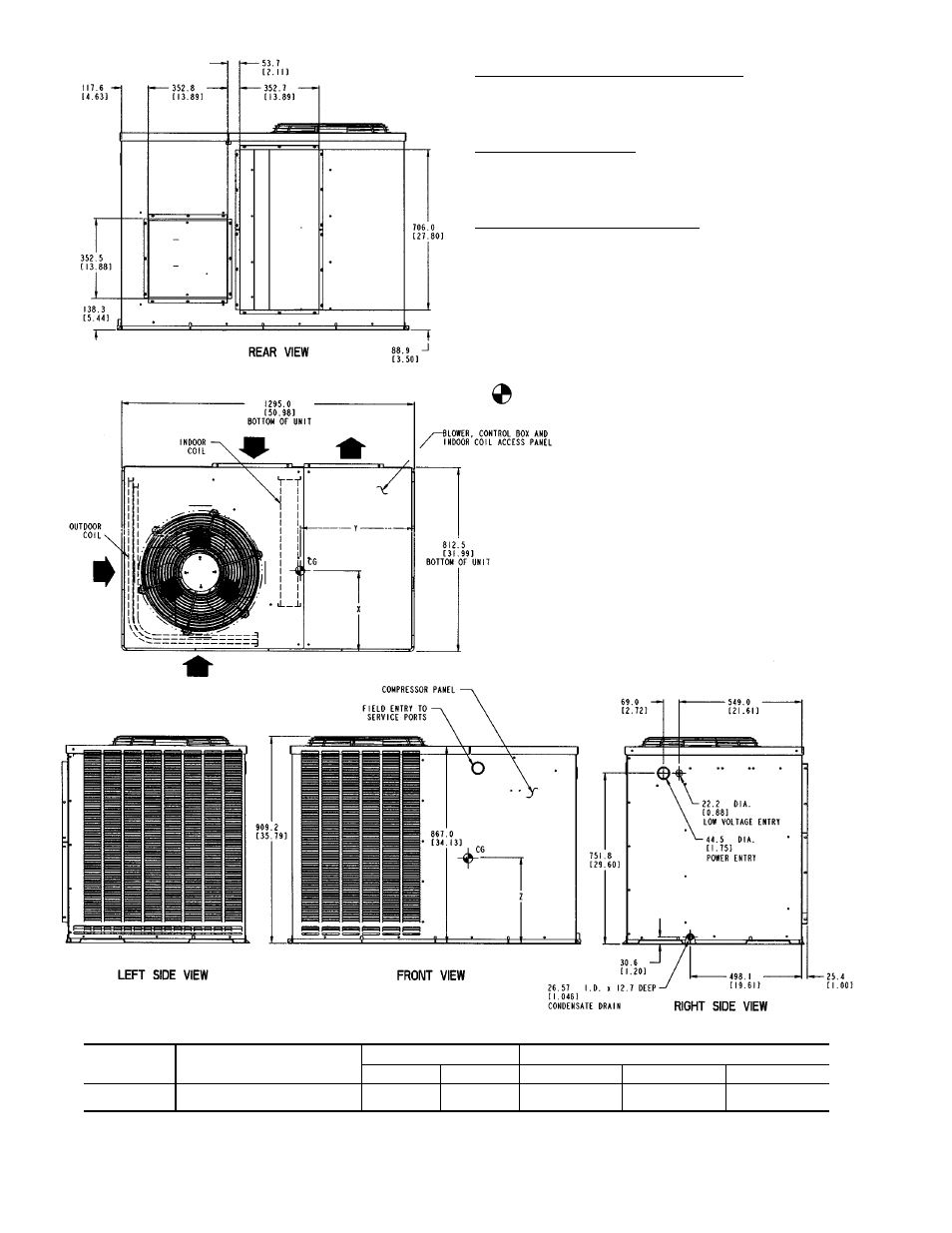

Fig. 4 — Base Unit Dimensions, 50ZH060
