UNIT
ELECTRICAL
CHARACTERISTICS
V-Ph-Hz
UNIT WEIGHT CENTER OF GRAVITY mm (in.)
Lb Kg X Y Z
50ZH024 208/230-1-60 232 106 356 (14.0) 483 (19.0) 305 (12.0)
50ZH030 208/230-1-60 254 116 356 (14.0) 483 (19.0) 305 (12.0)
REQUIRED CLEARANCES TO COMBUSTIBLE MAT’L
Millimeters (in.)
Top of Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
Duct Side of Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
Side Opposite Ducts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
Bottom of Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
NEC REQUIRED CLEARANCES
Millimeters (in.)
Between Units, Power Entry Side . . . . . . . . . . . . . . . . . 1066.8 (42.00)
Unit and Ungrounded Surfaces, Power Entry Side . . . . . . . 914.0 (36.00)
Unit and Block or Concrete Walls and Other Grounded
Surfaces, Power Entry Side . . . . . . . . . . . . . . . . . . . . 1066.8 (42.00)
REQUIRED CLEARANCES FOR SERVICING
Millimeters (in.)
Outdoor Coil Access Side . . . . . . . . . . . . . . . . . . . . . . . 762.0 (30.00)
Power Entry Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . 762.0 (30.00)
(Except for NEC Requirements)
Unit Top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 914.0 (36.00)
Side Opposite Ducts . . . . . . . . . . . . . . . . . . . . . . . . . . 762.0 (30.00)
LEGEND
NEC — National Electrical Code
NOTES:
1. Clearances must be maintained to prevent recirculation of air from outdoor-
fan discharge, with the exception of the outdoor coil (914 mm [36 in.]). A
removable fence or barricade requires no clearance.
2. Dimensions are in millimeters. Dimensions in [ ] are in inches.
3. is the center of gravity.

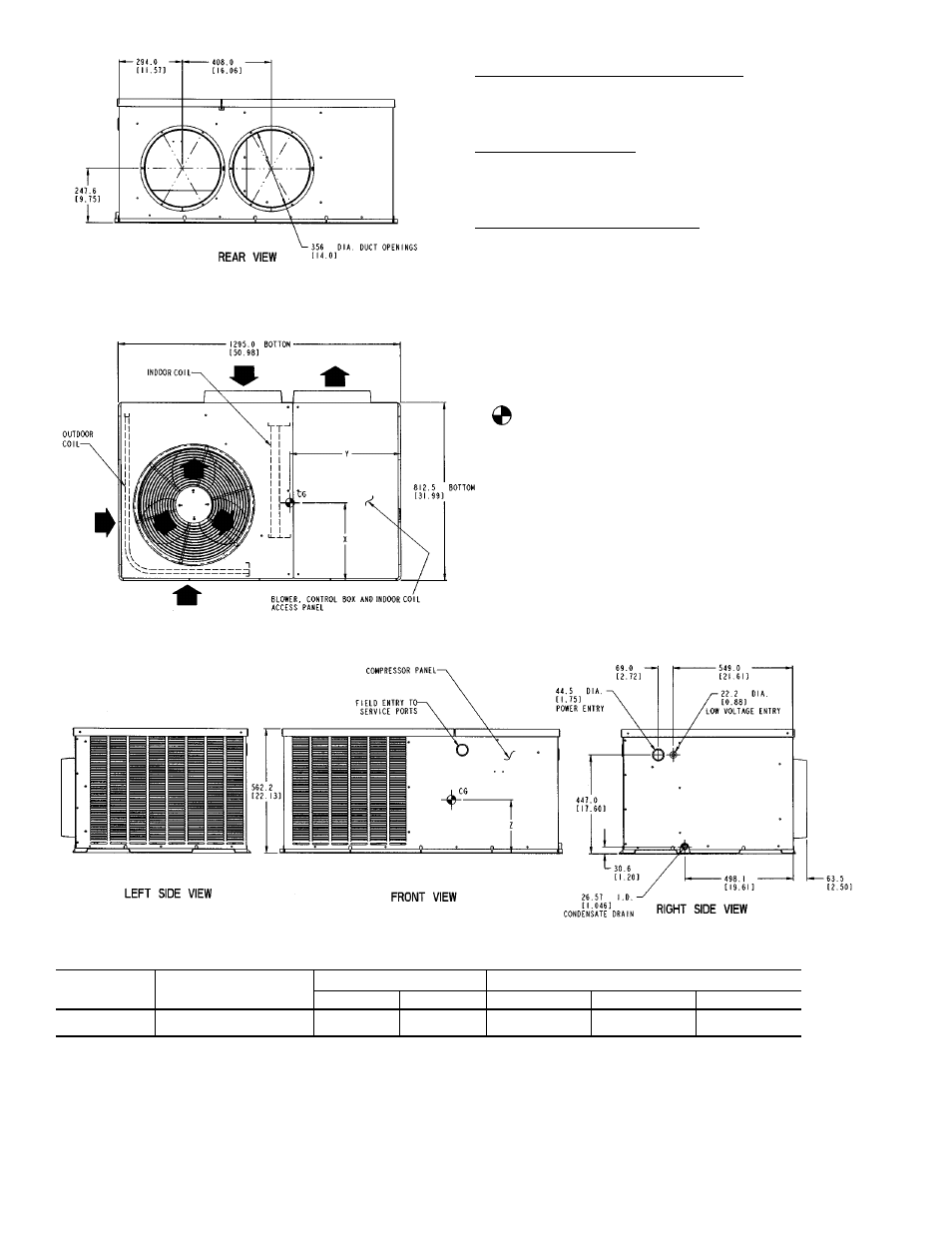

Fig. 2 — Base Unit Dimensions, 50ZH024 and 030
2
