This function provides TCP / UDP Filter setting of the MCR205-1T/1S. Press the
“Apply” button to save the latest configuration of MCR205-1T/1S.

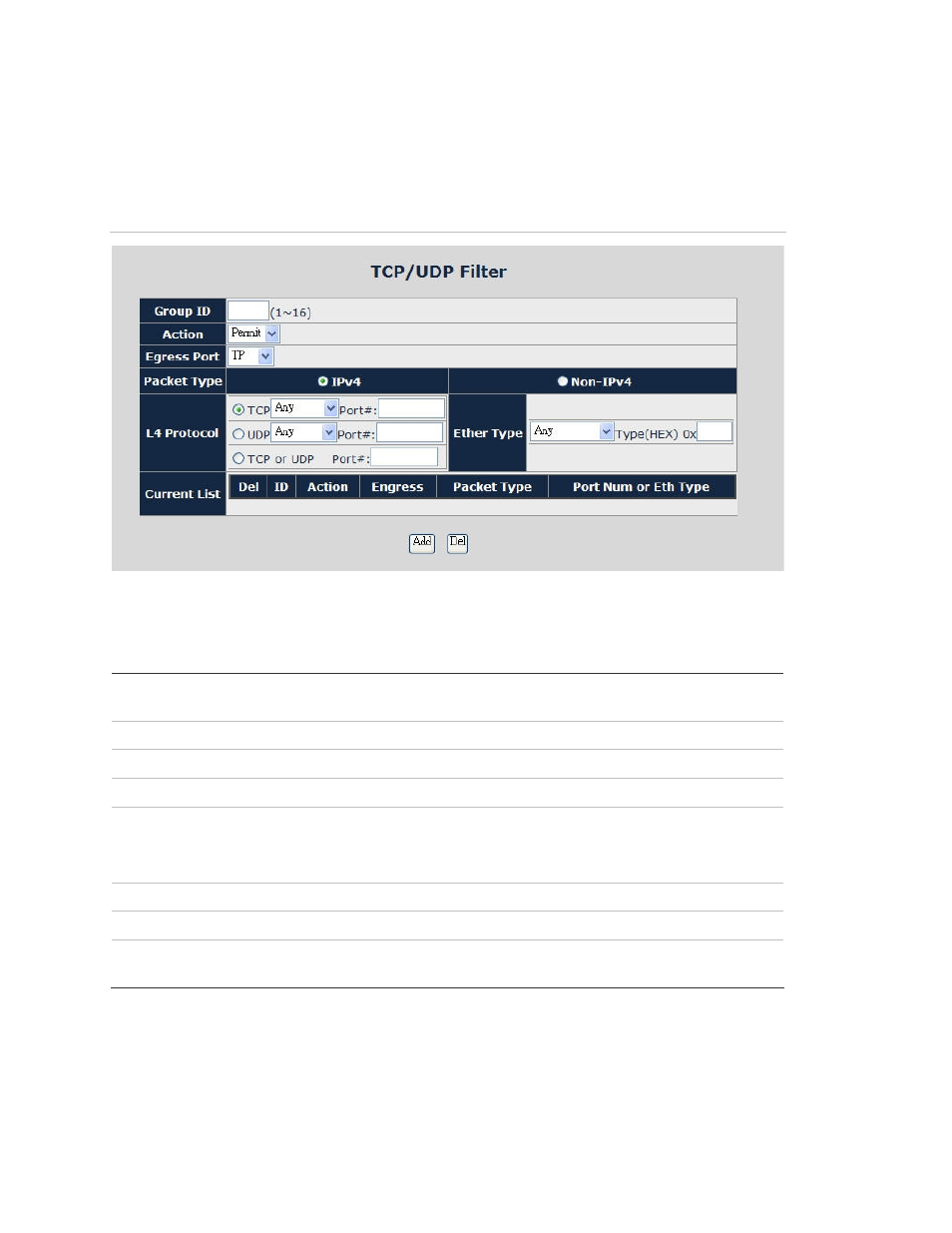

Figure 43: Security setting Web Page screen
The Quality of Service Web page includes the following configurable data:
Group ID Input the group ID for TCP / UDP Filter and the available range is 1 to
16.
Action “Deny” or “Permit” options and default mode is Permit.
Egress Port Choose “TP” or “Fiber” as Egress Port. Default mode is TP.
Packet Type Provides IPv4 and Non-IPv4 protocol for further setting.
L4 Protocol Provides IPv4 and Non-IPv4 protocol for further setting.
IPv4: TCP Any / FTP (21) / HTTP (80), UDP Any / TFTP (69)
Non-IPv4: Any / ARP (0x0806) / IPX (0X8137)
Current List Displays current TCP/UDP Filter Groups.
Add Button Press this button for add new TCP/UDP Filter group into current list.
Del Button Press this button to delete existing TCP/UDP Filter group from current
list.
