38 IFS MCR205-1T/1S User Manual
This function provides Quality of Service setting of MCR205-1T/1S. Press the
“Apply” button to save the current configuration.

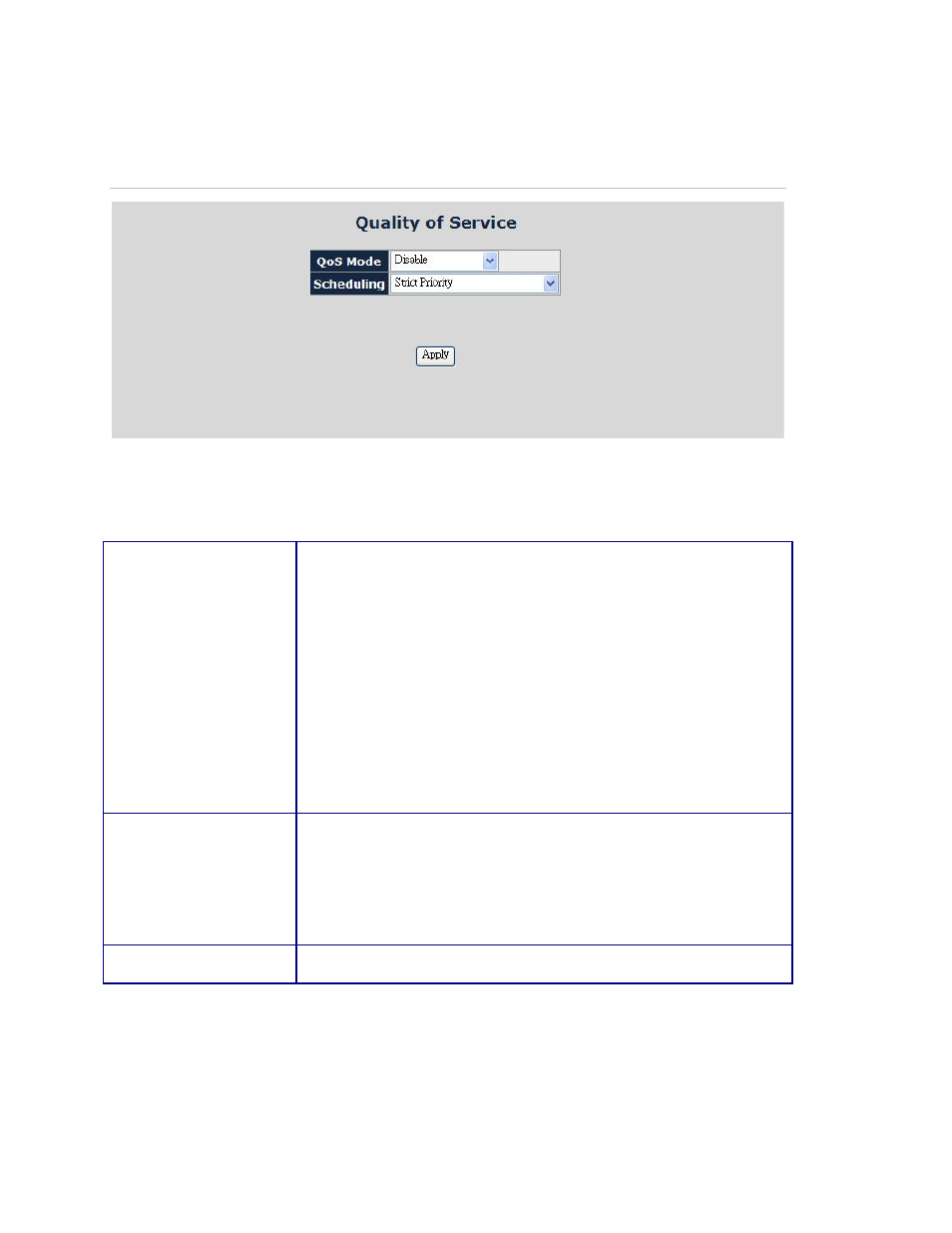

Figure 34: Quality of Service Web Page screen
The Quality of Service Web page includes the following configurable data:
QoS Mode Provides 4 different QoS mode for operation, the available options
are:
Disable
802.1p Tag Priority
The 802.1p Tag Priority field as show in Figure 35.
IP Address Priority
The IP Address Priority field as show in Figure 36.
IP DSCP Priority
The IP DSCP Priority field as show in Figure 37.
Default mode is Disable.
Scheduling Provides two scheduling methods for Quality of Service, the available
options are:
Strict Priority
Weighted Round Robin (16:8:4:1)
Default mode is Strict Priority.
Apply Button Press this button to save current configuration of MCR205-1T/1S.
