Interlogix MCR205-1T/1S User Manual User Manual
Page 53
IFS MCR205-1T/1S User Manual
47

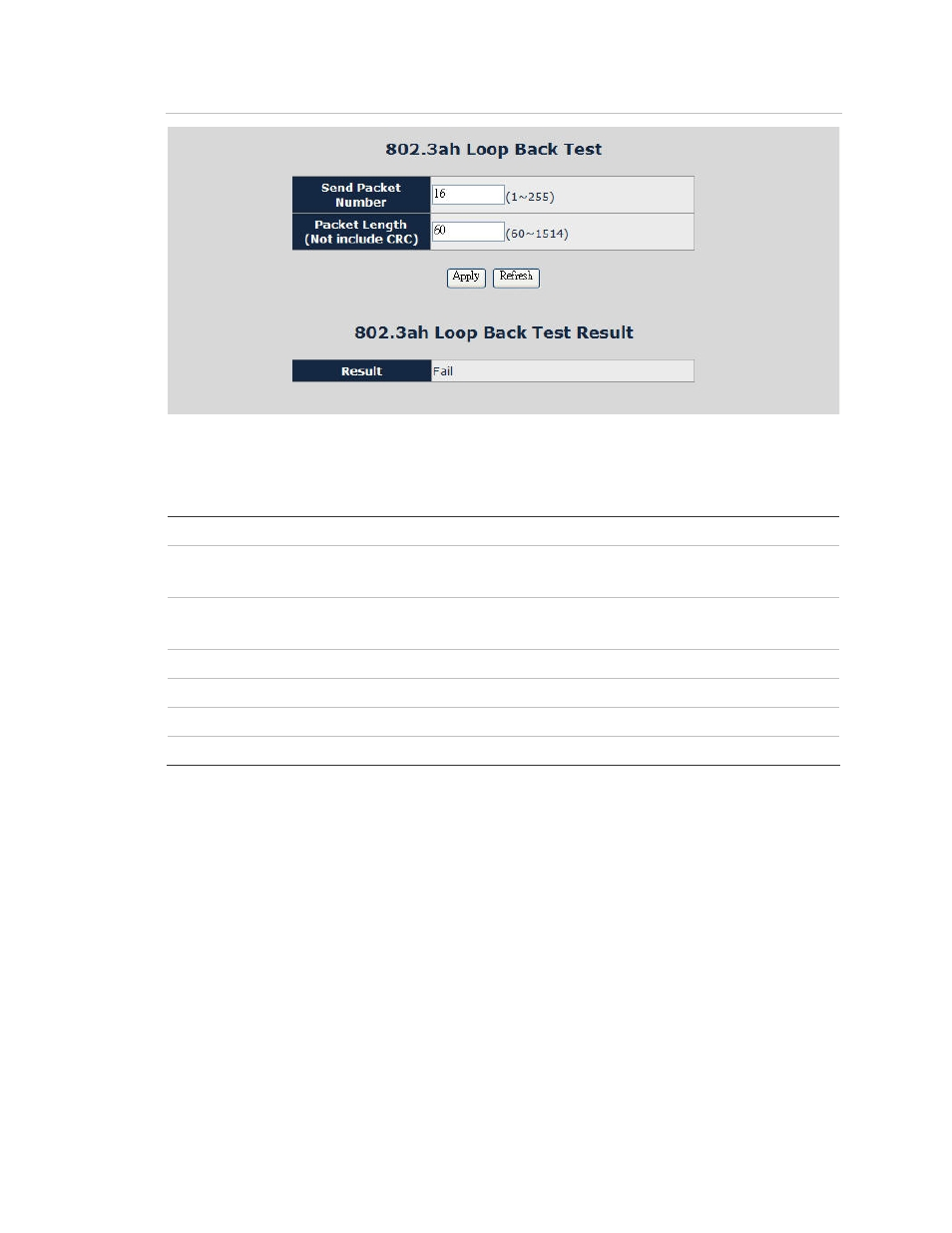

Figure 42: 802.3ah Loop Back Test Web Page screen
The 802.3ah Loop Back Test Web page includes the following configurable data:
802.3ah Loop Back Test
Send Packet Number
Input the number for packet send and the available options is 1 to 255.
Default is 16.
Packet Length
(Not include CRC)
Input the number for Packet Length and the available options is 60 to
1514. Default is 60.
Apply Button
Press this button for save current configuration of MCR205-1T/1S.
Refresh Button
Press “Refresh” button to refresh current status.
802.3ah Loop Back Test Result
Result
Displays the 802.3ah Loop Back Test Result. Fail or Pass.
Note:
The 802.3ah function requires a managed device that supports 802.3ah
function.
Please use the IFS MCR205-1T/1S as the Remote device.
